INFOSEC E 4 - 18 Appendix 1: Parallel Connection System; Parallel System Wiring Diagram

INFOSEC UPS SYSTEM - 4, rue de la Rigotière – 44700 Orvault – FRANCE - www.infosec.fr
Hot Line : tel : + 33 (0)2 40 76 15 82 - fax : + 33 (0)2 40 94 29 51 - hotline@infosec.fr - 07 05 04 205 04
７７

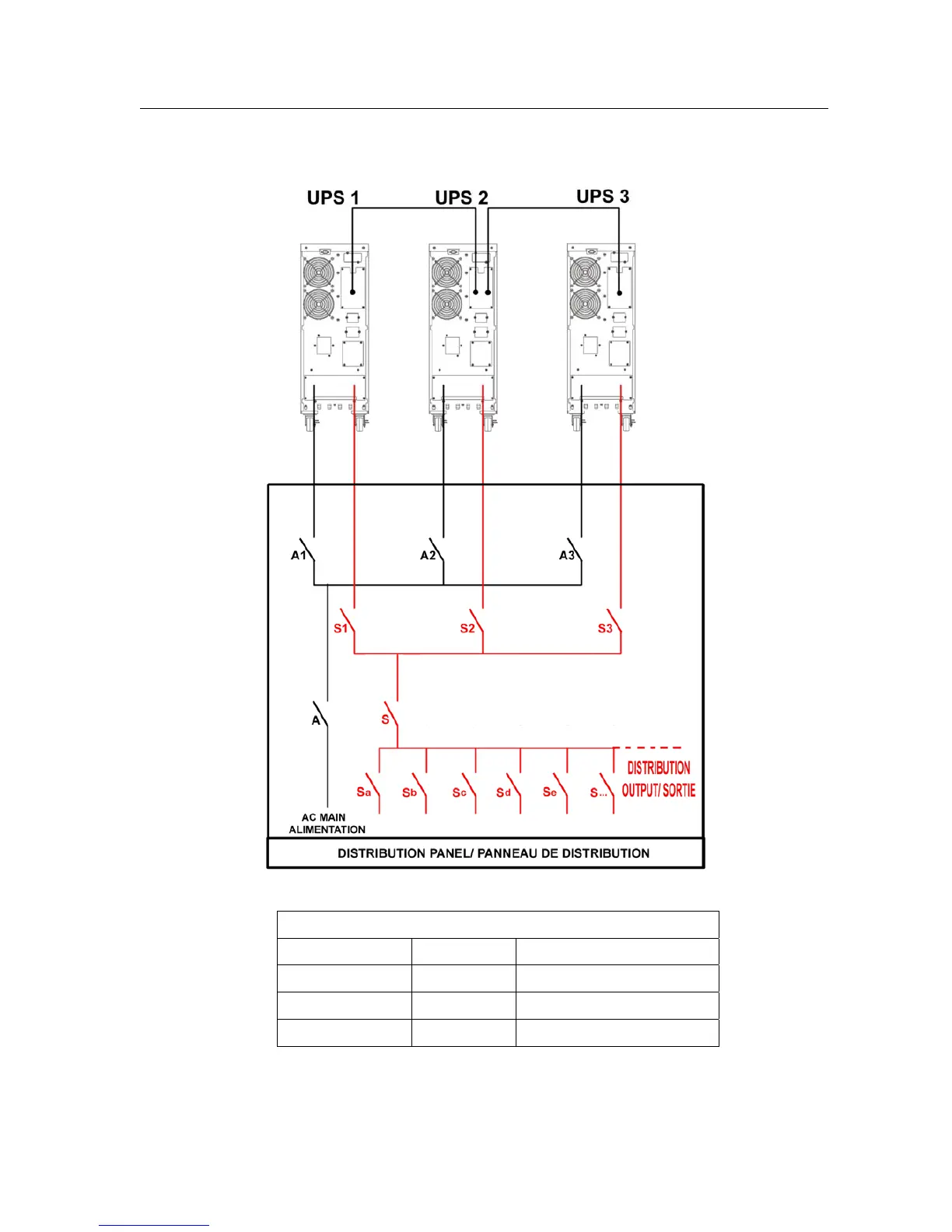

18 Appendix 1- Connection in parallel system
Template Breaker
A / S A1-A2-A3 / S1-S2-S3
E
4
5000
2X80A 2X32A
E
4
6000
2X100A 2X40A
E
4
10000
2X175A 2X63A
