3 PRESENTATION
3.1 Views.
3.1.1 Equipment.

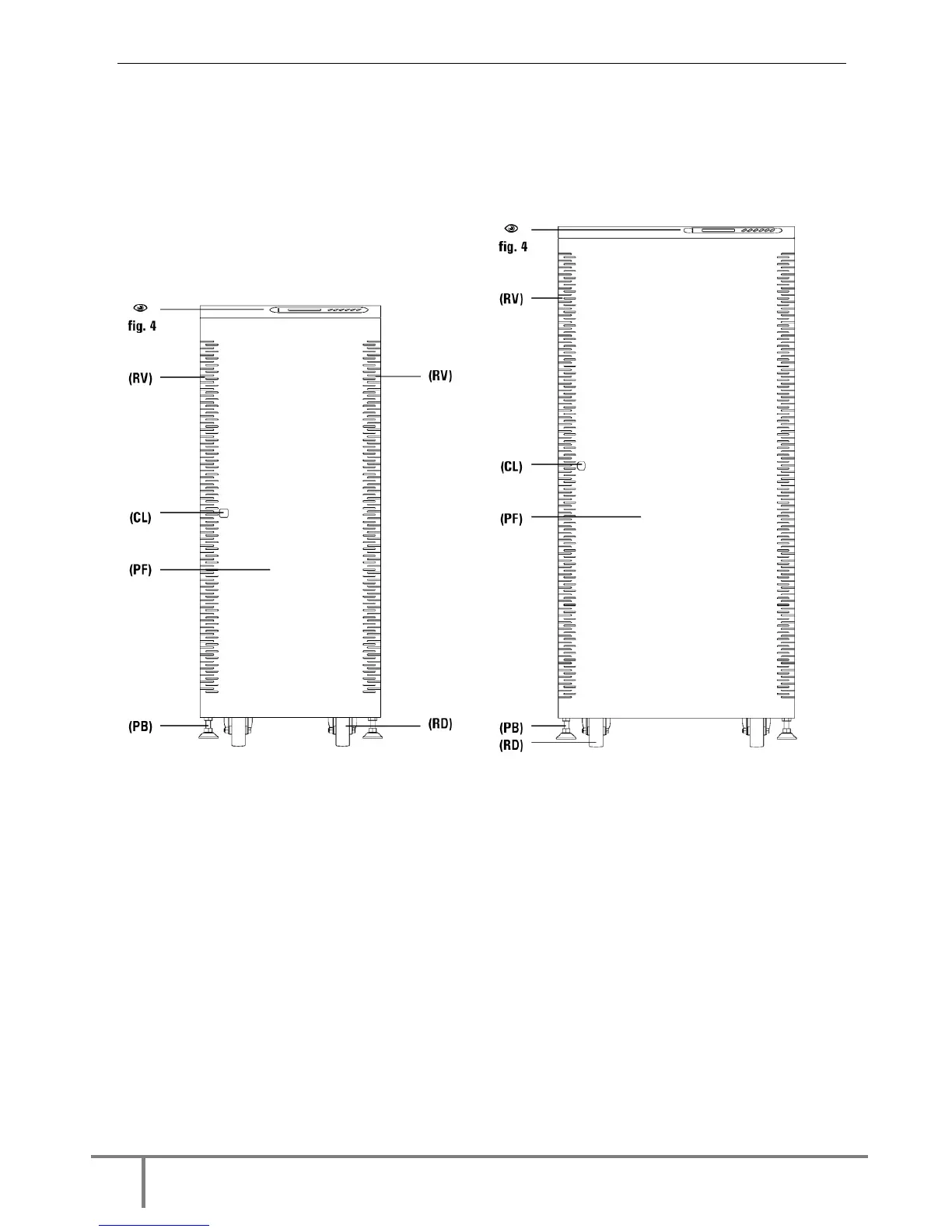

Fig.1.
Cabinet front view for UPS devices up to 20kVA with front door
closed.
Fig.2.
Cabinet front view for UPS devices from 30 to 80kVA with front door
closed.
