3.10.5 Activate an output in response to an event

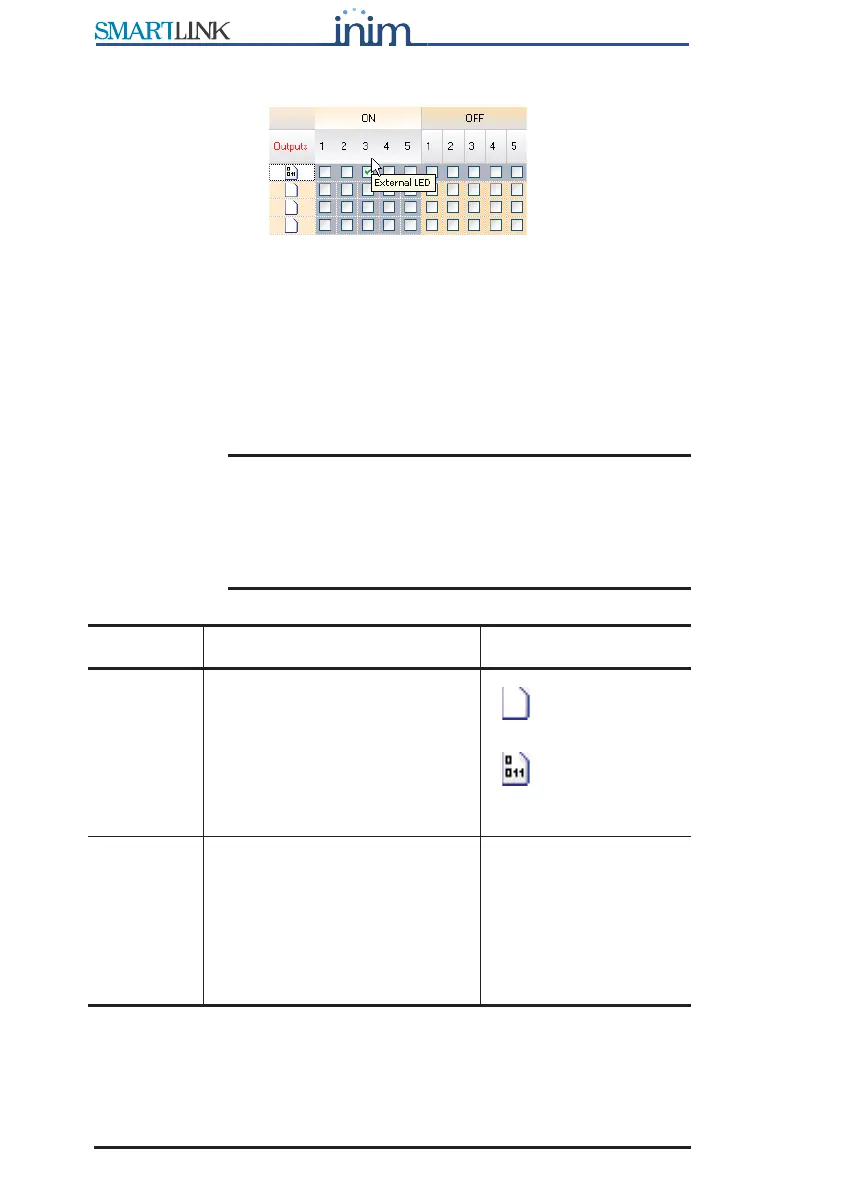

Figure 12 - Events table - Outputs
Each event can activate/deactivate a pulse or bistable output.
To allow this, the outputs must be set up beforehand as per the instructions
in paragraph 3.7 Programming the Inputs and Outputs — IN&OUT. In this
way, the output description will appear in the selectable Outputs list.
For example, if an event occurs on an input connected to flood detectors, it
will be possible to cut off the water supply at the mains.
Attention: Bistable outputs (activated by events) do not
deactivate automatically when the event clears. You
must program deactivation by selecting the
respective 'restore' event. Or use the Simplified
management option. See paragraph 3.7
Programming the Inputs and Outputs — IN&OUT.
Parameter Description Note
Outputs Folder containing the output
activation parameters. Double
click to open: columns
containing the successive
parameters will appear. Double
click to close.
=no parameter
has been set
=some
parameters have been
set.
ON Check boxes corresponding to
the Inputs/Outputs configured in
the Outputs table. If selected,
they will activate the respective
output. The output description
appears when you mouse over
the respective number on the
tooltip bar.
If the output is a pulse
output, activation will
change its status for the
set time only.
