Revision 4.02 June. 2000 13
POS
NEG
A
B
SPR
SPR
TAM
TAM
CONTROL
MODULE
EXPANDER
MODULE
- LAN “+ve”
wired to
“SPR” (Spare).
1 or 2 DOOR
ACCESS
MODULE
- Powered
from LAN.
EXPANDER
MODULE
- LAN +ve
wired to
“SPR” (Spare).
- “POS” used
as LAN +ve
supply source.
LAN B
LAN A
GND
+VE
X01
X02
X03/Z01
X04/Z02
TAMPER
GND
EXT PWR
SPARE
B
A
GND
+VE
POS
NEG
A
B
SPR
SPR
TAM
TAM
EXTERNAL
POWER
SUPPLY
+12V
-VE
1 or 2 DOOR
ACCESS
MODULE
- Powered
from external
Power supply
(LAN “+ve”
connected to
“SPARE”)
ELITE LCD
TERMINAL
·
¸
¹
º

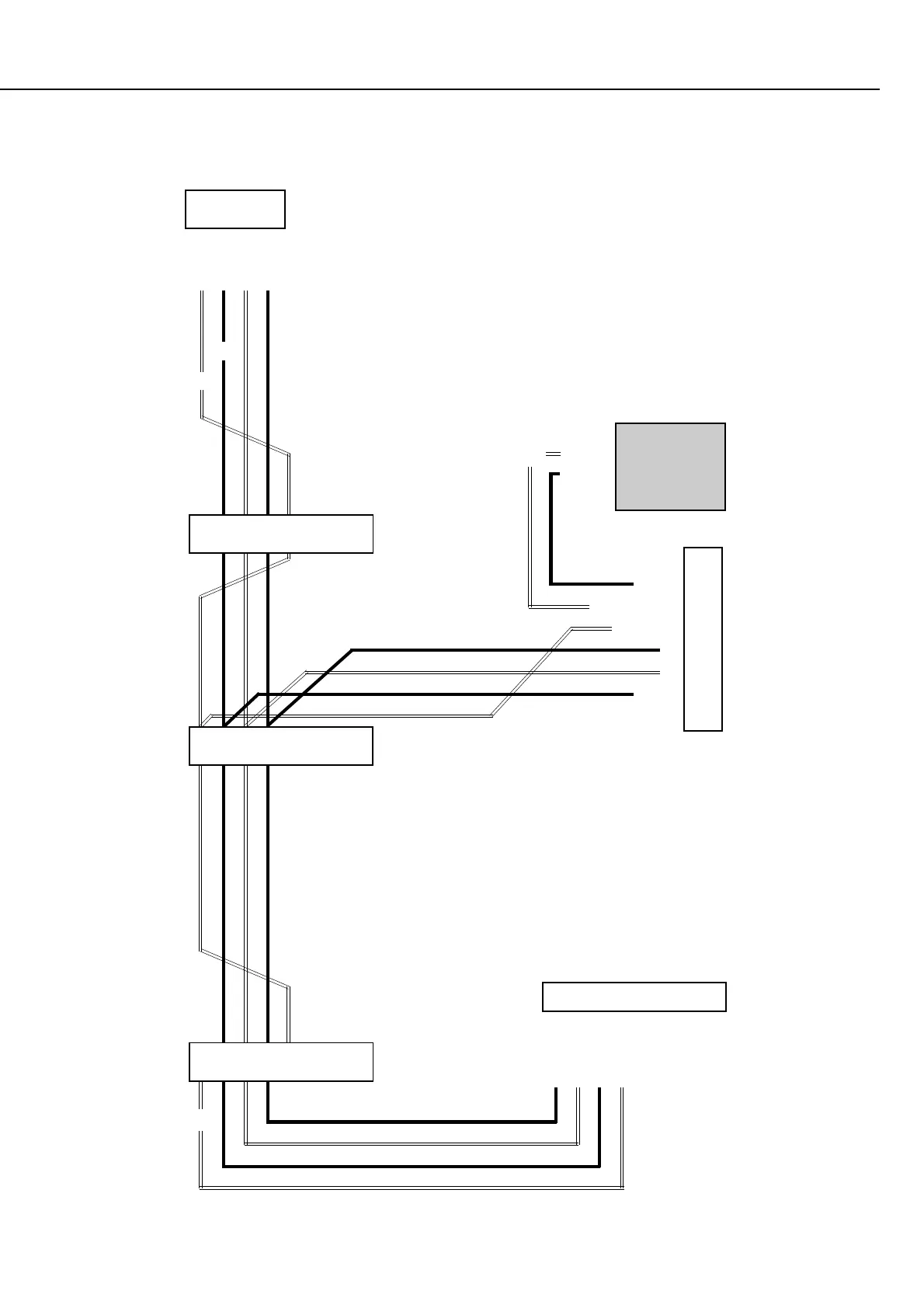

Connecting Modules to the LAN.
»
º
¹
POS
NEG
A
B
+VE
GND
A
B
SPARE
EXT PWR
GND
TAMPR
