Inner Range Inception Security Controller Installation Manual. Rev. 4.0
© 2016 - 2020. Inner Range Pty Ltd. 16 www.innerrange.com
USB Port.
Inception Wireless Adapter
An optional Inception Wireless Adapter can be purchased to provide a convenient wireless
connection option with two modes of operation:
• In Access Point mode, the Wi-Fi adapter can act as a wireless access point allowing
installers to establish a temporary wireless connection directly to the Inception controller.
• In Client mode the Wi-Fi adapter can provide Inception with a permanent connection to an
existing Wi-Fi network. A magnetic antenna base & extension cable that can be mounted
on the outside of the enclosure is included for this purpose.
By default, access point mode is enabled to aid with initial connection and maintenance. The
Wireless Adapter is connected to the USB Port. Once connected, wait for the ‘WIFI’ LED to turn
on then you can use your Wi-Fi enabled device to connect to the network.
By default, the name of the Wi-Fi network will be the Inception controller serial number (e.g.
WS001923) with the password “inception”. Open a browser and navigate to the URL
http://inception.local See the Quickstart Guide for more information.
Alarm Communicator
An optional T4000 Multipath-IP Alarm Communicator or other supported 3
rd
party alarm
communicator (depending on your region) may be connected to the USB port.
See the ‘Alarm Reporting’ section of this manual for details.

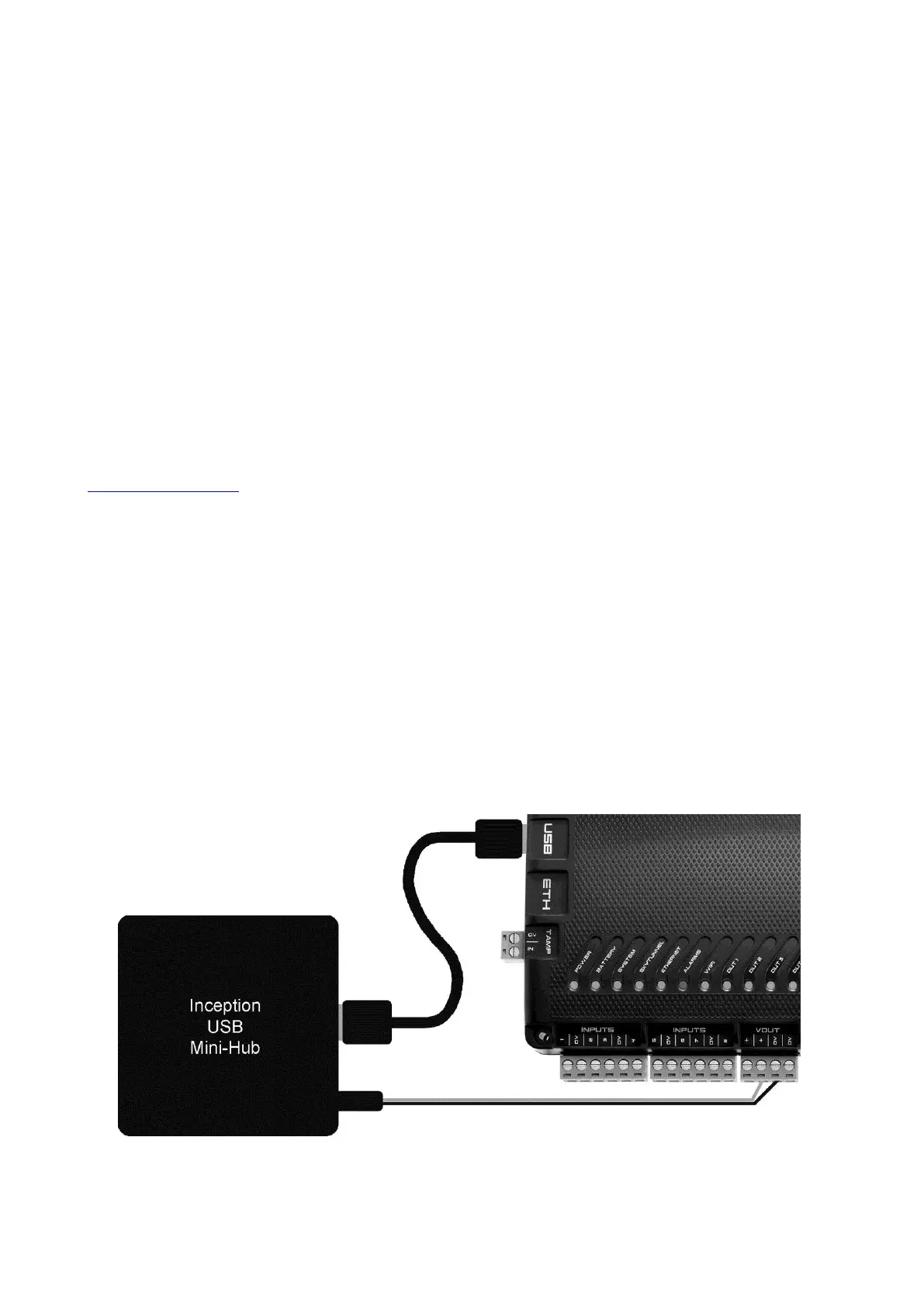

Inception USB Mini-Hub
If you need to connect more than one device to the USB Port, (e.g. Both of the devices listed
above) an Inception LAN Hub may be purchased to provide up to 4 powered USB Ports.
The LAN Hub is powered from the Inception controller ‘VOUT’ or from a separate battery-backed
12V power supply. e.g. Integriti 3A Power Supply. NOTE: If ‘VOUT’ is used, then the same
‘VOUT’ connector should not be used to power any device outside the enclosure.
