Innovative Technology NV9 USB - Bezel Removal and Refitting

NV9 USB Manual Set – Section 1 6
Copyright © Innovative Technology Ltd 2012 GA00550-2
Information
Check website for options.
There are many variants of bezel and cashbox type
available for the NV9 USB validator. Please check the
ITL website (www.innovative-technology.co.uk) for
up to date information on the options available.
The technical drawings which can be found at the end of this section show all the
dimensional information needed to mount the unit.
WARNING!
Do not attempt disassembly
Do not attempt to disassemble the NV9 USB
validator head – trying to do this could cause
personal injury and will damage the unit beyond
repair.

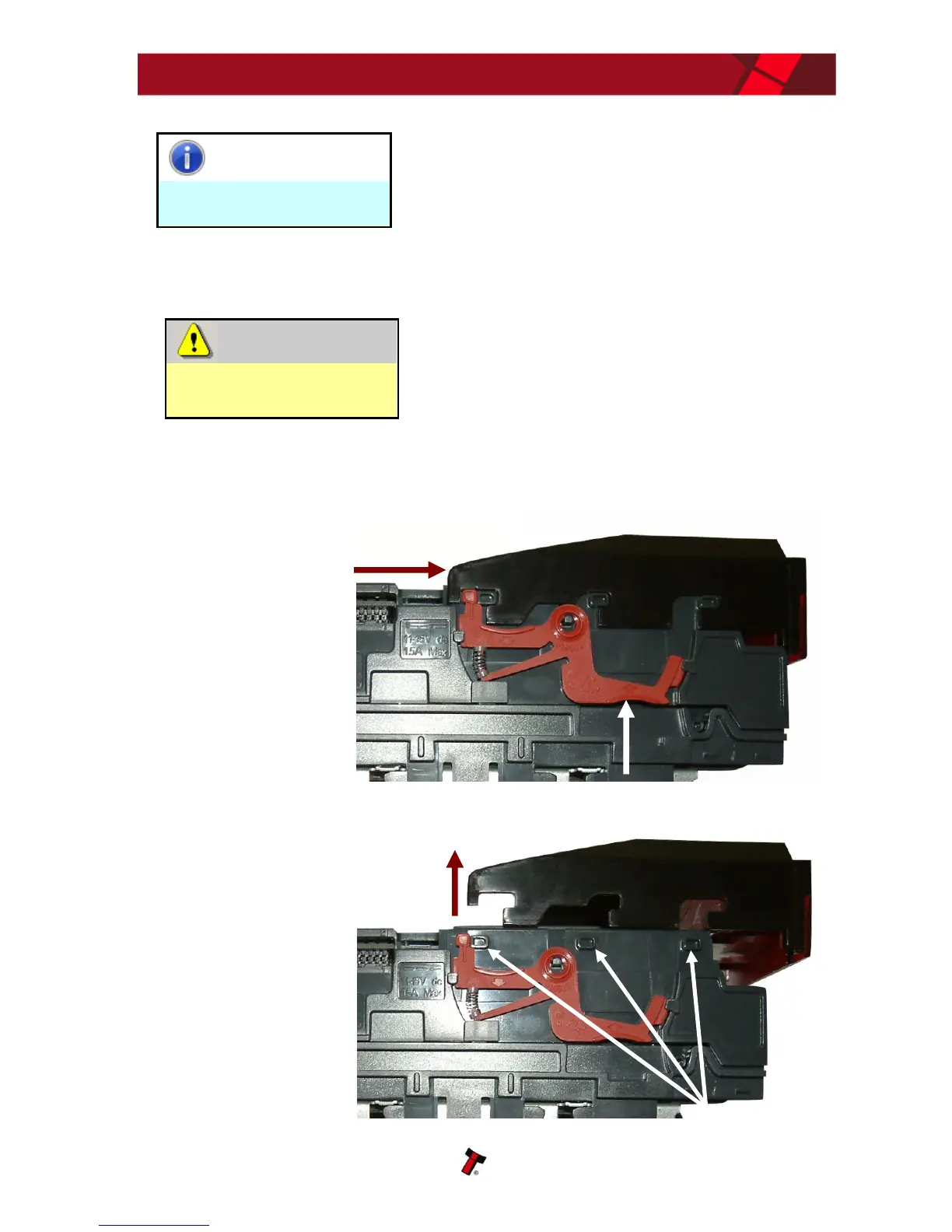

1.2 Bezel Removal and Refitting:
 The bezel is
removed by pushing
the red locking arms
on both sides of the
validator upwards,
and sliding the bezel
away from the
locking arms
 Lift the bezel off
once the bezel has
been slid fully
across and is clear
of the locating pins
a. Push locking arms upwards
b. Slide bezel away from
locking arms
Locating pins
Lift upwards to remove
