Inovance AM600 Series - EtherCAT Bus Connection

-14-
Introduction
Communication
Ports of the CPU
Module
Communication
Protocol
Cable Application Matching Module
CN4 EtherCAT
Cat5e
shielded
twisted
pair
cable
Industrial control network. The maximum
communication rate is 100 Mbit/s.
AM600-RTU-ECT
AM600-RTU-ECTA
AM600-0808ETNE
AM600-1616ETNE
AM600-2HCE
AM600-4PME
USB - Mini USB
PC communication and program download and
debugging
-

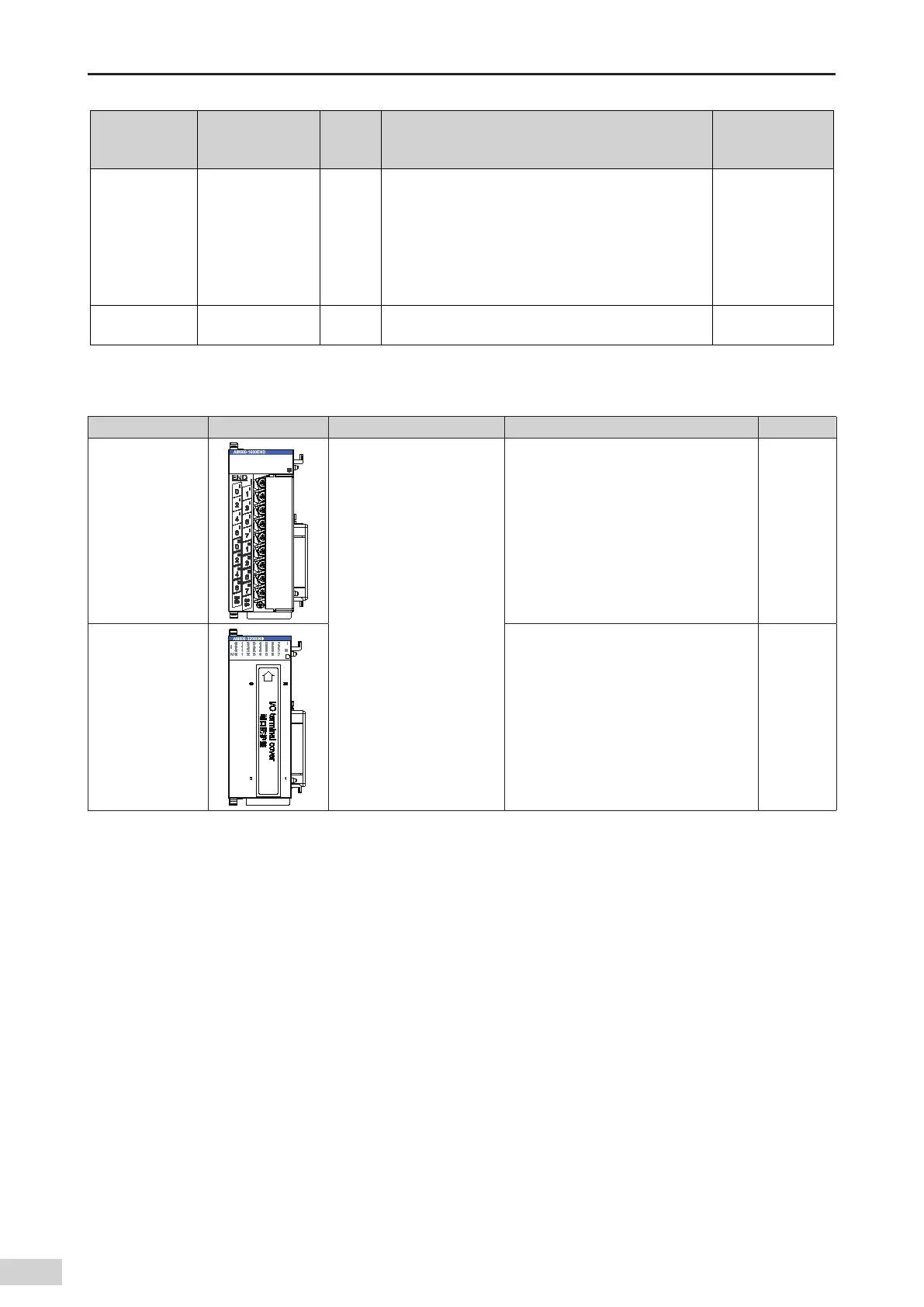

2.1.2 Functions of Local Expansion Modules
Model Appearance Category Description Order Code
AM600-1600END
4 5 6 73210 I
II
0 1 2 3 7654
DI module
16-channel DI module; DC 24 V input;
source/sink
01440005
AM600-3200END
32-channel DI module; DC 24 V input;
source/sink
01440023
