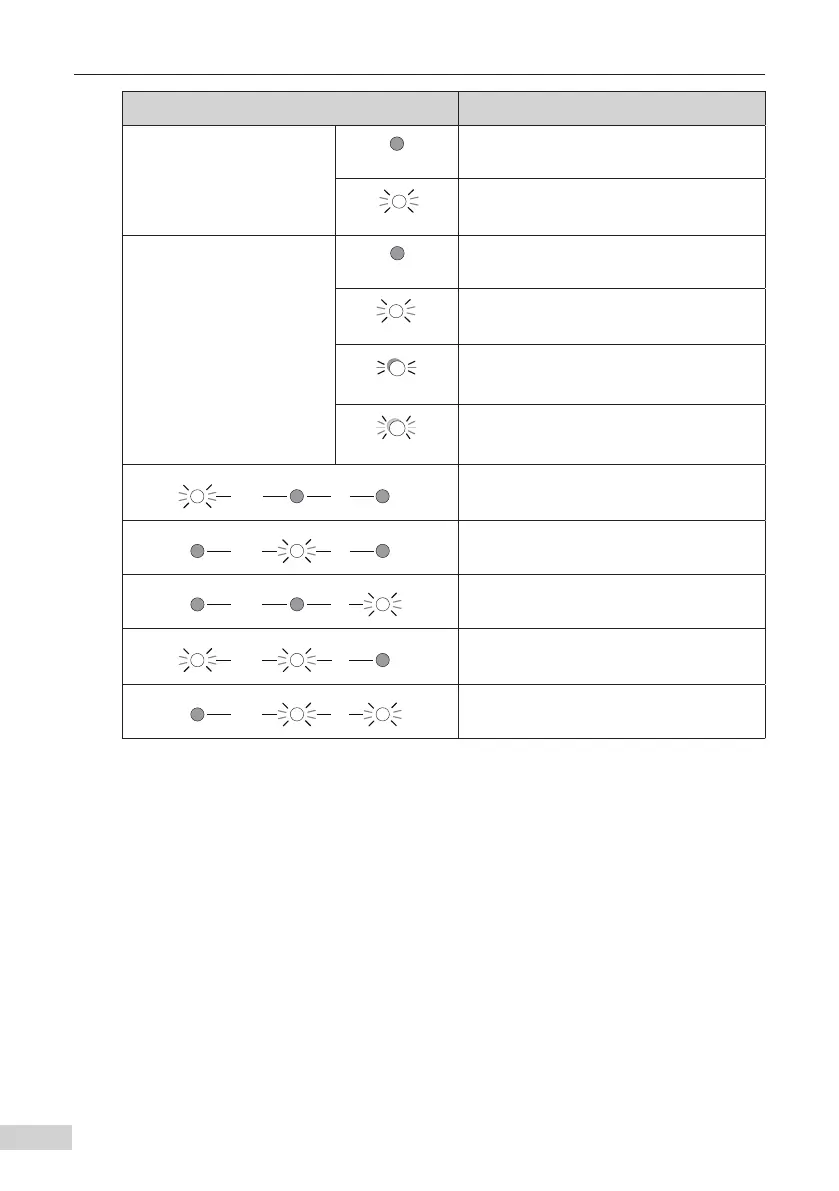

Panel Operations
State Indication
FWD/REV
Forward and reverse
rotation indicators
FWD/ REV
OFF indicates forward motor rotation.
FWD/ REV
ON indicates reverse motor rotation.
TUNE/TC
Auto-tuning, torque control
and fault indicators
TUNE/ TC
OFF indicates that the AC drive is normal.
TUNE / TC
ON indicates the torque control mode.
TUNE
/TC
FLASHING SLOWLY (once a second)
indicates auto-tuning status.
TUNE
/TC
FLASHING QUICKLY (four times a second)
indicates a fault condition.
RPM
%
A VHz
Hz for frequency
RPM
%
A VHz
A for current
RPM
%
A VHz
V for voltage
RPM
%
A V
Hz
RPM for motor speed
RPM
%
A VHz
Percentage
