Maintenance
Installing

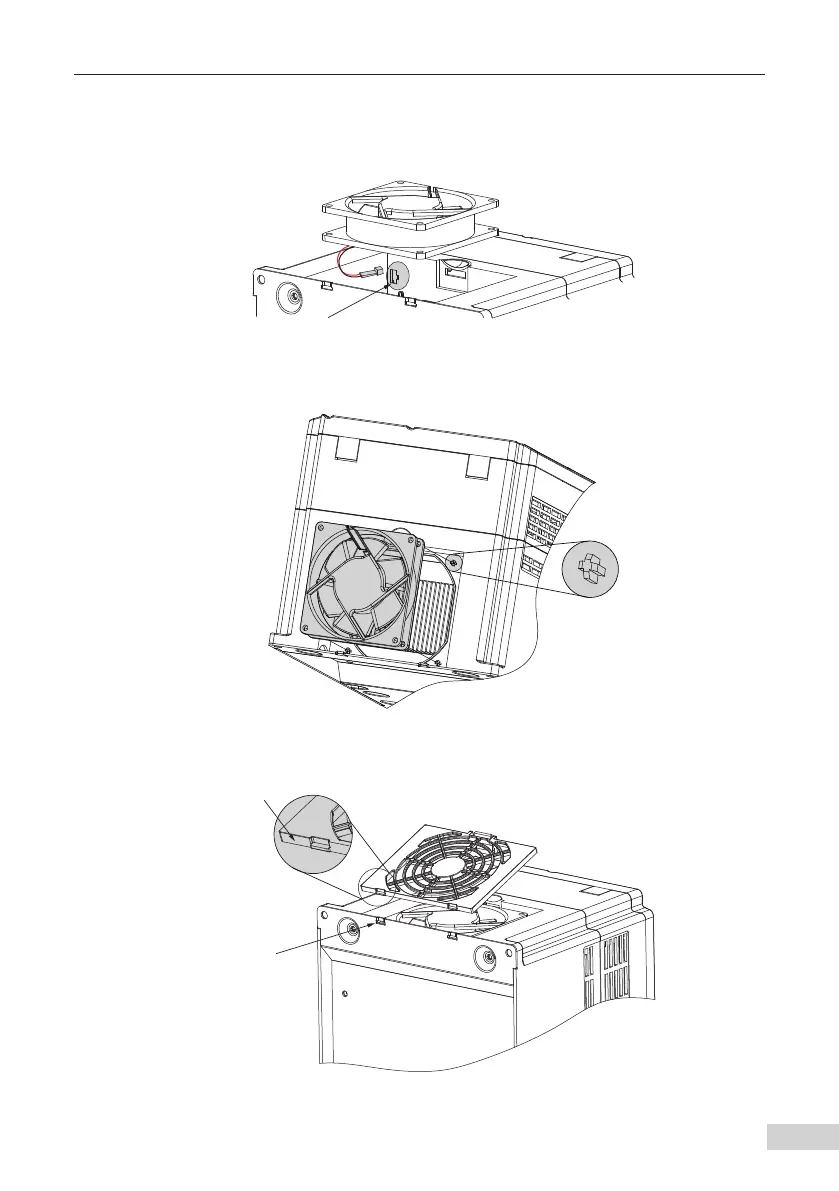

1. Plug in the fan power cable .
Fan power socket
2. Install the fan into the drive and ensure that the mounting pins are aligned.
Mounting
pin x 4
3. Insert the two guide pins into the square holes and then press in the hook.
Guide pin
Square hole
