is displayed; when the storage language register is set to non-zero text, the content of Language
2 is displayed.
3) Report password level
If the Report password level option is checked, the current password level will be displayed in the
associated PLC register. (this software defines the highest level 4 password)
4) Register setting control
If you check to allow register setting control, when the value of the lower eight bits of this register
and the "setting control value" of a certain register are more than 0, the register is in a settable
state. For details, see the section "4.4 Registers" below.
▪ Page attributes
▪ First enter the editing state of the initial page of the system (the default page is 1). The lower left
corner of the interface is the attributes of the current editing page (page 1), each page has

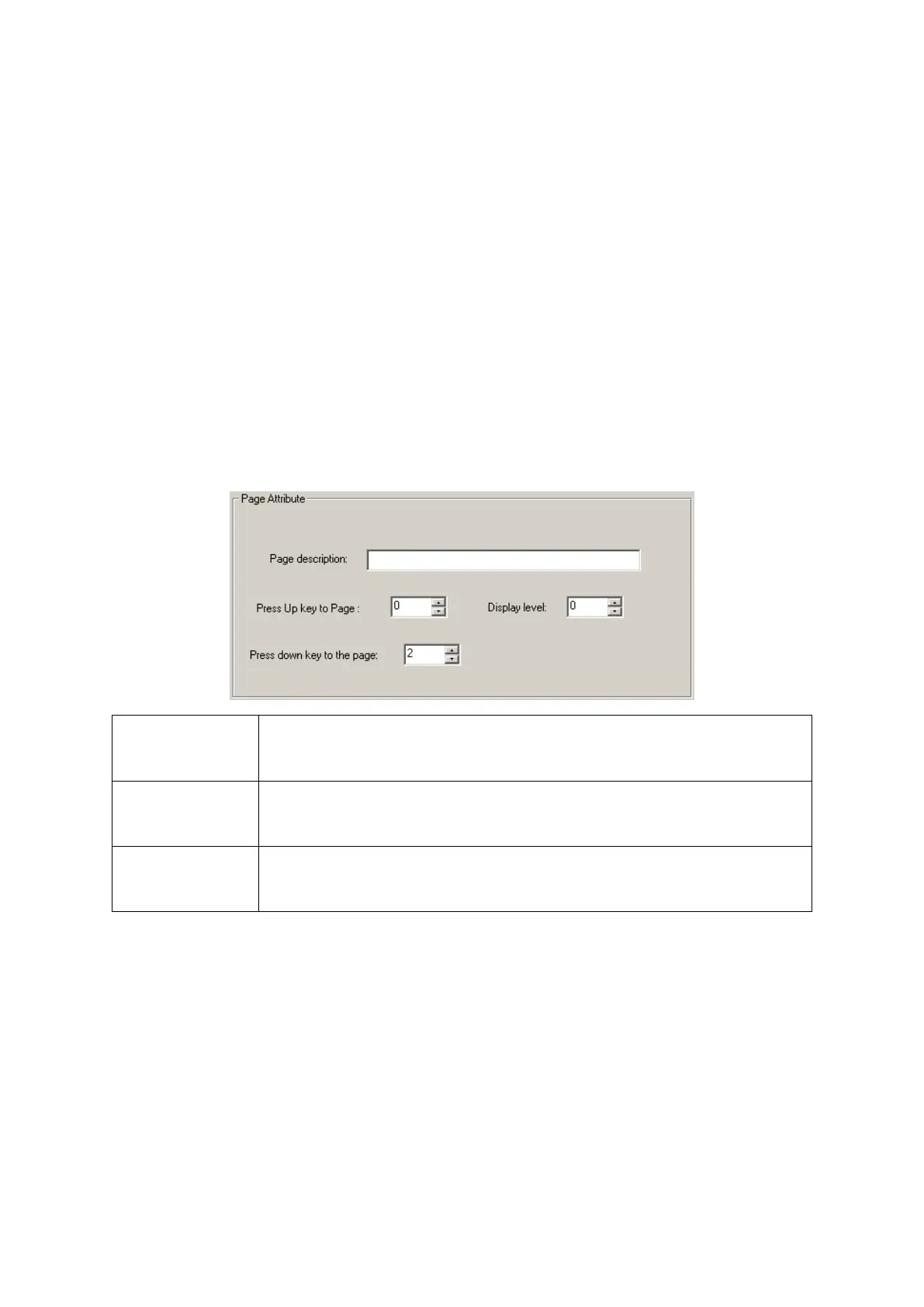

attributes, as shown in the following figure.
Describe the nature of the page, which is convenient for the designer to
manage. It only serves as a reminder and can be omitted. For example,
enter “Main Menu”.
After setting a specific page number, press the up key [▲] on the current
page of the display, and the display will jump to the page pointed to by the
page number.
Press down key
to the page
After setting a specific page number, press the up key [▼] on the current
page of the display, and the display will jump to the page pointed to by the
page number.
When the display is running, pressing [ESC] key, [▲] key or [▼] key is the simplest way to switch
pages. In addition, the page jump can also be realized by setting the function keys.
Note:
▪ If the [▲] key or [▼] key of the current page is set as a function key, the page jump
parameter in this page has no effect.
▪ If the page specified by the [▲] key or [▼] key does not exist, the actual jump page number
will be extended upwards or downwards in sequence until it reaches 0.
▪ If the page contains data setting controls, during the data setting process, the [▲] key or [▼]
key performs the value increase and decrease functions. After exiting the value setting state,
the [▲] key or [▼] key recover the page jump function.
