Options
‑141‑

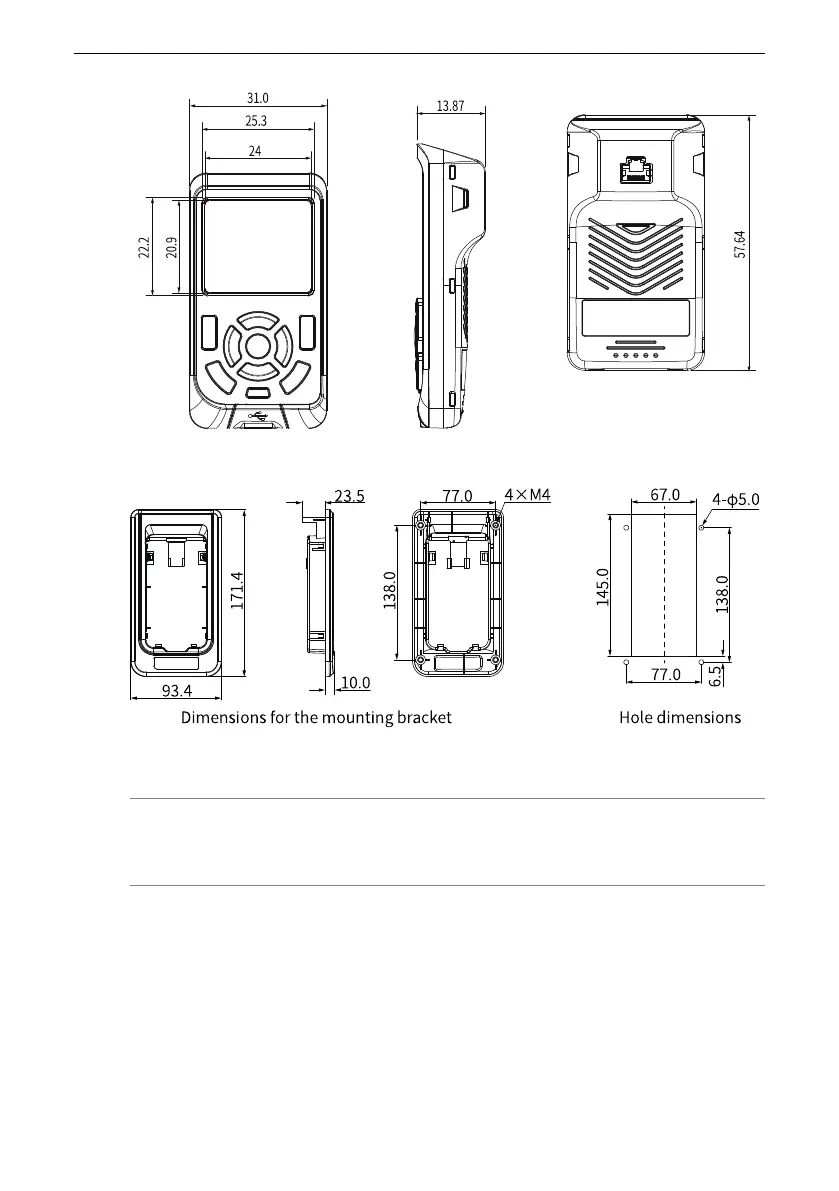

Figure 5‑51 Dimensions of the MDKE‑10 (unit: mm)
Figure 5‑52 Base mounting bracket dimensions and hole sizes (mm) of the MDKE‑10
Note
If the thickness of the door is 1.5 mm, no bolts are required.
