Options
142

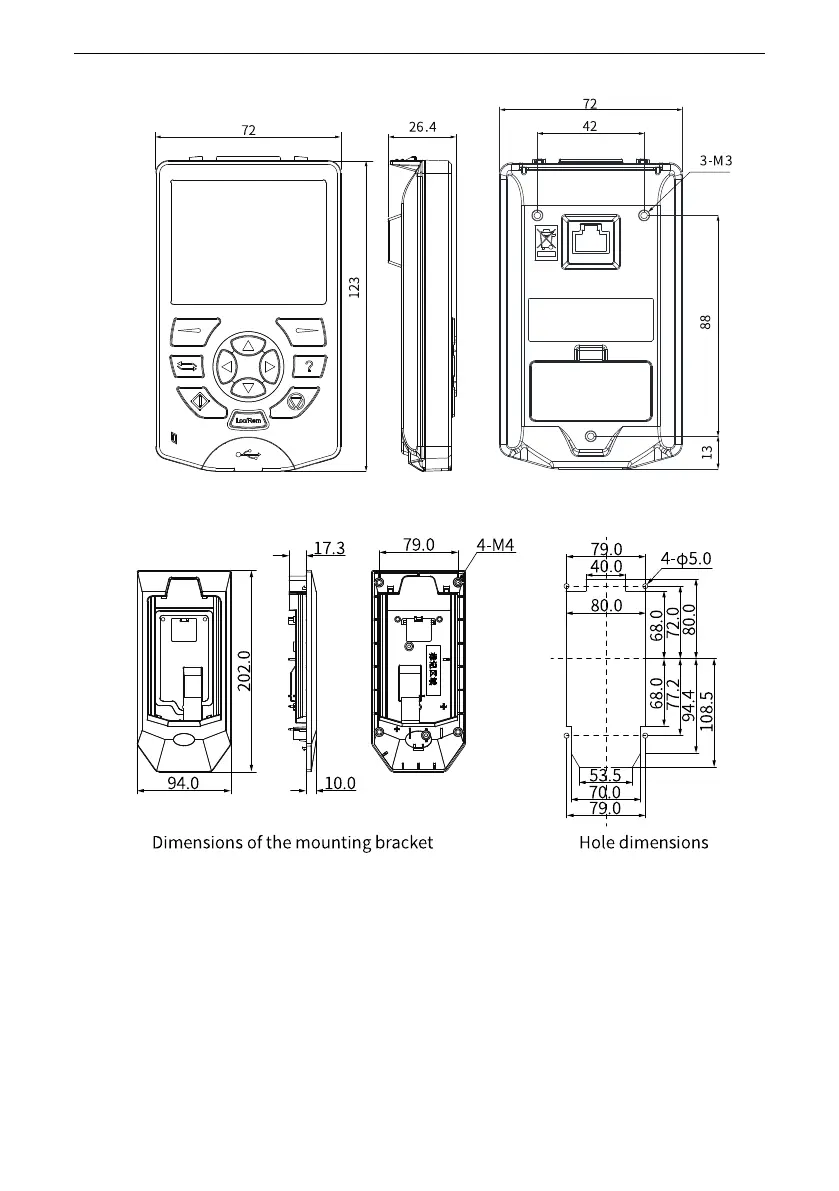

Figure 5‑53 Dimensions of the SOP‑20‑810 (unit: mm)
Figure 5‑54 Base mounting bracket dimensions and hole sizes (mm) of the SOP‑20‑810
5.6 Expansion Card
For details on the expansion cards of the AC drive, see "
5.1 Option List
"
on page 52
.
The following table shows the installation position of the expansion cards. Before
installing these cards, remove the front cover of the AC drive.
