Components
‑24‑
2.3 Components of T7 to T9 Models

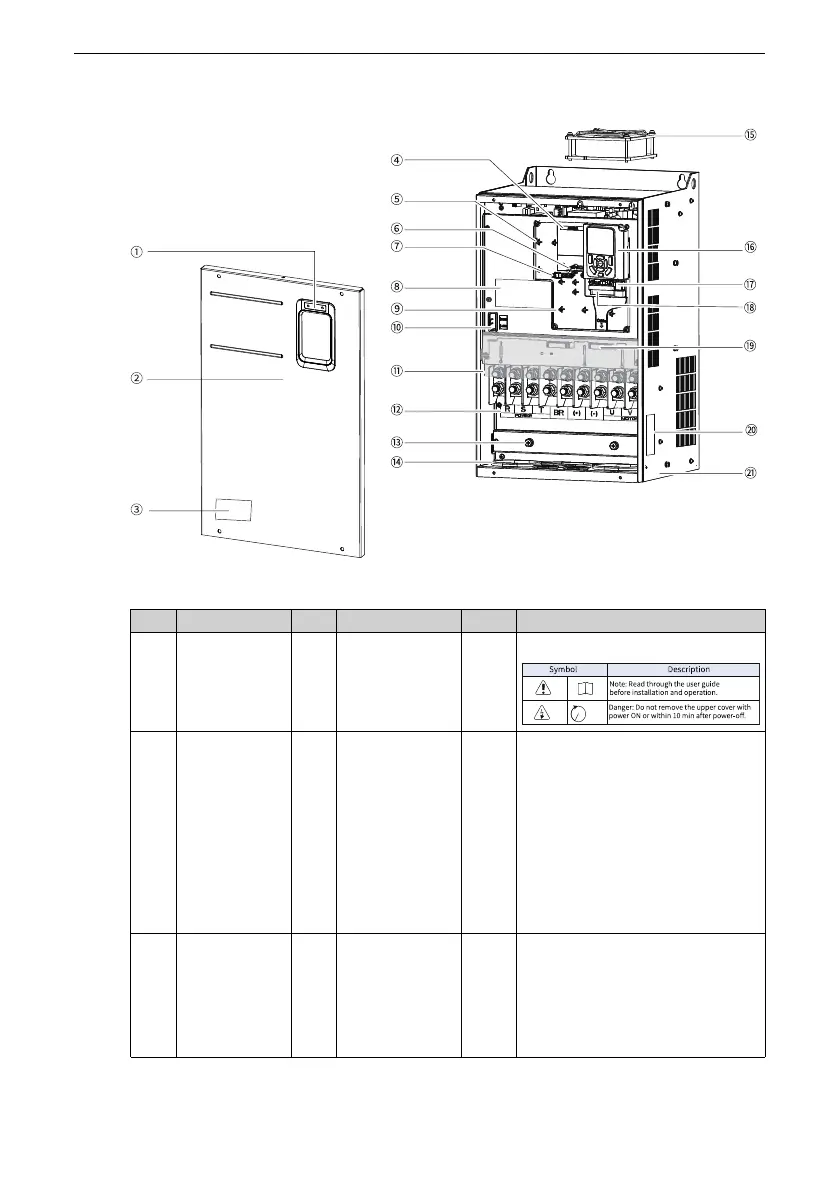

Figure 2‑3 Components of T7 to T9 models
No. Name No. Name No. Name
①
Logo
②
Front cover
③
Mark
④
Equipment
bar code
It allows you
to check the
product code
and model.
The actual
position may
vary with
models.
⑤
Encoder
expansion card
fixing base
⑥
Cable tray and fixing base for the
control board ground cable
Note: Connect the control board
ground cable to the grounding
bar only when the system is
reliably grounded; otherwise,
connect the ground cable to the
fixing hole.
⑦
Grounding
copper busbar
It is used to
ground the PG
card and
control board.
⑧
Wiring
description
⑨
Base for fixing the expansion card
