84
Model D d1 E H K B d2 F L R
Crimping
Tool
GTNR120‑
12
19.8 15.0 22.0 14.0 10.0 28.0 13.0 4.7 60.0 16
RYC‑150
GTNR120‑
16
19.8 15.0 22.0 16.0 10.0 28.0 17.0 4.7 64.0 16
GTNR150‑
12
21.2 16.5 26.0 16.0 11.0 30.0 13.0 4.7 69.0 24
GTNR150‑
16
21.2 16.5 26.0 16.0 11.0 30.0 17.0 4.7 69.0 24
GTNR185‑
16
23.5 18.5 32.0 17.0 12.0 34.0 17.0 5.0 78.0 24
GTNR240‑
16
26.5 21.5 38.0 20.0 14.0 38.0 17.0 5.5 92.0 24
GTNR240‑
20
26.5 21.5 38.0 20.0 14.0 38.0 21.0 5.5 92.0 24

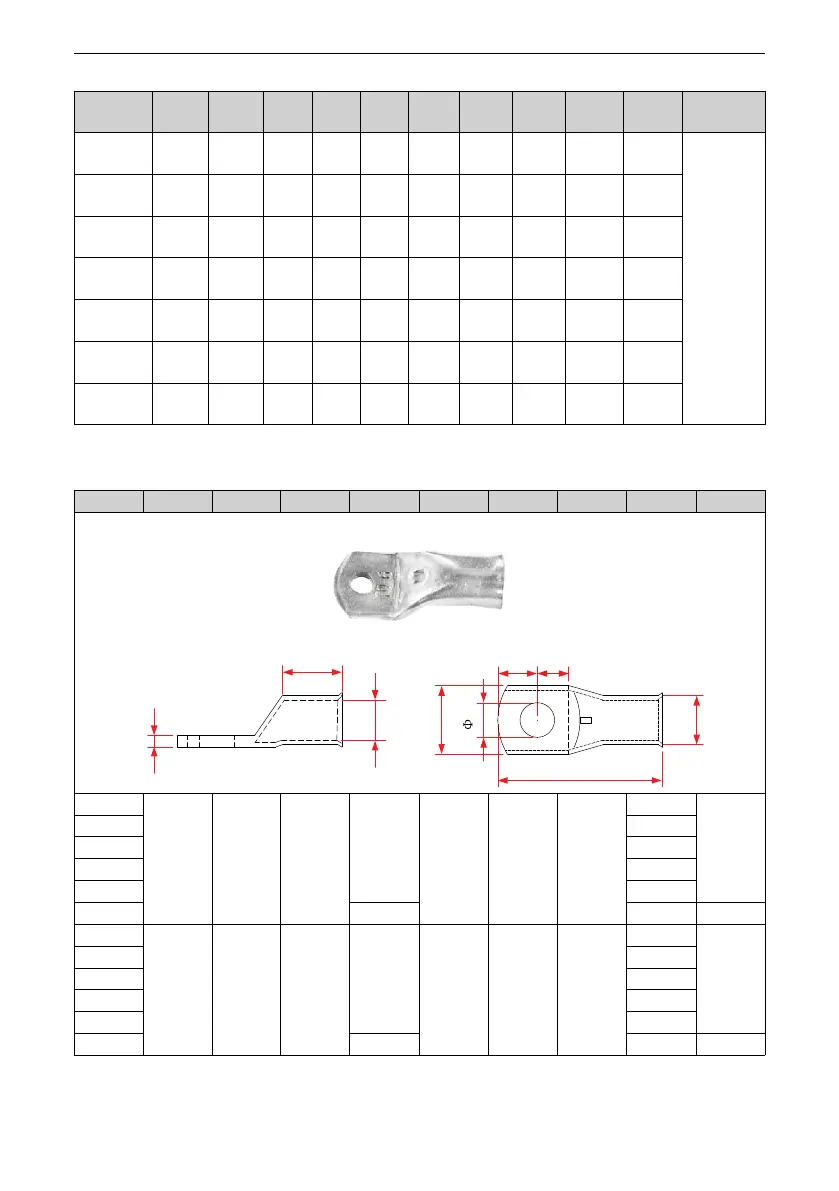

Table 5–10 Appearance, models, and dimensions of BC series cable lugs (unit: mm)
Model A B W E D L T C F
C
E
L
A
F
T
D
B
W
120‑8 19.0 15.0 27.2 16.5 27.0 73.0 4.0 8.5 16.5
120‑10 10.5
120‑12 12.8
120‑14 14.7
120‑16 16.7
120‑20 18.8 20.7 14.3
150‑8 21.0 16.5 30.0 16.5 27.0 78.0 4.5 8.5 16.5
150‑10 10.5
150‑12 12.8
150‑14 14.7
150‑16 16.7
150‑20 18.8 20.7 14.3
