Inovance MD520 Series Hardware Guide

Options
‑89‑

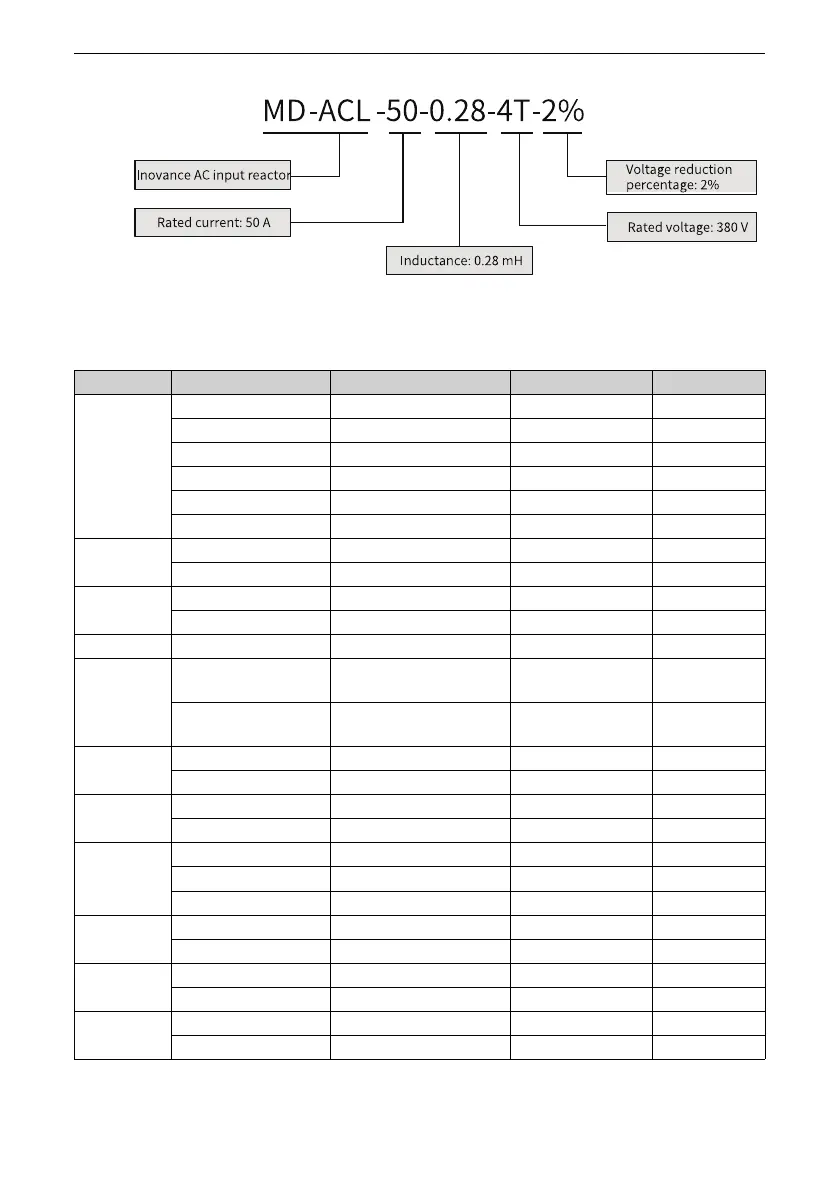

Figure 5‑16 AC input reactor model
Table 5–14 Selection of AC input reactors (three‑phase 380 V to 480 V)
Structure Drive Model Reactor Model
Inductance (mH) Loss (W)
T1 MD520‑4T0.4B(S) MD‑ACL‑10‑5‑4T 5 50
MD520‑4T0.7B(S) MD‑ACL‑10‑5‑4T 5 50
MD520‑4T1.1B(S) MD‑ACL‑10‑5‑4T 5 50
MD520‑4T1.5B(S) MD‑ACL‑10‑5‑4T 5 50
MD520‑4T2.2B(S) MD‑ACL‑10‑5‑4T 5 50
MD520‑4T3.0B(S) MD‑ACL‑10‑5‑4T 5 50
T2 MD520‑4T3.7B(S) MD‑ACL‑15‑3‑4T 3 50
MD520‑4T5.5B(S) MD‑ACL‑15‑3‑4T 3 50
T3 MD520‑4T7.5B(S) MD‑ACL‑40‑1.45‑4T 1.45 100
MD520‑4T11B(S) MD‑ACL‑40‑1.45‑4T 1.45 100
T4 MD520‑4T15B(S) MD‑ACL‑50‑1.2‑4T 1.2 150
T5 MD520‑4T18.5(B)(S)
MD520‑4T18.5(B)(S)‑T
MD‑ACL‑50‑0.28‑4T‑2% 0.28 ‑
MD520‑4T22(B)(S)
MD520‑4T22(B)(S)‑T
MD‑ACL‑60‑0.24‑4T‑2% 0.24 ‑
T6 MD520‑4T30(B) (S) MD‑ACL‑80‑0.17‑4T‑2% 0.17 ‑
MD520‑4T37(B)(S) MD‑ACL‑90‑0.16‑4T‑2% 0.16 ‑
T7 MD520‑4T45(B)(S) MD‑ACL‑120‑0.12‑4T‑2% 0.12 ‑
MD520‑4T55(B)(S) MD‑ACL‑150‑0.095‑4T‑2% 0.095 ‑
T8 MD520‑4T75(B)(S) MD‑ACL‑200‑0.07‑4T‑2% 0.07 ‑
MD520‑4T90(S) MD‑ACL‑250‑0.056‑4T‑2% 0.056 ‑
MD520‑4T110(S) MD‑ACL‑250‑0.056‑4T‑2% 0.056 ‑
T9 MD520‑4T132(S) MD‑ACL‑330‑0.042‑4T‑2% 0.042 ‑
MD520‑4T160(S) MD‑ACL‑330‑0.042‑4T‑2% 0.042 ‑
T10 MD520‑4T200(S)(‑L) MD‑ACL‑490‑0.028‑4T‑2% 0.028 ‑
MD520‑4T220(S)(‑L) MD‑ACL‑490‑0.028‑4T‑2% 0.028 ‑
T11 MD520‑4T250(S)(‑L) MD‑ACL‑490‑0.028‑4T‑2% 0.028 ‑
MD520‑4T280(S)(‑L) MD‑ACL‑660‑0.021‑4T‑2% 0.021 ‑
