Terminals
‑74‑
Note

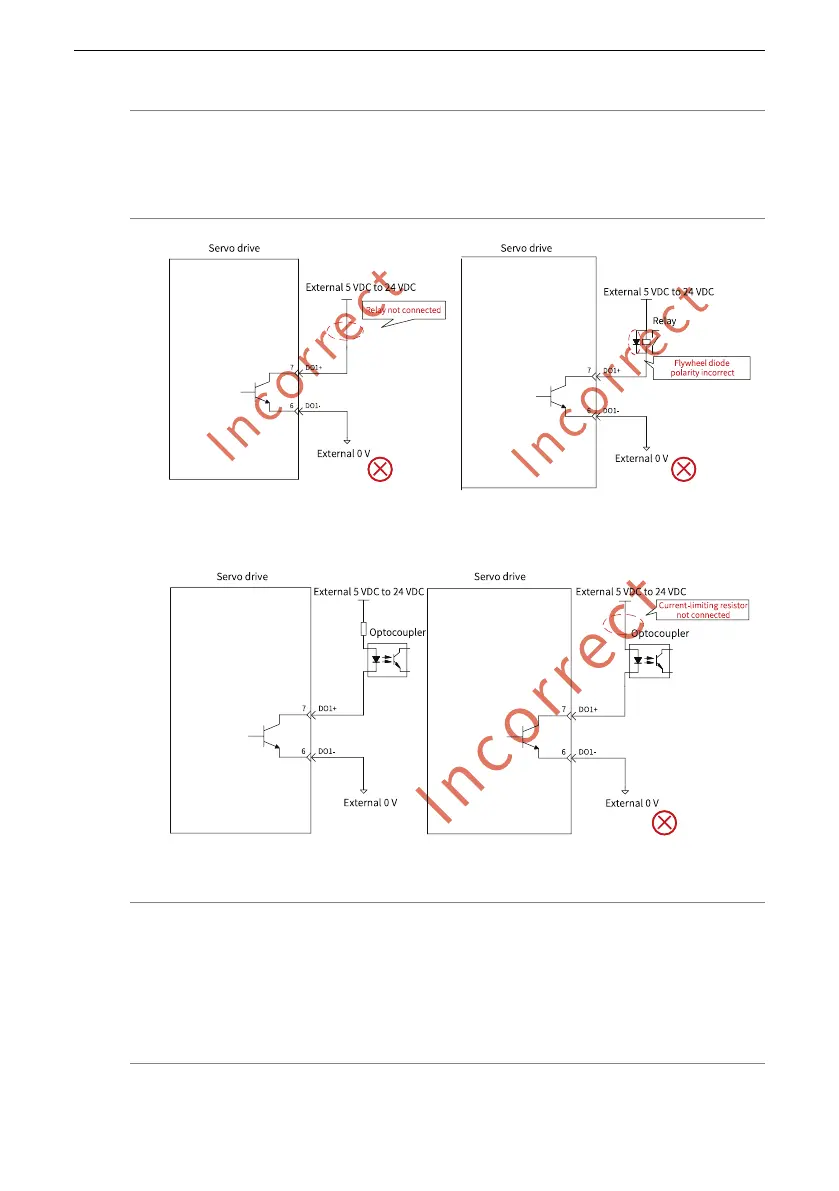

When the host controller provides relay input, a flywheel diode must be installed. Other‑
wise, the DO terminals may be damaged.
● The host controller provides optocoupler input.
Note
The maximum permissible voltage and current capacity of the optocoupler output circuit
inside the servo drive are as follows:
● Maximum voltage: 30 VDC
● Maximum current: DC 50 mA
