4.2.5 Encoder Frequency-Division Output Signals
For details on encoder frequency‑division output signals, see "
Table 4–10
"
on page
60
.

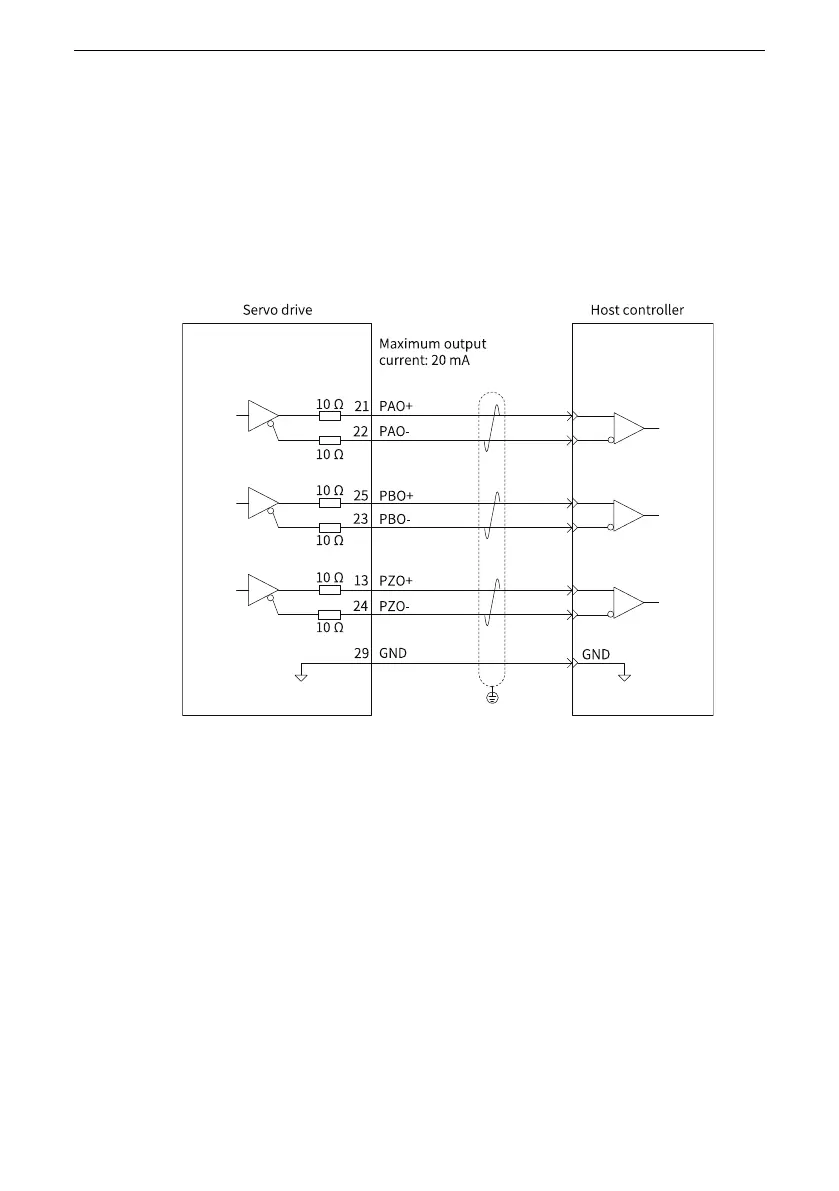

The encoder frequency‑division output circuit outputs differential signals through the
differential drive. Typically, this circuit provides feedback signals to the host
controller in a position control system. Use a differential or optocoupler receiving
circuit on the host controller side to receive feedback signals. The maximum output
current is 20 mA.
