Terminals
‑76‑

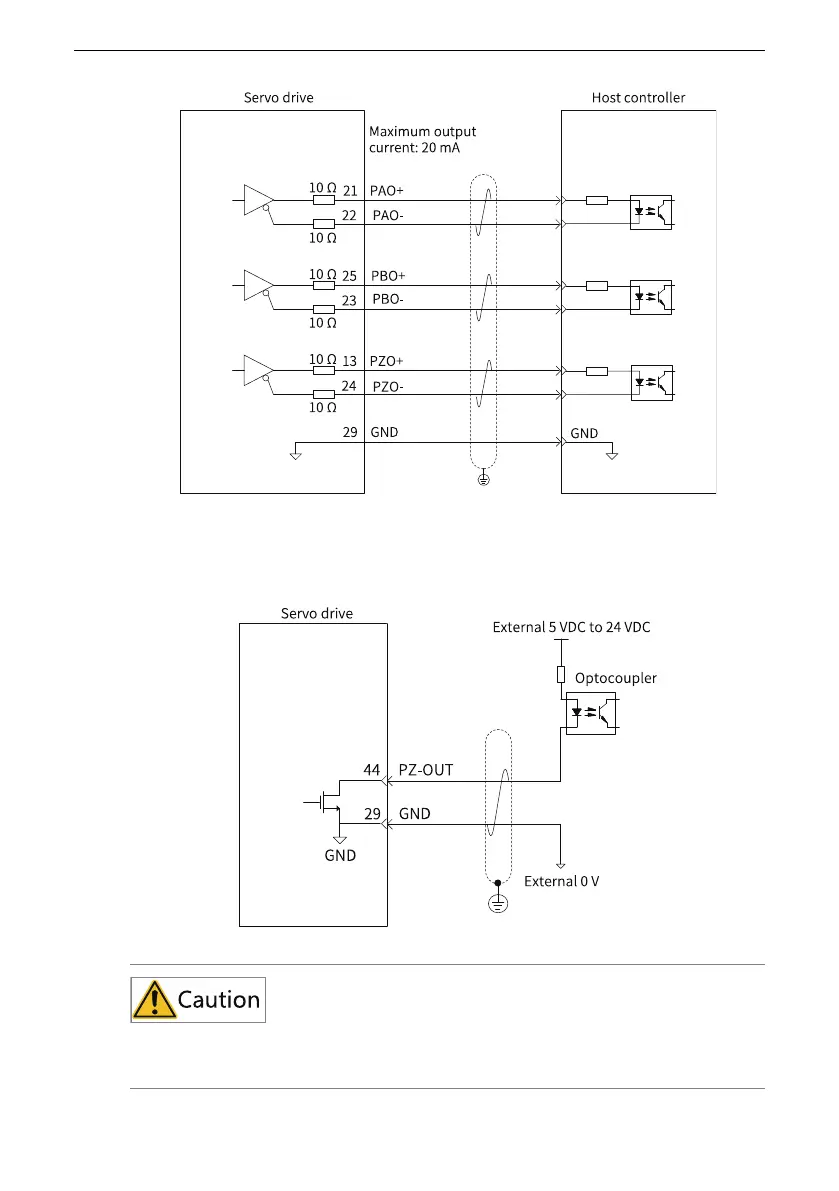

The encoder phase Z frequency‑division output circuit supports open‑collector signal
output. Typically, this circuit provides feedback signals to the host controller in a
position control system. Use an optocoupler circuit, relay circuit, or bus receiver
circuit on the host controller side to receive feedback signals.
To reduce noise interference, use shielded twisted pairs to connect the 5V GND of the host
controller to the GND of the servo drive.
