L-Shaped Computer Desk
www.insigniaproducts.com

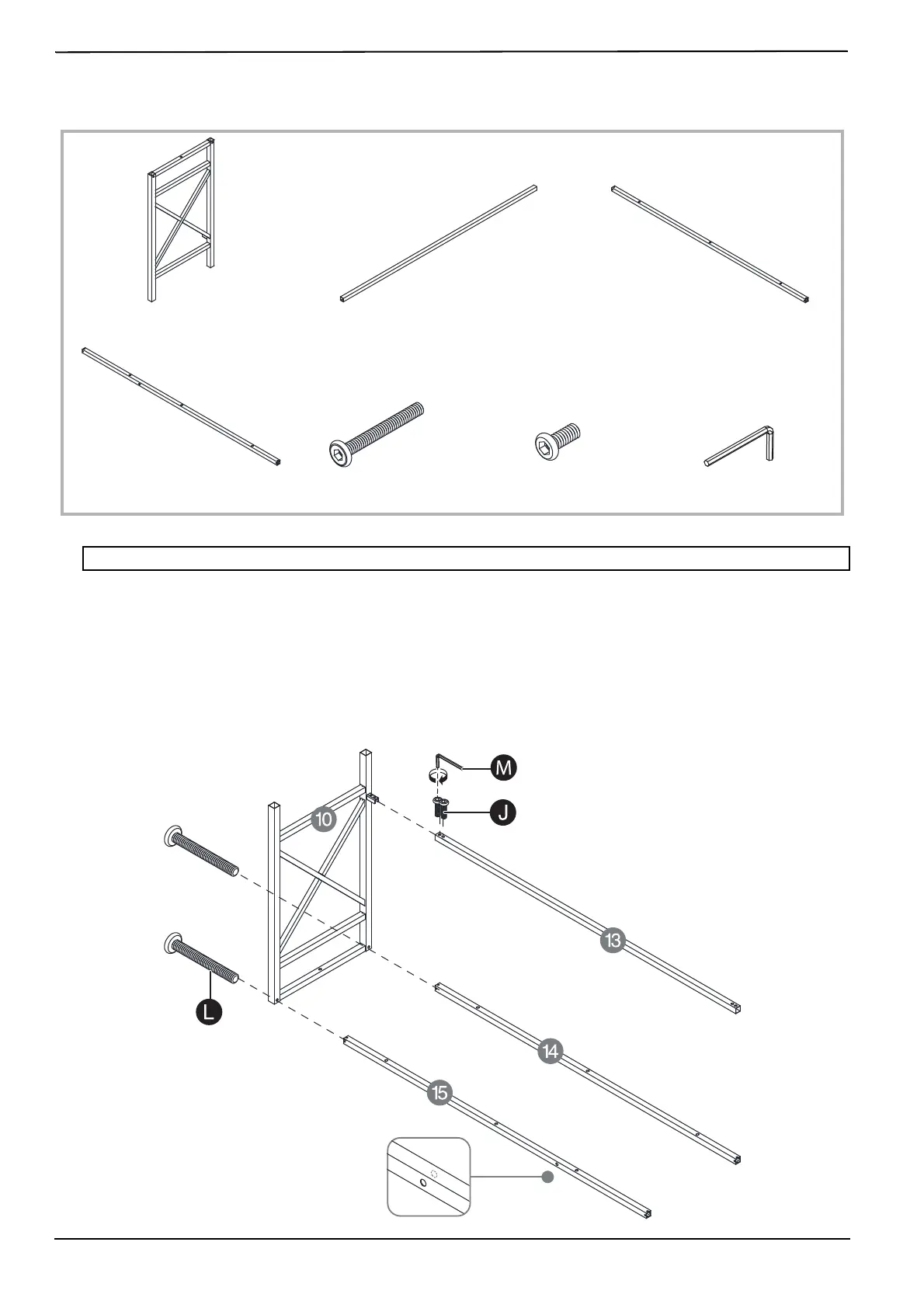

STEP 11: Attach support bars to the side leg assembly
You n e ed:
1 Align the side front support bar (15) with the top/front hole in the side leg assembly (10), then secure with a M6 ×
50 mm bolt (L) and a hex wrench (M). Make sure that the holes in the side front support bar (15) face the front and
back of your desk (as shown).
2 Align the side back support bar (14) with the top/back hole in the side leg assembly (10), then secure with a M6 ×
50 mm bolt (L) and a hex wrench (M). Make sure that the outermost holes in the side back support bar (14) face the
back of your desk (as shown).
3 Align the bottom support bar (13) with the bottom/back bracket in the side leg assembly (10), then secure with
two M6 × 15 mm bolts (J) and a hex wrench (M). Make sure that the holes in the bottom support bar (13) face the
back of your desk (as shown).
Note: To make assembly easier, do not lock the bolts tightly until you have assembled all other parts.
J
M6 × 15 mm bolts (2)
M
Hex wrench
L
M6 × 50 mm bolts (2)
10
Side leg assembly
13
Bottom support bar (1)
14
Side back support bar
15
Side front support bar
