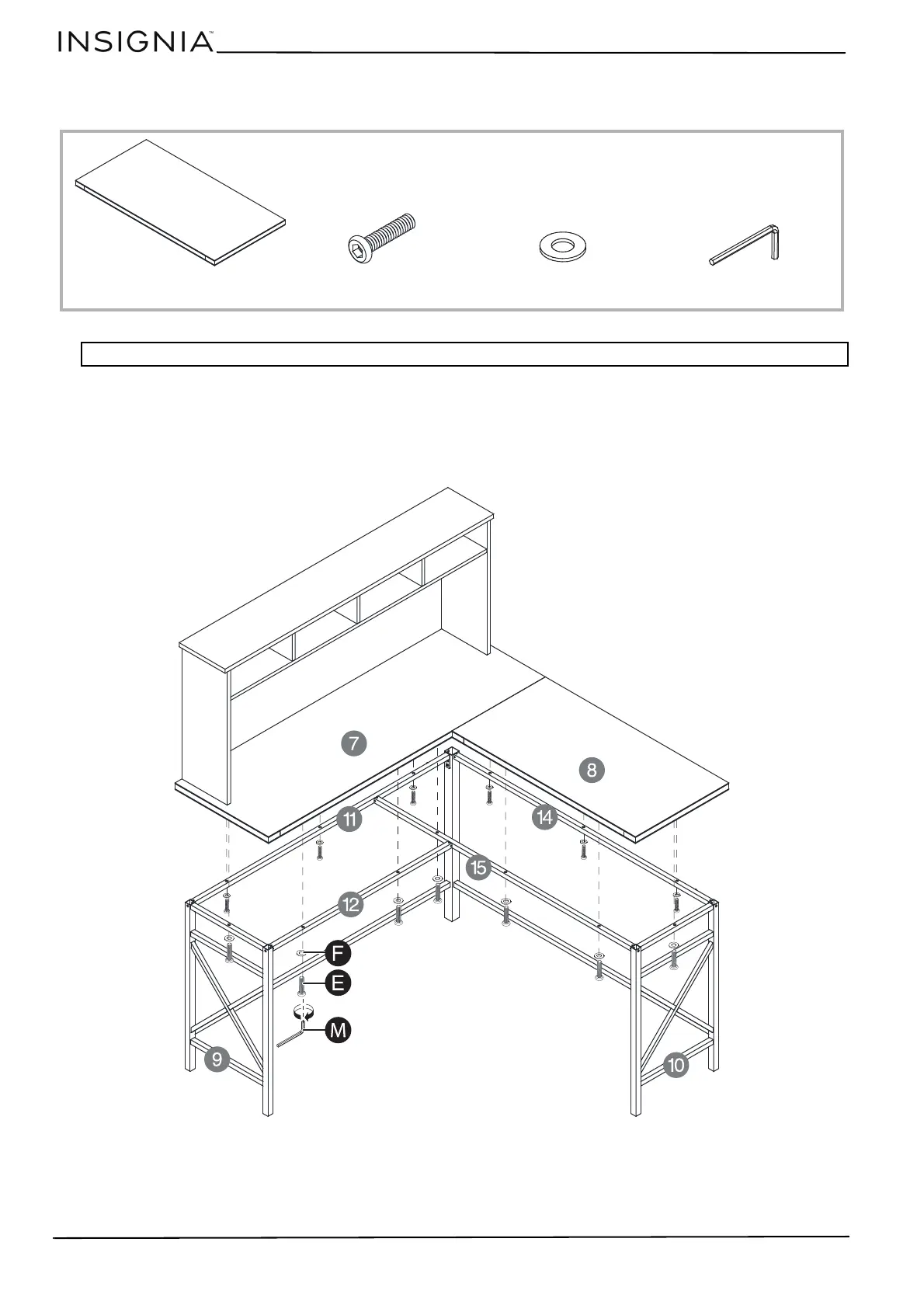

STEP 16: Attach the desktops to the leg assembly
You n e ed:
1 Have someone help you lift the main desktop (7) on top of the main leg assembly. Make sure that the holes
underneath the main desktop align with the holes in the leg assembly.
2 Secure the main desktop (7) with eight M6 × 30 mm bolts (E), eight washers (F), and a hex wrench (M).
3 Align the holes underneath the side desktop (8) with the holes in the side leg assembly.
4 Secure the side desktop (8) with five M6 × 30 mm bolts (E), five washers (F), and a hex wrench (M).
Note: To make assembly easier, do not lock the bolts tightly until you have assembled all other parts.
E
M6 × 30 mm bolts (13)
F
Washers (13)
8
Side desktop
M
Hex wrench
