9
L-Shaped Computer Desk
www.insigniaproducts.com

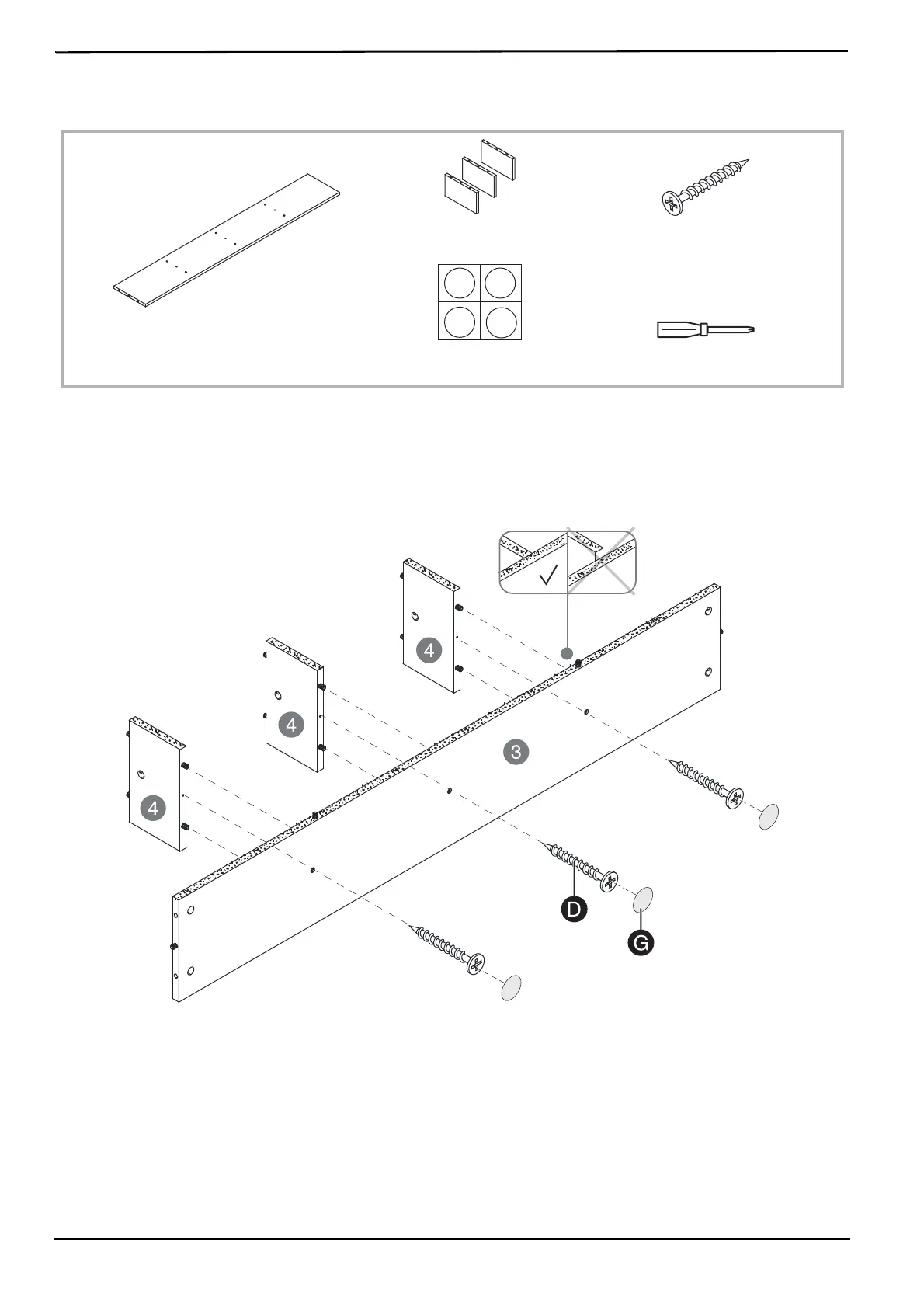

STEP 3: Connect the hutch divider panels to the bottom hutch panel
You n e ed:
1 Align the wooden dowels on a hutch divider panel (4) with the holes in the bottom hutch panel (3). Make sure that
the edges of the panels are flush with each other so the divider panel edge is not raised (as shown).
2 Secure the divider panel with a 3.8 × 45 mm screw (D) and a Phillips screwdriver.
3 Cover the head of the screw with a screw cover (G).
4 Repeat steps 1–3 to connect the other two hutch divider panels. This is the hutch assembly.
T
D
3.8 × 45 mm screws (3)
G
Screw covers (3)
Phillips screwdriver
3
Bottom hutch panel
4
Hutch divider panels (3)
