19
L-Shaped Computer Desk
www.insigniaproducts.com

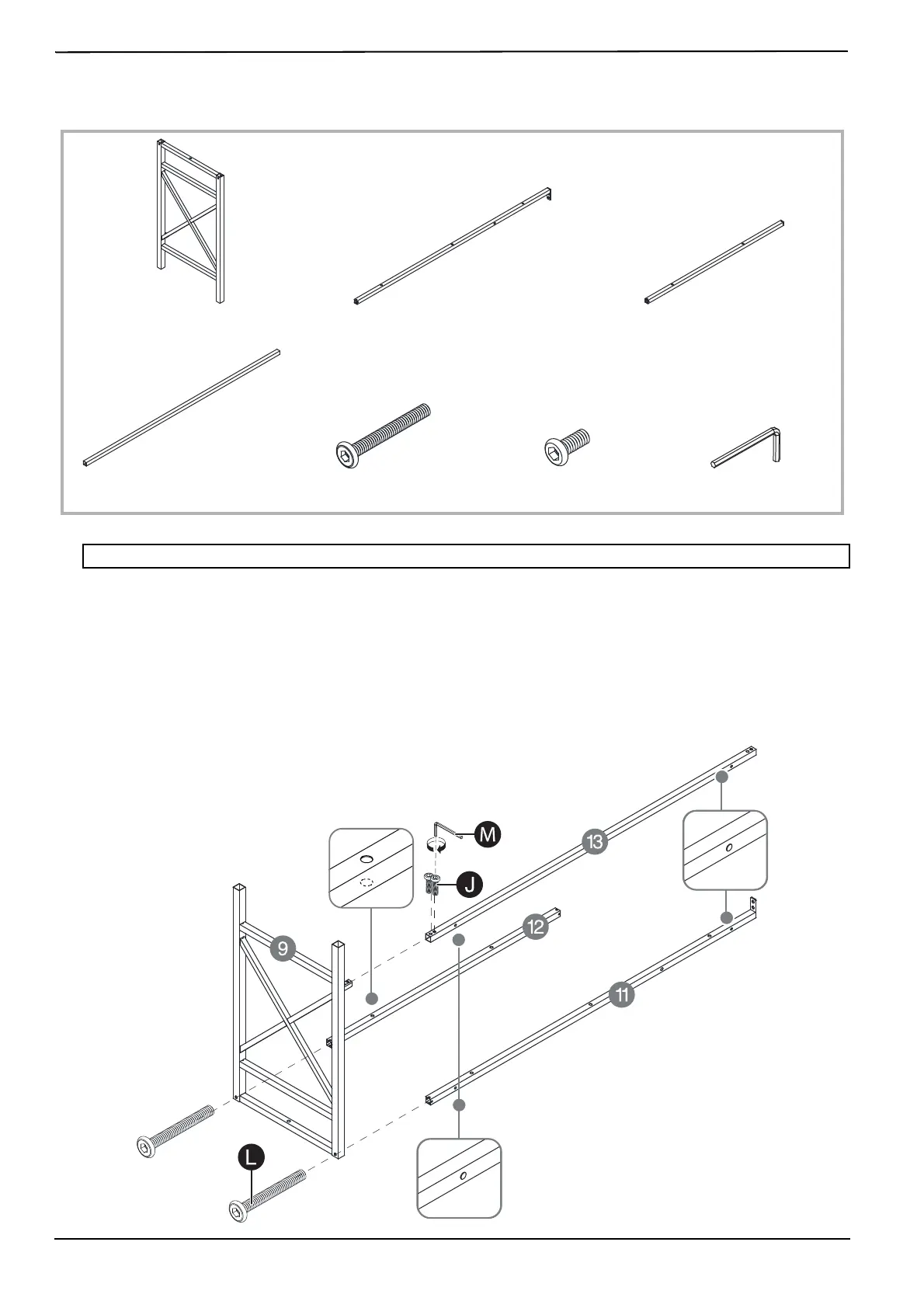

STEP 13: Attach support bars to the main leg assembly
You n e ed:
1 Align the main front support bar (12) with the top/front hole in the main leg assembly (9), then secure with a M6 ×
50 mm bolt (L) and a hex wrench (M). Make sure that the holes in the main front support bar (12) face up and down
(as shown).
2 Align the main back support bar (11) with the top/back hole in the main leg assembly (9), then secure with a M6 ×
50 mm bolt (L) and a hex wrench (M). Make sure that the outermost holes in the main back support bar (11) face
the back of your desk (as shown).
3 Align the bottom support bar (13) with the bottom/back bracket in the main leg assembly (9), then secure with two
M6 × 15 mm bolts (J) and a hex wrench (M). Make sure that the holes in the bottom support bar (13) face the back
of your desk (as shown).
Note: To make assembly easier, do not lock the bolts tightly until you have assembled all other parts.
9
Main leg assembly
11
Main back support bar
12
Main front support bar
L
M6 × 50 mm bolts (2)
J
M6 × 15 mm bolts (2)
M
Hex wrench
13
Bottom support bar (1)
TOP/FRONT
TOP/BACK
