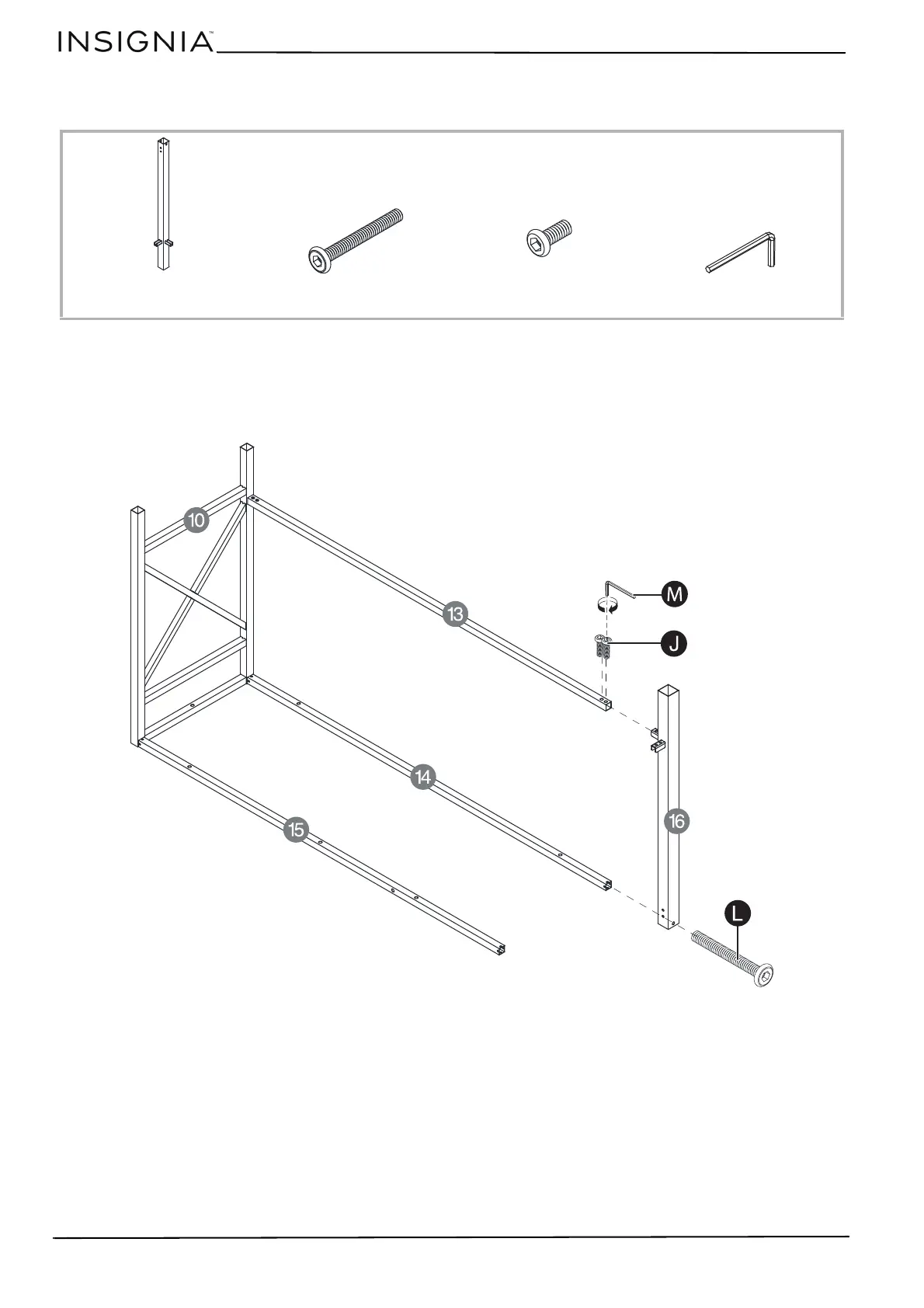

STEP 12: Attach the center leg to the side leg assembly supports
You n e ed:
1 Align the bracket on the center leg (16) with the bottom support bar (13), then secure with two M6 × 15 mm
bolts (J) and a hex wrench (M). Make sure that the second bracket on the center leg faces the front of your desk (as
shown).
2 Align the holes in the center leg (16) and side back support bar (14), then secure with a M6 × 50 mm bolt (L) and
hex wrench (M).
16
Center leg
L
M6 × 50 mm bolt (1)
J
M6 × 15 mm bolts (2)
M
Hex wrench
