5.4 Defrosting parts
Item
Initial defrosting period
Normal defrosting period
Defrosting period
Temperature is lower than 0
o
C
6~24 hours
Defrosting sensor
B3839
B3839
Defrosting temperature
controller
None None
Thermal fuse
Can’t be restored 77
℃
Can’t be restored 77
℃
Defrosting heater in freezing
chamber
115V/200W 115V/200W

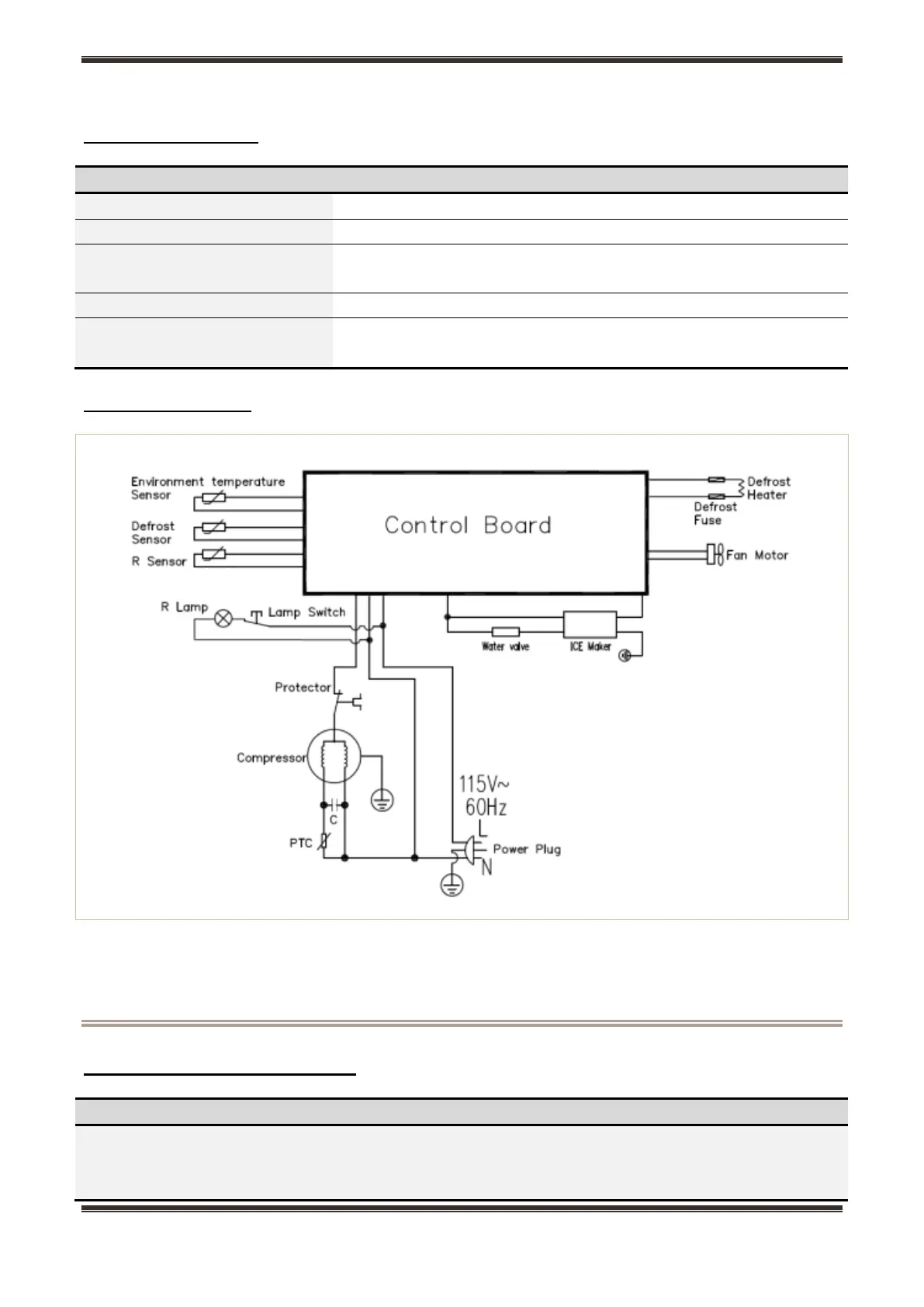

5.5 Circuit diagram
6. Internal view and dimension
6.1 Main parts and their names
Freezer chamber
Refrigerator chamber
❶Air duct components in freezing chamber
❷Steel wire shelf
❽Bottle frame in freezing chamber
❸Air duct components in refrigerating chamber
❹Glass shelf
❺Cover plate of crisper
