Insignia NS-RTM21SS7 Service Manual

Service Manual_2017-V1
36
temperature.
The characteristic that resistance value reduces as the temperature increases is deemed to have
negative slope or negative temperature coefficient (NTC), and such thermistor is called as NTC
thermistor. The resistance value changes sensitively with temperature and typically changes 7% ~ 3% per
degree centigrade. Sensor used in the refrigerator is NTC thermistor.
There is following computing formula for the sensor:Sampling voltage / reference voltage =
R1 / (RNTC + R1)
AD value / reference AD value = R1 / (RNTC + R1)

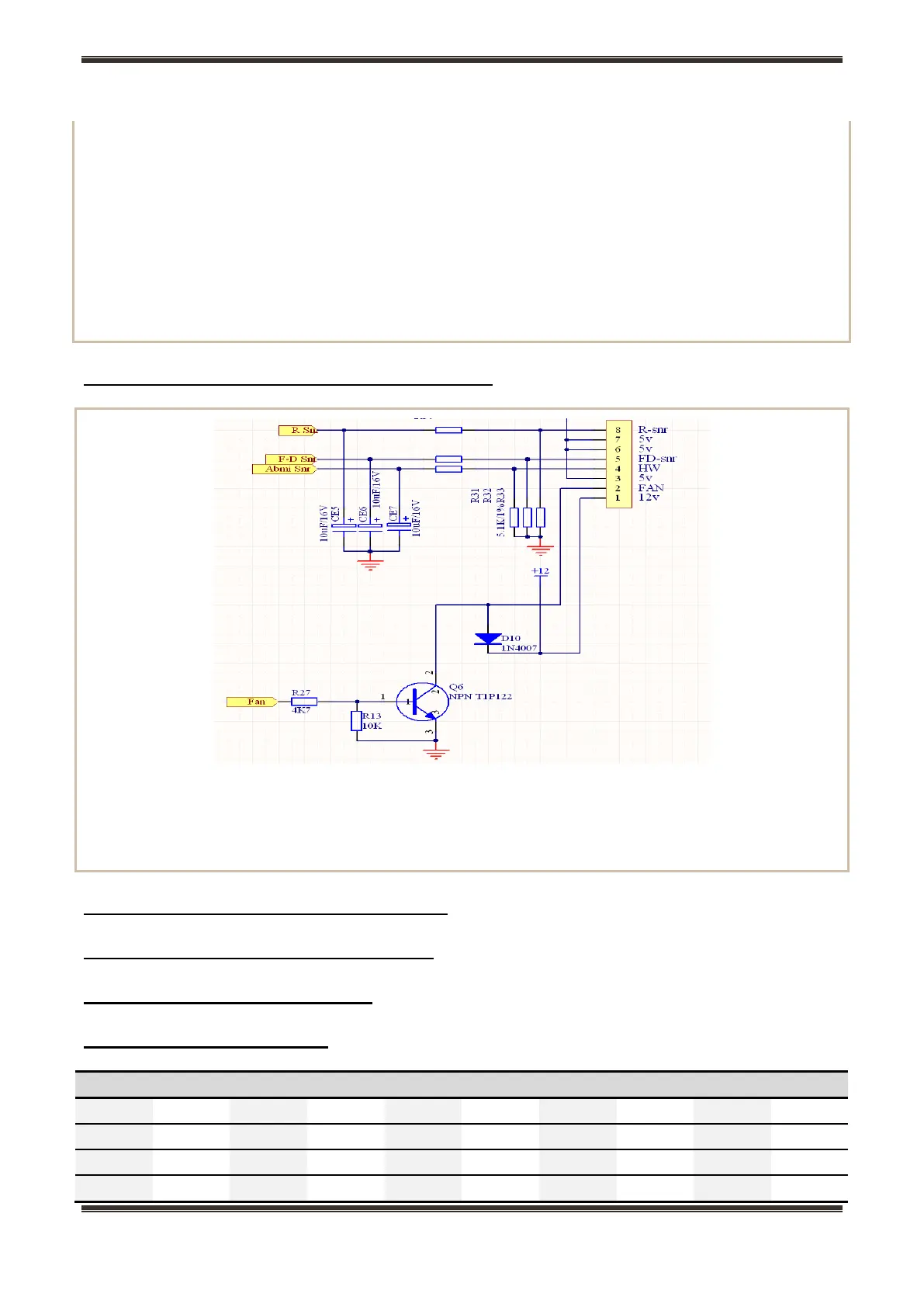

10.4 Fan motor circuit of the freezing chamber
The fan in the freezing chamber is running when the compressor is operating. Check 12V and FAN to see
if there is a voltage of 12V. When in normal operation, the fan is in low level and the voltage between 12V
and FAN is more than 11V. If there’s no voltage when the compressor is in operation, fan motor or electric
control panel can be replaced.
10.5 Refrigerator fan motor circuit (None)
10.6 Condenser fan motor circuit(None)
10.7 Damper motor circuit(None)
10.8 Sensor resistance(R/T)
Tx(
℃
) R
（
KΩ
）
Tx(
℃
) R
（
KΩ
）
Tx(
℃
) R
（
KΩ
）
Tx(
℃
) R
（
KΩ
）
Tx(
℃
) R
（
KΩ
）
-30 33.81 -15 14.31 0 6.495 15 3.141 30 1.617
-29 31.85 -14 13.55 1 6.175 16 2.999 31 1.55
-28 30.01 -13 12.83 2 5.873 17 2.865 32 1.486
-27 28.29 -12 12.16 3 5.587 18 2.737 33 1.426
