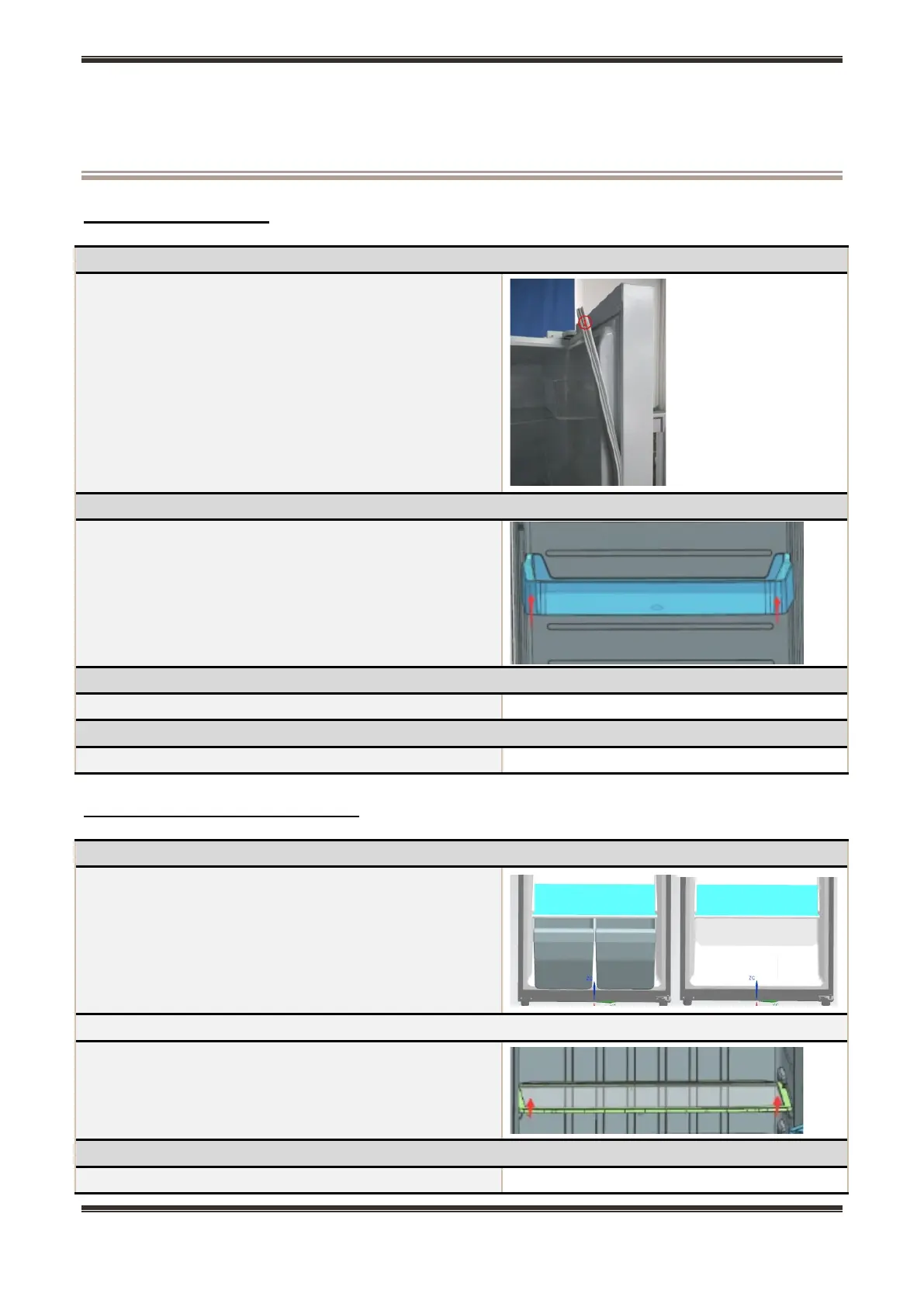

8. Dismantling of parts
8.1 Parts on the door
Door seal is installed into door liner groove.
1)Open the refrigerator door.
2)Take the door seal ① out of door liner.
While squeezing it inward, lift up the baffle and take it out
from refrigerator liner.
Door stopper None
rollover beam None
8.2 Parts inside the refrigerator
Refrigerator Fruit box cover
Remove the crisper cover of ref. compartement accordin
g to below steps
1）Take out the crisper firstly.
2）Pull out the crisper cover completely.
1）Lift up the division plate with a proper force and pull it
out towards yourself.
