7. Use the jog controls to move the crosshead over the full stroke of the frame to
distribute the grease in the ballnut and coat the ballscrew shaft.
8. Before you carry out any testing, perform the procedure described in “First time
startup” on page 47.
Lubricate ballnuts and linear guide carriages
This procedure applies to model 34SC-5, refer to Figure 24 on page 116 and
Figure 25 on page 117.

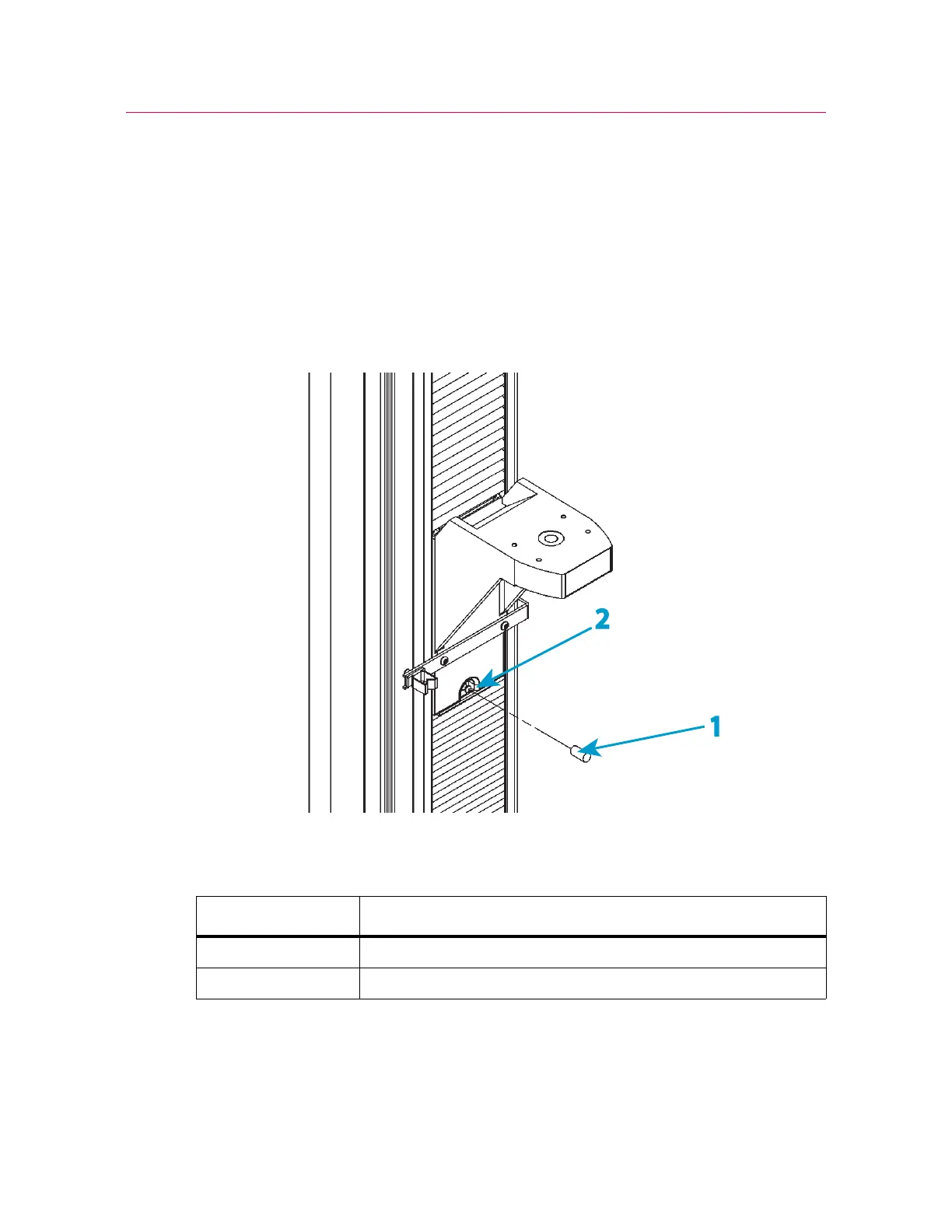

Figure 24. Ballnut lubrication
Legend for Figure 24
Label Description
1 Ballnut grease nipple cover
2 Ballnut nipple
