Instron 6800 Series User Manual

Chapter: Installation
46 M10-17410-EN

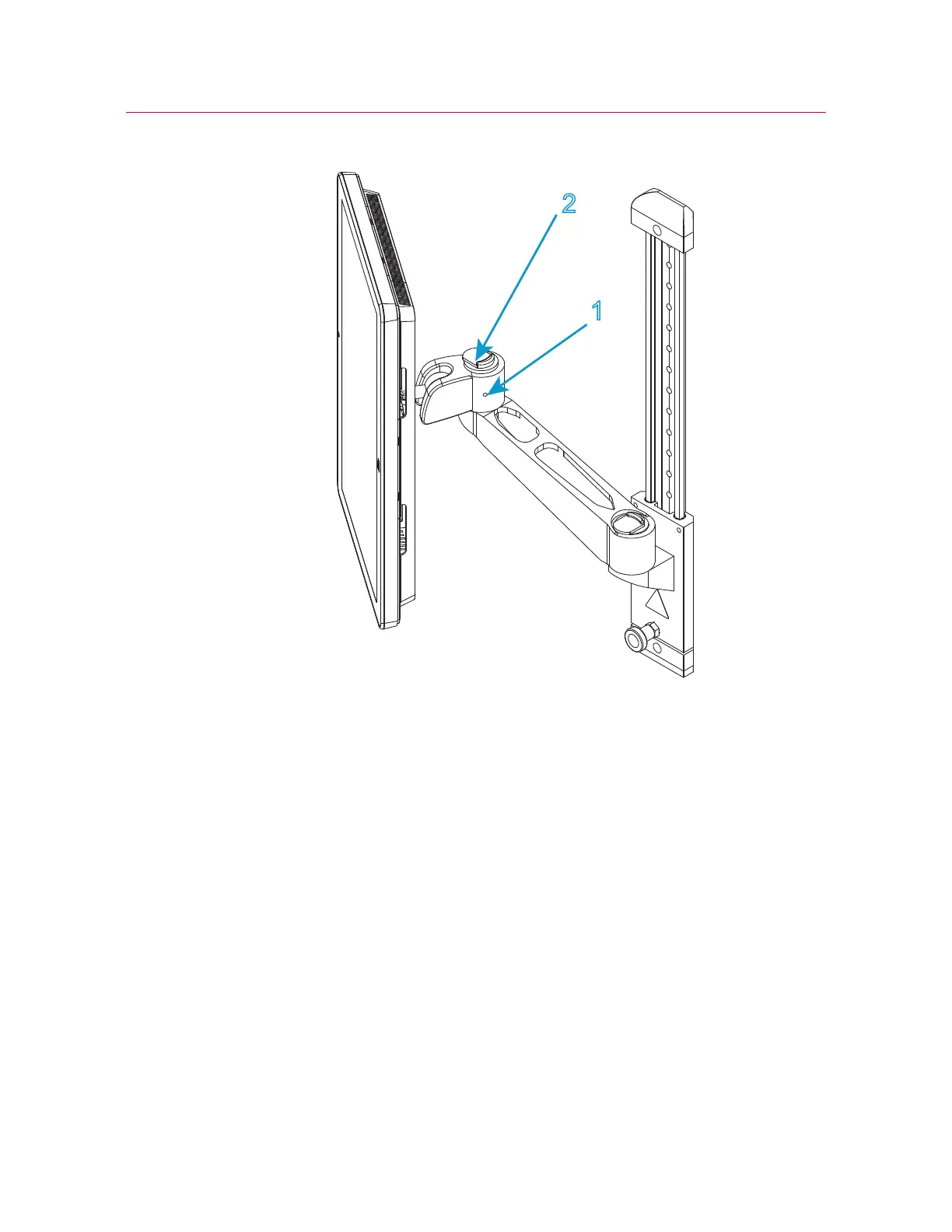

Figure 10. Mounting arm
3. If necessary, loosen the set screw on the side of the “elbow” on the mounting arm (1
in Figure 10 on page 46).
4. Operate the release mechanism on top of the “elbow” (2 in Figure 10 on page 46)
and lift the Bluehill
®
Operator Dashboard clear of the mounting arm (Figure 11 on
page 47).
1
2
