29
68SC-05 Po
wer R
equirements and Cords
Product Support:
www.instr
on.com

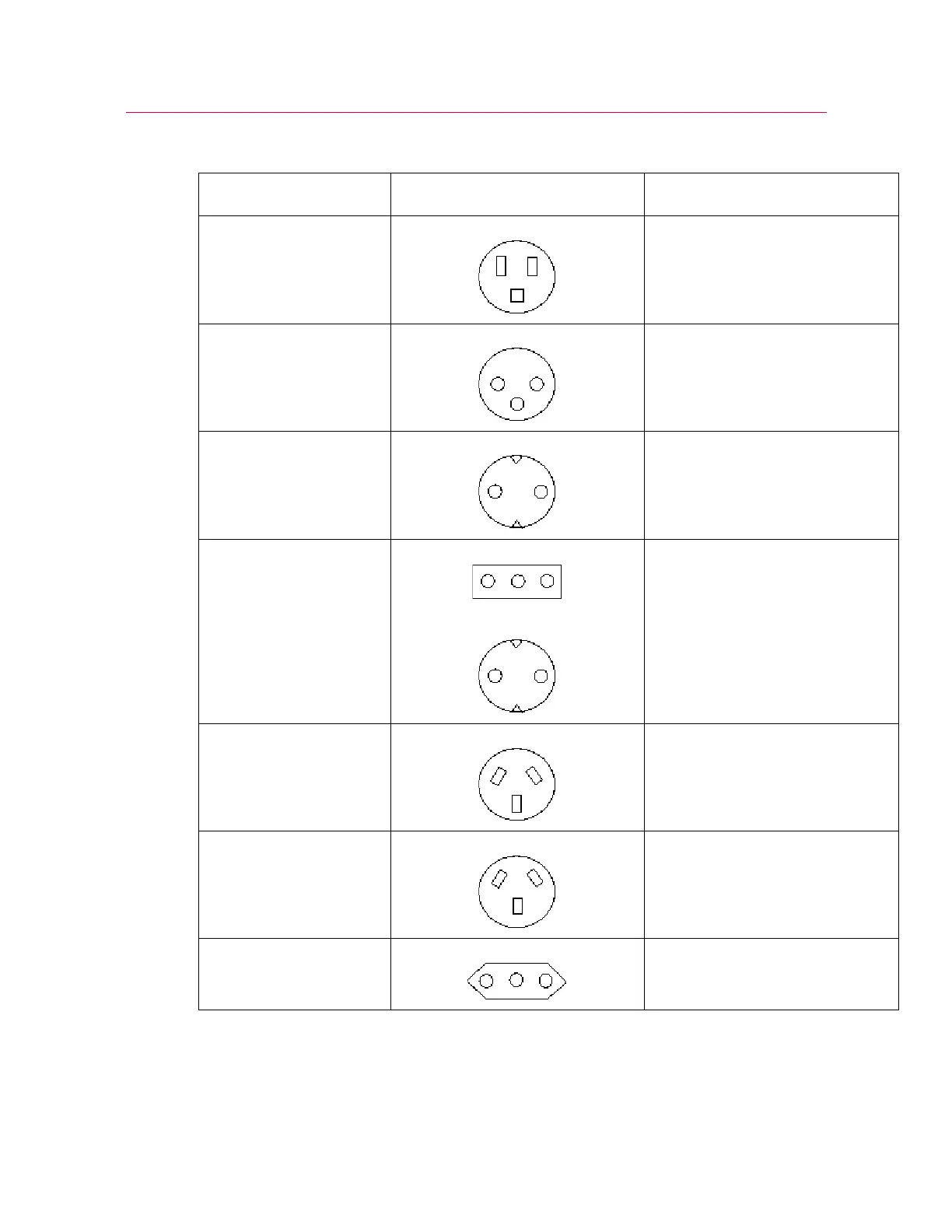

Table 6. Power cords
Pow
er cord designation
Matching receptacle
Locale
P1
USA and Canada
P2
Denmark
P3
Europe
P4
and
Italy
P5
China
P6
Australia and Ne
w Zealand
P7
Switzerland
28
30
Table of Contents
Default Chapter
9
Table of Contents
9
Chapter 1: Introduction
12
System Description and Terminology
12
Components
15
Principle of Operation
16
Hardware Controls
16
Software
17
System Safety and Information Labeling
17
Product Support
19
Product Documentation
20
Chapter 2: Requirements
21
Responsibilities
21
Customer's Responsibilities
21
Supplier's Responsibilities
22
Site Requirements
23
Frame Location
24
Floor Loading
24
Power Supply
24
Telephone and Network Access
25
Ceiling Clearance
25
Environmental Conditions
25
Accessibility
25
Site Requirements for System Accessories
25
Environmental Specifications
26
General
26
Conformity with EU Directives
27
Environmental Impact
27
Noise Levels
27
68SC-05 Power Requirements and Cords
28
Power Requirements
28
Power Cord Selections
28
Checklist for Site Preparation
30
Site Location
30
Transporting
31
Scheduling Installation
32
Chapter 3: Specifications
33
68SC-05 Dimensions and Weight
33
Frame Dimensions
33
System Weights
36
Accessory Mounting Dimensions
36
Base Beam Dimensions
37
Crosshead Dimensions
38
System Performance
39
Chapter 4: Risk Reduction and Safe Use
41
Residual Risks
41
Rapid Crosshead Motion
42
Pinching Fingers between Grip Jaw Faces
44
Impact of Debris from Breaking Specimens
45
Operator Protection Overview
46
Chapter 5: Lifting and Handling
49
General Handling Precautions
49
68SC-05 Packaging Dimensions and Weight
49
Transport Single Column Frames
50
Before You Begin
50
Equipment
50
Transport Single Column Frames
51
Index
53
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Instron 68SC-05 and is the answer not in the manual?
Ask a question
Instron 68SC-05 Specifications
General
Brand
Instron
Model
68SC-05
Category
Test Equipment
Language
English
Related product manuals
Instron 68TM-5
66 pages
Instron 6800 Series
126 pages
Instron 5966
84 pages
Instron 5969
84 pages
Instron 34SC-5
126 pages
Instron 34TM-10
124 pages
Instron 34TM-50
124 pages
Instron DX Series
96 pages
Instron CEAST 9340
179 pages
Instron 5960 Series
84 pages
Instron 3400 Series
126 pages
Instron 4400 Series
271 pages
