123

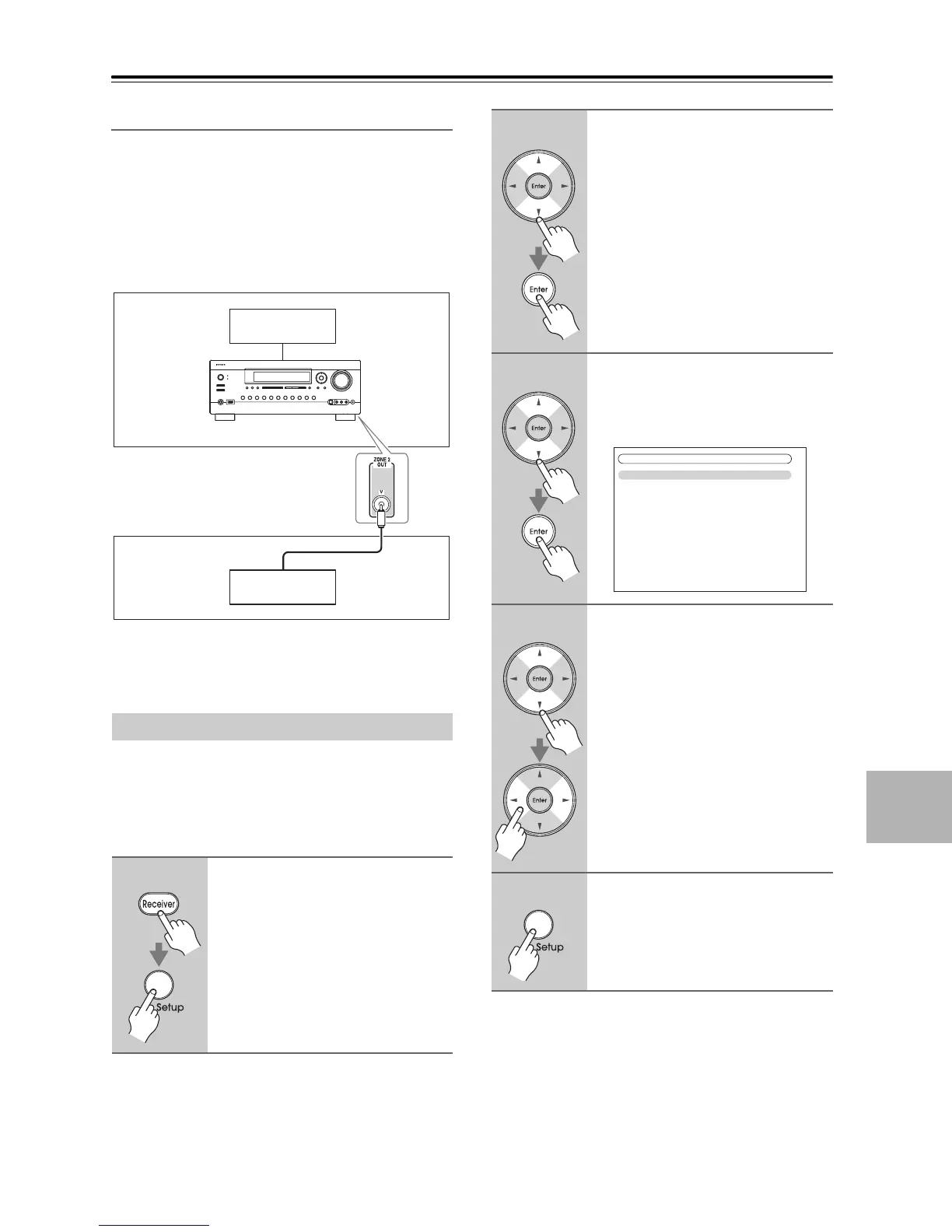

Zone 2—Continued
Zone 2 Video Output
The AV receiver features a composite video output for
connection to a TV in Zone 2, so you can enjoy both
audio and video in that zone.
Hookup
• Use a composite video cable to connect the AV
receiver’s ZONE 2 OUT V jack to a composite video
input on your Zone 2 TV.
Note:
The ZONE 2 OUT V jack outputs video from compo-
nents connected to composite video inputs.
If you’ve connected your Zone 2 speakers to the AV
receiver, as explained in “Connecting Your Zone 2
Speakers Directly to the AV receiver” on page 122, you
must set the “Powered Zone2” setting to “Act” (Acti-
vated).
Notes:
• Powered Zone2 cannot be used if “Speakers
Type(Front)” is set to “Bi-Amp” (see page 47).
• This procedure can also be performed on the AV
receiver by using its [Setup] button, arrow buttons, and
[Enter] button.
Setting the Powered Zone 2
1
Press the [Receiver] button
followed by the [Setup] button.
The main menu appears onscreen.
If the main menu doesn’t appear, make
sure the appropriate external input is
selected on your TV.
Main room
TV
Zone 2
AV receiver
TV
2
Use the Up and Down [q]/[w]
buttons to select “2. Speaker
Setup”, and then press [Enter].
The “Speaker Setup” menu appears.
3
Use the Up and Down [q]/[w]
buttons to select “1. Speaker
Settings”, and then press [Enter].
The “Speaker Settings” menu appears.
4
Use the Up and Down [q]/[w]
buttons to select “Powered
Zone2”, and use the Left and
Right [e]/[r] buttons to select:
Not Act:
Zone 2 L/R speaker terminals not
activated (Powered Zone 2 dis-
abled).
Act:
Zone 2 L/R speaker terminals acti-
vated (Powered Zone 2 enabled).
5
Press the [Setup] button.
The setup menu closes.
2. Speaker Setup
1. Speaker Settings
2. Speaker Configuration
3. Speaker Distance
4. Level Calibration
5. Equalizer Settings
6. THX Audio Setup
To Next Page
