Connecting the AV receiver—Continued
By connecting both the audio and video outputs of your DVD/BD player and other AV components to the AV receiver,
you can select both the audio and video simultaneously simply by selecting the appropriate input source on the AV
receiver.
The AV receiver supports several connection formats for compatibility with a wide range of AV equipment. The format
you choose will depend on the formats supported by your other components. Use the following sections as a guide.
Video Connection Formats
Video equipment can be connected to the AV receiver by using any one of the following video connection formats:
composite video, S-Video, component video, or HDMI, the latter offering the best picture quality.
For optimal video performance, THX recommends that video signals pass through the system without upconver-
sion (e.g., component video input through to component video output).
It is also recommended that you press the [VCR/DVR] and [Return] buttons on the AV receiver at the same time.
Select “Skip” in the “VideoProcessor” setting on the display. To reset back to the original setting, press the same
button at the same time.
Video input signals flow through the AV receiver
as shown, with composite video, S-Video, and
component video sources all being upconverted
for the HDMI output.
The composite video, S-Video, and component
video outputs pass through their respective input
signals as they are.

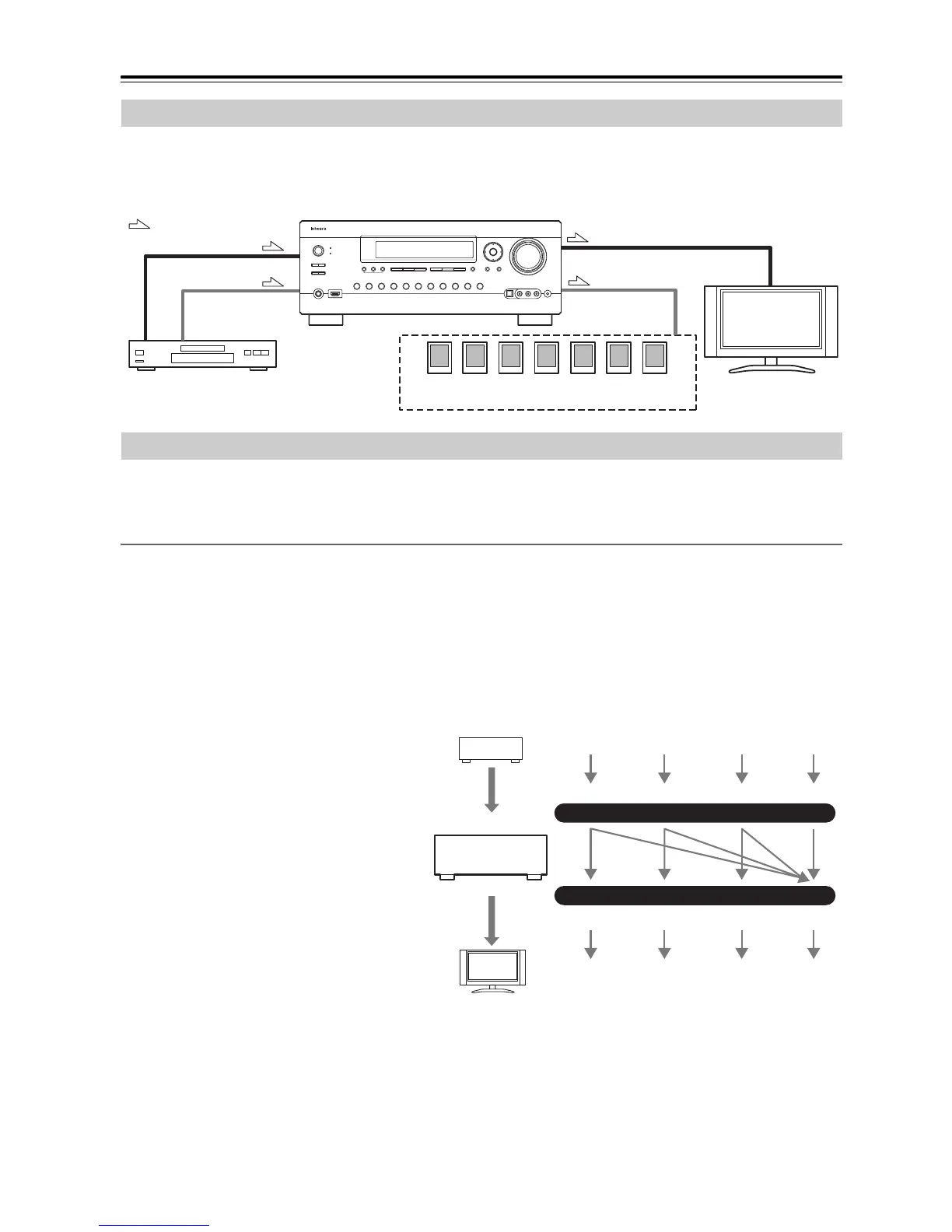

Connecting Both Audio & Video
: Signal Flow
Video
Audio
Video
Audio
Speakers
(see pages 17 to 19 for connection information)
DVD/BD player, etc.
TV, projector,
etc.
Which Connections Should I Use?
IN
MONITOR OUT
DVD/BD player, etc.
AV receiver
TV, projector, etc.
Composite
Composite
S-Video
S-Video
Component
Component
Video Signal Flow Chart
HDMI
HDMI
