Connecting the AV receiver—Continued
If you want to use a more powerful power amplifier and use the AV receiver as a preamp, connect it to the PRE OUT
jacks, and connect all speakers and the subwoofer to the power amplifier. If you have a powered subwoofer, connect it
to this AV receiver’s PRE OUT: SUBWOOFER jack. You can connect the powered subwoofer with two PREOUT:
SUBWOOFER jacks respectively. The same signal is output from each jack.

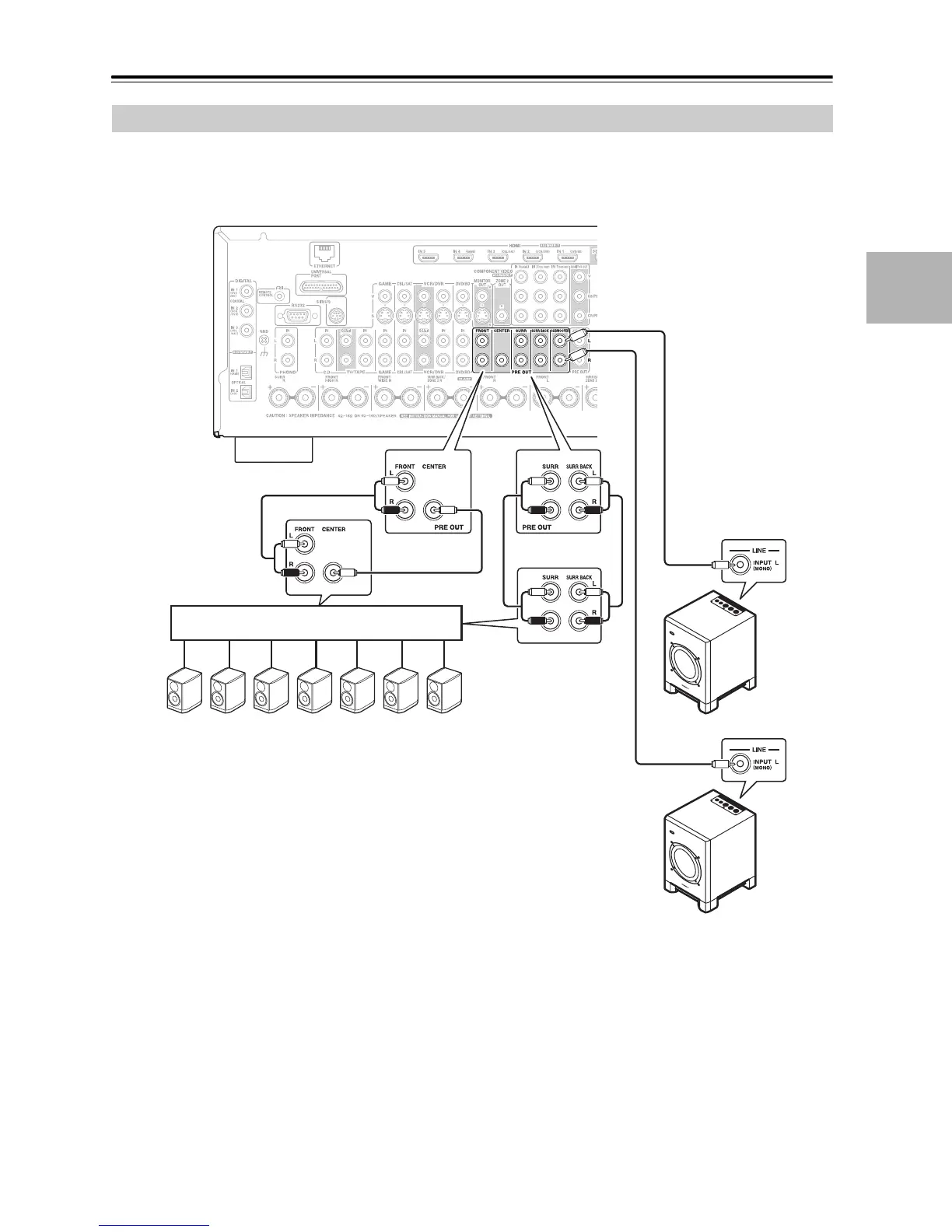

Connecting a Power Amplifier
2345671
Power amplifier
Powered subwoofer
See “Connecting a Powered
Subwoofer” on page 17 for more
information.
1. Front left speaker
2. Center speaker
3. Front right speaker
4. Surround left speaker
5. Surround right speaker
6. Surround back/Front wide/Front high left speaker*
7. Surround back/Front wide/Front high right speaker*
Note:
* Specify “None” for the channel that you don’t want to output in “Speaker Configuration” (see page 91).
To Next Page
