Connections
En-18

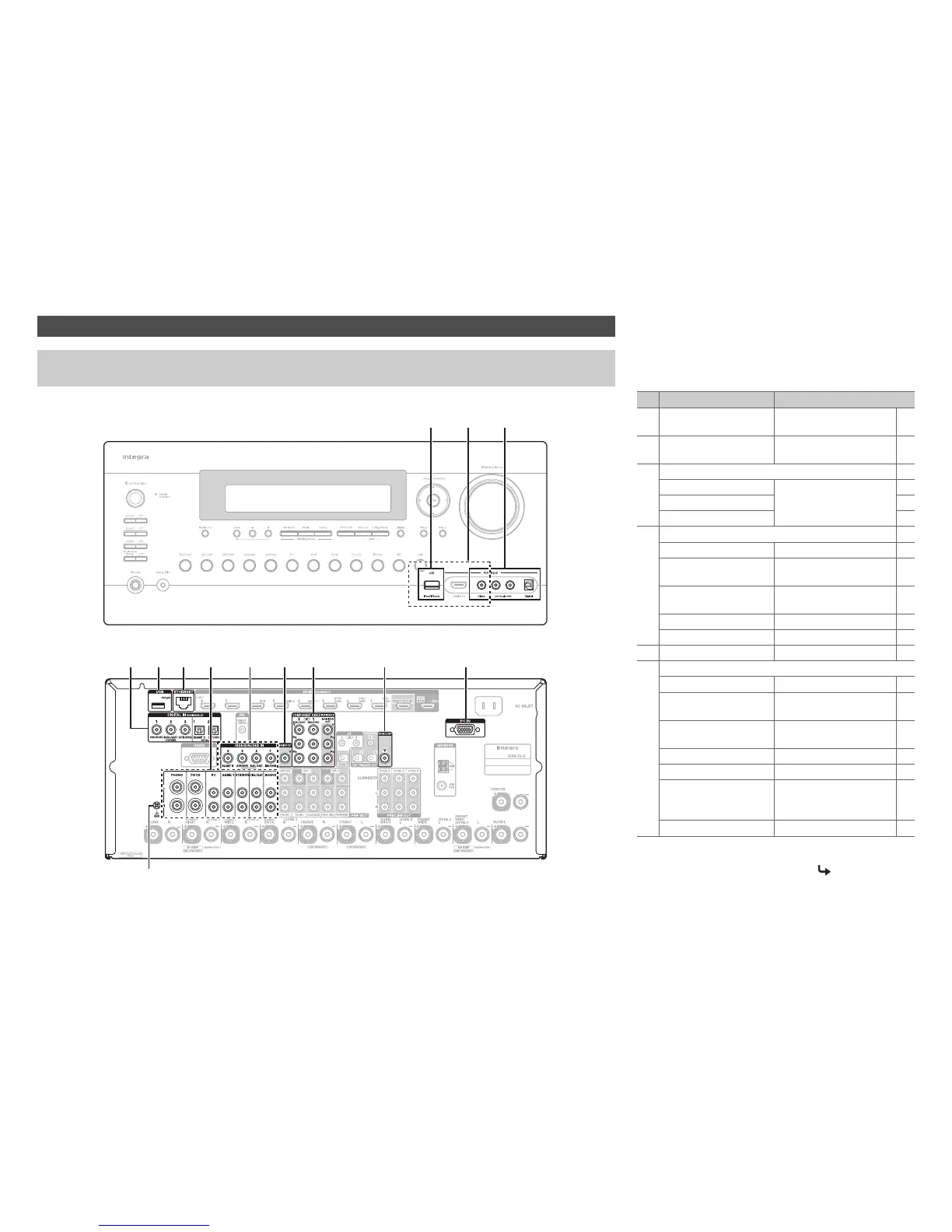

Connecting Your Components
The on-screen menus appear only on a TV that is connected to HDMI OUT MAIN. If your TV is connected to other
video outputs, use the AV receiver’s display when changing settings.
C
BA
D A E IHG KJF
GND screw
Connect your components to the appropriate jacks. The
default input assignments are shown below. See
“Connection Tips and Video Signal Path” for more
information (➔ page 108).
✔: Assignment can be changed (➔ pages 61, 62).
No. Jack/Port Components
A
USB
*1*2
iPod/iPhone, MP3 player,
USB flash drive
B
USB, AUX Input Video
*3
iPod/iPhone (video
playback)
C
AUX Input
Video Camcorder, etc
Audio L/R
Digital
D
DIGITAL IN
COAXIAL 1 (BD/DVD) Blu-ray Disc/DVD player ✔
COAXIAL 2 (CBL/SAT) Satellite/cable set-top box,
etc.
✔
COAXIAL 3 (STB/DVR) Set top box/digital video
recorder, etc
✔
OPTICAL 1 (GAME 1) Game consoles ✔
OPTICAL 2 (TV/CD) TV, CD player ✔
E
ETHERNET Router
F
AUDIO IN
BD/DVD Blu-ray Disc/DVD player
CBL/SAT Satellite/cable set-top box,
etc.
STB/DVR Set top box/digital video
recorder, etc
GAME 1 Game console, RI dock
PC Personal computer
TV/CD TV, CD player, cassette
tape deck, MD, CD-R,
Turntable
*4
, RI dock
PHONO
Turntable
*4
To be continued
