Advanced Operations
En-86
See “Multi Zone” (➔ page 79).
■ Operating on the AV receiver
Tip
• The Whole House Mode function shares the input source of main
room with Multi Zone (➔ page 51).
■ Operating on the remote controller
To control Zone 2/3/4, you must press Zone on the remote
controller first.
Zone turns red while Zone 2 is on, and green while Zone 3
is on, and amber while Zone 4 is on.
Adjusting the Volume for Zones
■ Operating on the remote controller
■ Operating on the AV receiver
If your Zone 2/3/4 speakers are connected to a receiver or
integrated amplifier in Zone 2/3/4, use its volume control
to adjust the volume.
Setting the Zone 2/3/4 Out

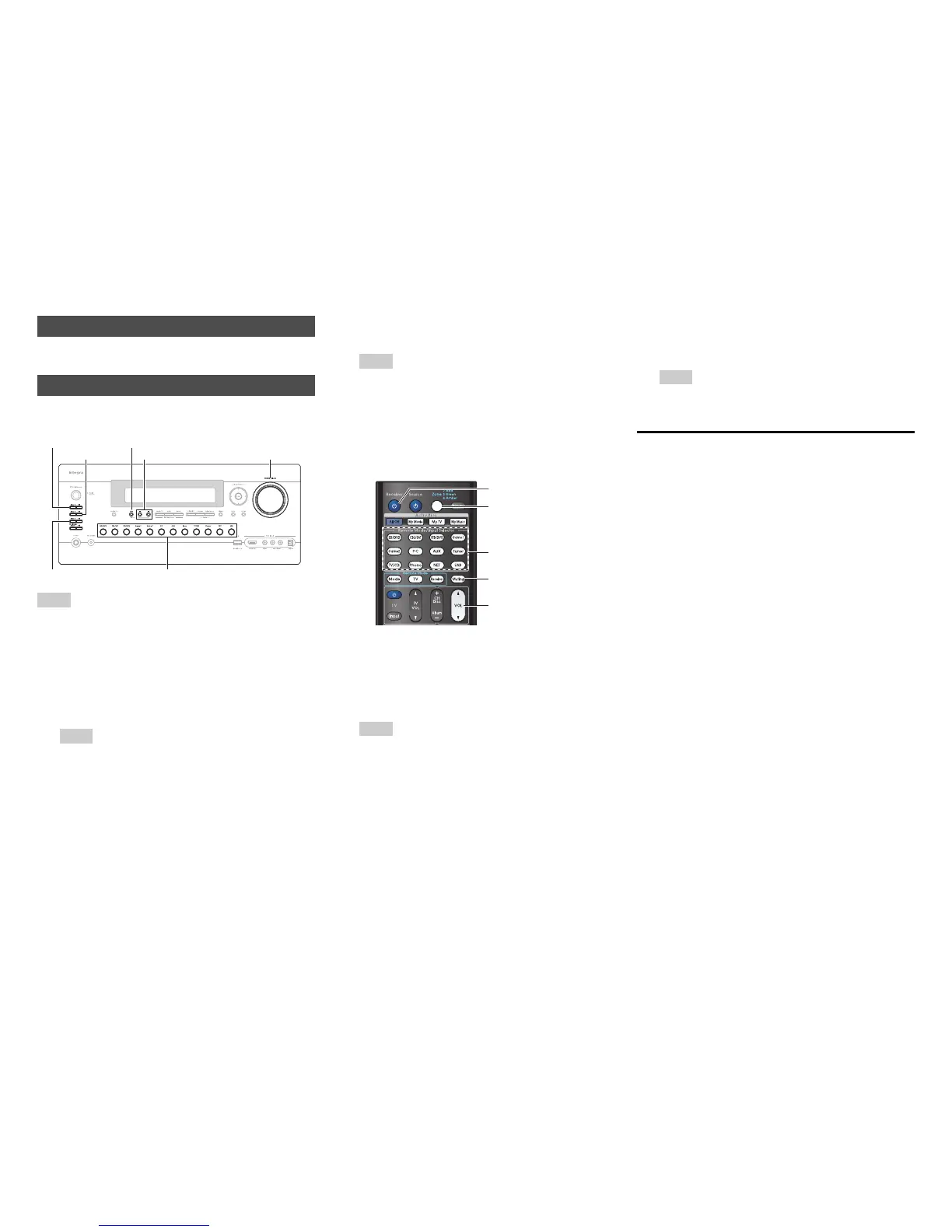

Controlling Multi Zone Components
1
To turn on Zone 2/3/4 and select an input source,
press Zone 2, Zone 3, or Zone 4 followed by an
input selector button within 8 seconds.
Zone 2/3/4 turns on, the Z2, Z3, or Z4 indicator lights
on the AV receiver’s display.
Tip
• The corresponding trigger output goes high (+12 V).
To select AM or FM, press Zone 2, Zone 3, or
Zone 4 and the Tuner input selector repeatedly.
To select the same source as the main room’s, press
Zone 2, Zone 3, or Zone 4 twice. “Zone 2
Selector: Source”, “Zone 3 Selector: Source”, or
“Zone 4 Selector: Source” appears on the AV
receiver’s display.
Input selector buttons
Zone 2, Off
Zone 3, Off
Tone
Master Volume
–, +
Zone 4, Off
2
To turn off Zone 2/3/4, press Off for each Zone.
The zone is turned off.
Tip
• The corresponding trigger output goes low (0 volts).
1
Press Zone repeatedly, then point the remote
controller at the AV receiver and press 8Receiver.
Zone 2/3/4 turns on, the Z2, Z3, or Z4 indicator lights
on the AV receiver’s display.
Tip
• The corresponding trigger output goes high (+12 V).
2
To select an input source for Zone 2/3/4, press Zone
repeatedly, followed by an Input Selector button.
To select AM or FM, press Zone and the Tuner input
selector repeatedly.
8Receiver
Muting
VOLq/w
Zone
Input selector buttons
3
To turn off Zone 2/3/4, press Zone repeatedly,
followed by 8Receiver.
The zone is turned off.
Tip
• The corresponding trigger output goes low (0 volts).
1
Press Zone repeatedly.
2
Use VOL q/w.
1
Press Zone 2, Zone 3, or Zone 4 (the Z2/Z3/Z4
indicator on the AV receiver’s display flashes).
2
Use Master Volume control within 8 seconds.
