Advanced Operations
En-85

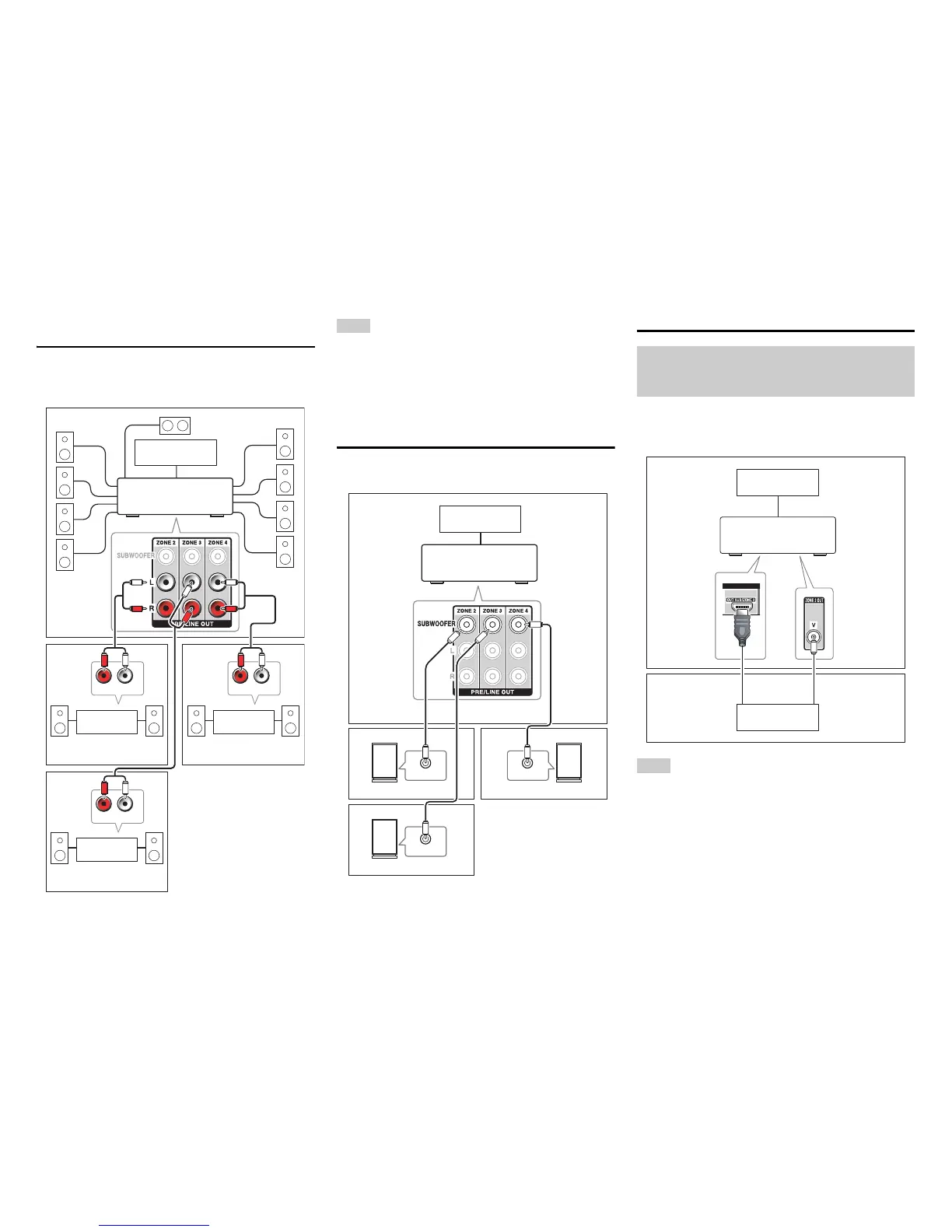

Connecting the Zone Speakers to an
Additional Amplifier
This setup allows 9.2-channel playback in your main
listening room and 2-channel stereo playback in
Zone 2/3/4.
Note
• With the default settings, the Zone 2/3/4 volume must be set on
the Zone 2/3/4 amplifier. If your Zone 2/3/4 amplifier has no
volume control, change the setting so that you can set the
Zone 2/3/4 volume on the AV receiver. See “Multi Zone”
(➔ page 79).
Connecting Powered Subwoofers in
Zone 2/3/4
This setup allows you to use powered subwoofers in
Zone 2/3/4.
Zone 2 Video Output
The AV receiver allows you to enjoy the composite video
and HDMI audio/video in Zone 2 by connecting the TV of
Zone 2 to the respective output jacks.
Note
• If you use HDMI OUT ZONE 2, make sure to set “Zone 2
HDMI” to “Use” (➔ page 59).
• Video and audio signals from an HDMI input will be output to
HDMI OUT ZONE 2.
•The ZONE 2 OUT V jack outputs video of components
connected to composite video only.
• The information of connected component appears on a TV in
Zone 2 by pressing Display.
R
L
IN
R
L
IN
R
L
IN
Main room
TV
Zone 2
AV receiver
Receiver/
integrated amp
Zone 4
Zone 3
Receiver/
integrated amp
Receiver/
integrated amp
LINE INPUT
LINE INPUT
LINE INPUT
Main room
TV
Zone 2
AV receiver
Zone 4
Powered Subwoofer Powered Subwoofer
Powered Subwoofer
Zone 3
The on-screen information appears on the TV screen
in Zone 2 by connecting the TV to HDMI OUT
ZONE 2 of the AV receiver with HDMI cable.
Main room
TV
Zone 2
AV receiver
TV
or
To Next Page
