Front & Rear Panels
For detailed information, see the pages in parentheses.
a 8On/Standby button (22)
b Hybrid Standby indicator (58)
c Monitor Out button (59)
d Remote control sensor (4)
e Tone and Tone Level buttons (54, 87)
f Display (8)
g Listening Mode buttons (41)
h Dimmer button (North American models) (50)
i Memory button (33)
j Tuning Mode button (33)
k Display button (50)
l Setup button (57)
m Tuning q/w (33), Preset e/r (33), cursor and
Enter buttons
n Return button
o Master Volume control (25)
p Zone 2/Zone 3/Zone 4 and Off buttons (86)
q Whole House Mode and Off buttons (51)
r Phones jack (52)
s Setup Mic jack (39)
t Input selector buttons (25)
u USB port (18)
v AUX Input jacks (17, 18)
w RT/PTY/TP button (Australian models) (36)

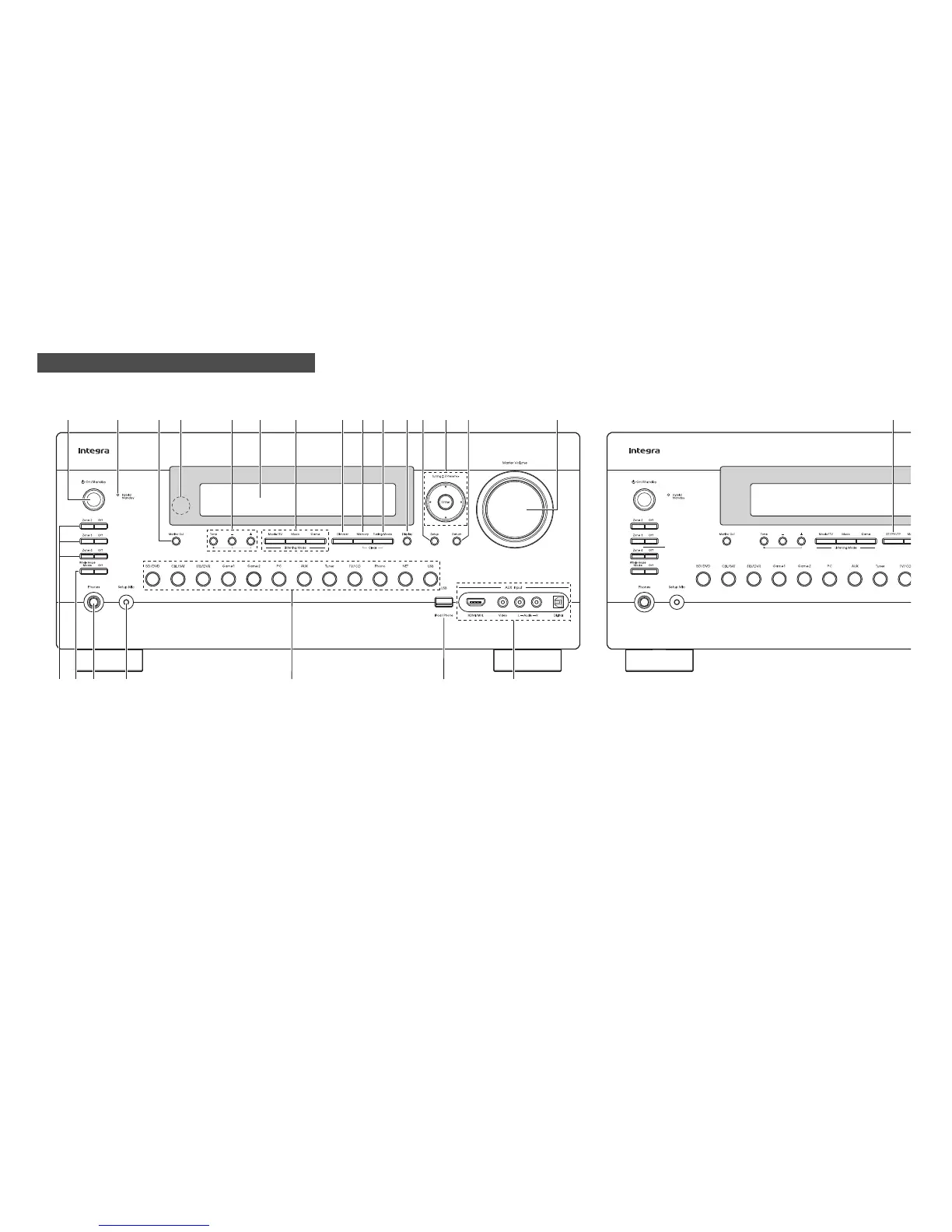

Front Panel
(North American models) (Australian models)
acedghfijkmln ob
t ur
spq
v
w
