Safety Information and Introduction
En-9
a RS232 port
Terminal for control.
b DIGITAL IN COAXIAL and OPTICAL jacks
c USB port
d ETHERNET port
e uREMOTE CONTROL jack
f HDMI IN and HDMI output (HDMI OUT MAIN and
HDMI OUT SUB/ZONE 2) jacks
g COMPONENT VIDEO IN and MONITOR OUT
jacks
h IR IN A/B and OUT jacks
i 12V TRIGGER OUT A/B/C jacks
j ZONE 2 OUT V jack
k ZONE 2, ZONE 3 and ZONE 4 L/R/SUBWOOFER
PRE/LINE OUT jacks
l MAIN/ZONE 2 FM ANTENNA jacks and
MAIN/ZONE 2 AM ANTENNA terminals
m PC IN jack
n AC INLET
o GND screw
p Composite video and analog audio jacks
(BD/DVD IN, CBL/SAT IN, STB/DVR IN, GAME 1
IN, PC IN, TV/CD IN and PHONO IN)
q MONITOR OUT V jack
r PRE OUT jacks
(FRONT L/R, CENTER, SURR L/R, SURR BACK
L/R, FRONT HIGH L/R, FRONT WIDE L/R, SW1
and SW2)
s Speaker Terminals
(FRONT L/R, CENTER, SURR L/R,
SURR BACK/ZONE 4 L/R,
FRONT HIGH/ZONE 3 L/R and
FRONT WIDE/ZONE 2 L/R)
t FM ANTENNA jack and AM ANTENNA terminal

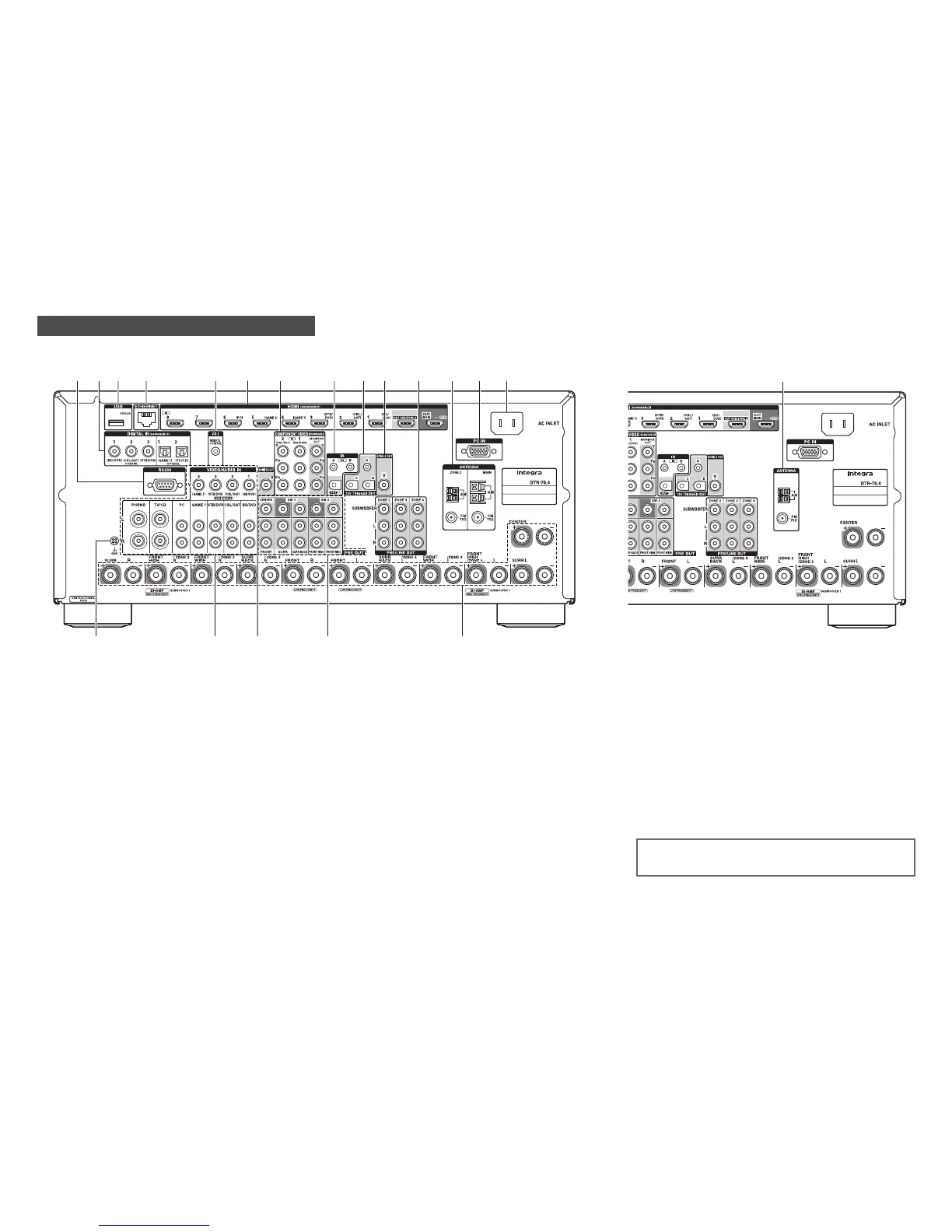

Rear Panel
(North American models) (Australian models)
g
n
k
p qsro
ih je f mla b c d
t
See “Connecting the AV Receiver” for connection
(➔ pages 11 to 21).
