Integra DTR-80.2 User Manual

10
En
Illustration is based on DTR-80.2.
North American models
a UNIVERSAL PORT jack
b IR IN (A/B) and OUT jacks
c DIGITAL IN COAXIAL and OPTICAL jacks
d USB port (DTR-80.2)
e ETHERNET port
f u REMOTE CONTROL jack
g RS232 terminal
Terminal for control.
h HDMI IN and HDMI output (HDMI OUT MAIN and
HDMI OUT SUB) jacks
i MONITOR OUT V and S jacks
j COMPONENT VIDEO IN and MONITOR OUT
jacks
k COMPONENT VIDEO ZONE 2 OUT jacks
l ZONE 2 OUT V jack
m PC IN port
n FM ANTENNA jack and AM ANTENNA terminal
o AC INLET
p GND screw
q 12V TRIGGER OUT (A/B/C) jacks
r Composite video, S-Video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT IN,
GAME IN, PC IN, TAPE IN and OUT, TV/CD IN
and PHONO IN)
s MULTI CH input jacks
(FRONT L/R, CENTER, SURR L/R,
SURR BACK L/R and SUBWOOFER)
t PRE OUT jacks
(FRONT L/R, CENTER, SURR L/R,
SURR BACK L/R, FRONT HIGH/WIDE L/R,
SW1, SW2, ZONE 2 L/R/SUBWOOFER and
ZONE 3 L/R/SUBWOOFER)
u SIRIUS antenna jack (North American models)
v Speaker Terminals
(FRONT L/R, CENTER, SURR/ZONE 4 L/R,
SURR BACK/ZONE 3 L/R, FRONT HIGH L/R,
FRONT WIDE/ZONE 2 L/R and SUBWOOFER1/
SUBWOOFER2)

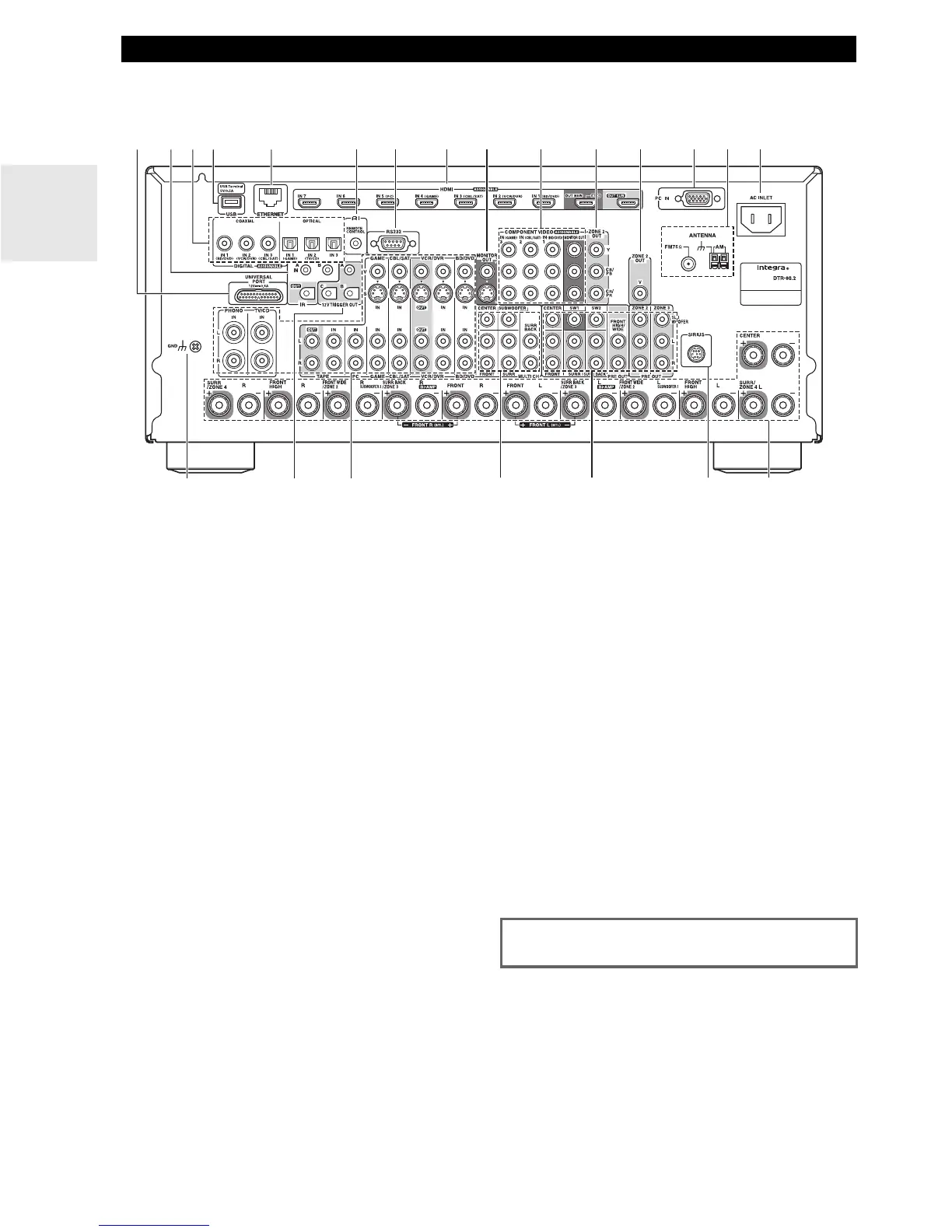

Rear Panel
ad
f
g h ji l nm
o
p
rs
t
k
e
uv
bc
q
See “Connecting the AV Receiver” for connection infor-
mation (➔ 13 to 23).
