Front & Rear Panels
The actual front panel has various logos printed on it. They are not shown here for clarity.
The page numbers in parentheses show where you can find the main explanation for each item.
a On/Standby button (➔ 24)
b Standby indicator (➔ 24)
c Zone 2 indicator (➔ 87)
d Zone 3 indicator (➔ 87)
e Zone 4 indicator (➔ 87)
f Remote control sensor/transmitter (➔ 4)
g Monitor Out button (➔ 50)
h Tone and –/+ buttons (➔ 69, 88)
i Display (➔ 9)
j Movie/TV button (➔ 42)
k Music button (➔ 42)
l Game button (➔ 42)
m Dimmer button (North American models) (➔ 25)
n Memory button (➔ 33)
o Tuning Mode button (➔ 32)
p Display button (➔ 25)
q Setup button (➔ 49)
r Tuning, Preset (➔ 32 to 33), arrow and Enter
buttons
s Return button
t Master Volume control (➔ 25)
u Zone 2 and Off buttons (➔ 87)
v Zone 3 and Off buttons (➔ 87)
w Zone 4 and Off buttons (➔ 87)
x Phones jack (➔ 28)
y Zone Level buttons (➔ 88)
z Setup Mic jack (➔ 30)

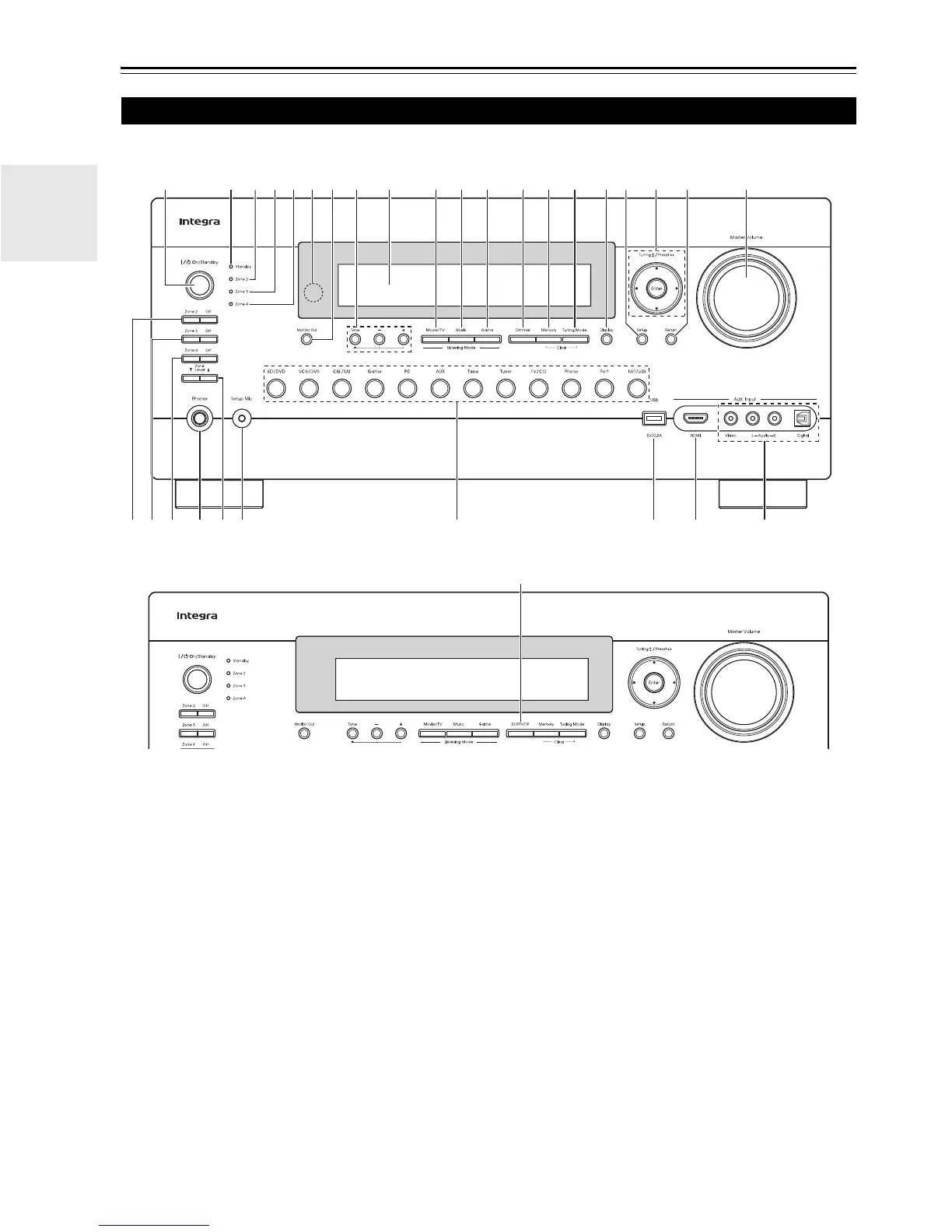

Front Panel
E
a
AC
D
b
c
dfgihjklmno pq
xu
vw z B
e
str
y
North American models
Australian models
To Next Page
