18
Chapter 2
J12, J14 – CPU, SYS Fan Power
Connectors

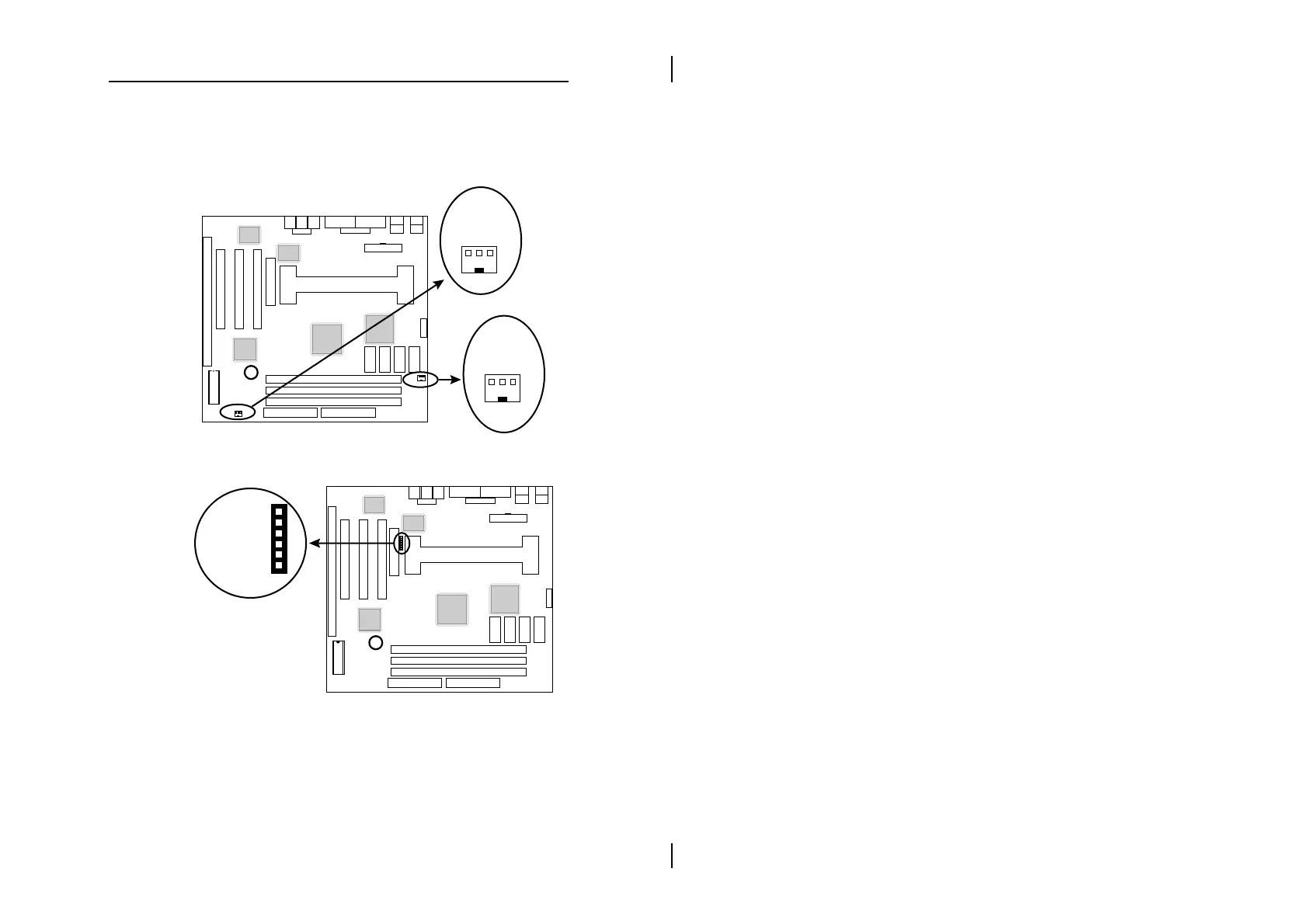

Connect CPU/System fan cables to J12 and J14. See the
following drawing for the locations on the mainboard.
+
Chipset
Sound Pro
VGA
Chipset
I/O Chip
J12
J14
Sensor
+12V
Active Low
J12
Sensor
+12V
Active Low
J14
IR – Infrared Connector
+
Chipset
Sound Pro
VGA
Chipset
I/O Chip
IR
1
1
2
3
4
5
6
5V
NC
SIR Receiver
Ground
Transceiver
CIR Receiver
IR
21
23
Table of Contents
Default Chapter
2
Table of Contents
2
Chapter 1 Introduction
5
Key Features
6
Unpacking the Mainboard & Static Electricity Precautions
9
Chapter 2: Hardware Configuration
10
Mainboard Component Locations
11
CPU Installation
12
Installation Procedures
13
CPU Speed Setting
15
Memory Installation
16
J13 - DIMM Voltage Selectors
16
Jumper Settings
17
RTC - CMOS RAM Clear Selector
17
J16 - Keyboard Power on Selector
18
ATX Functions & Connectors
18
Software Power-Off
18
Modem Ring Power-On
19
Alarm Wake up
19
Keyboard Power-On
19
CN1 Ð ATX Power Connector
19
J11 (21, 22) (PWRBT) Ð Power Button and Suspend Switch Connector
20
Connectors
20
External Connectors Loctaion
21
FDC1 - Floppy Disk Drive Connector
21
IDE1/IDE2 - Primary/Secondary IDE Connectors
21
J12, J14 - CPU, SYS Fan Power Connectors
22
IR - Infrared Connector
22
Case Connectors: J11
23
J11 (2, 4, 6) (Power LED) - Power LED Connector
23
J11 (8, 10) (KEYLOCK) - Keylock Switch Connector
23
J11 (1, 3, 5, 7) (SPK) - Speaker Connector
24
J11 (13, 14) (SP-LED) - Suspend LED Connector
24
J11 (15, 16) (HD-LED) - HDD LED Connector
24
J11 (17, 18) (RST) - Reset Switch Connector
24
J15 - Suspend Blinking LED Connector
24
Onboard Sound Pro
25
Sound and Game (on the Externals Connectors)
25
J19/J20 - Analog Audio from CD-ROM
26
J17 - Digital Audio out
27
J18 - Digital Audio in
27
Sound Pro Drivers Installation and Application
28
Chapter 3 BIOS Setup
29
Entering BIOS Setup
30
Default
30
Load Optimal Settings
30
Load Best Performance Settings
30
Setup Items
31
Standard CMOS Setup
31
Advanced CMOS Setup
33
Advanced Chipset Setup
35
Power Management Setup
38
Pci/Plug and Play Setup
41
Peripheral Setup
43
CPU Plug and Play Setup
45
Change Supervisor Password
46
Auto-Detect Hard Disks
46
Save Settings and Exit
46
Exit Without Saving
46
Chapter 4 Software Driver
47
