Intel 5400 Series

Thermal/Mechanical Reference Design
30 Quad-Core Intel® Xeon® Processor 5400 Series TMDG
Note: The thermal specifications shown in this graph are for reference only. Refer to the Quad-Core Intel®
Xeon® Processor 5400 Series Datasheet for the Thermal Profile specifications. In case of conflict, the
data information in the datasheet supersedes any data in this figure.

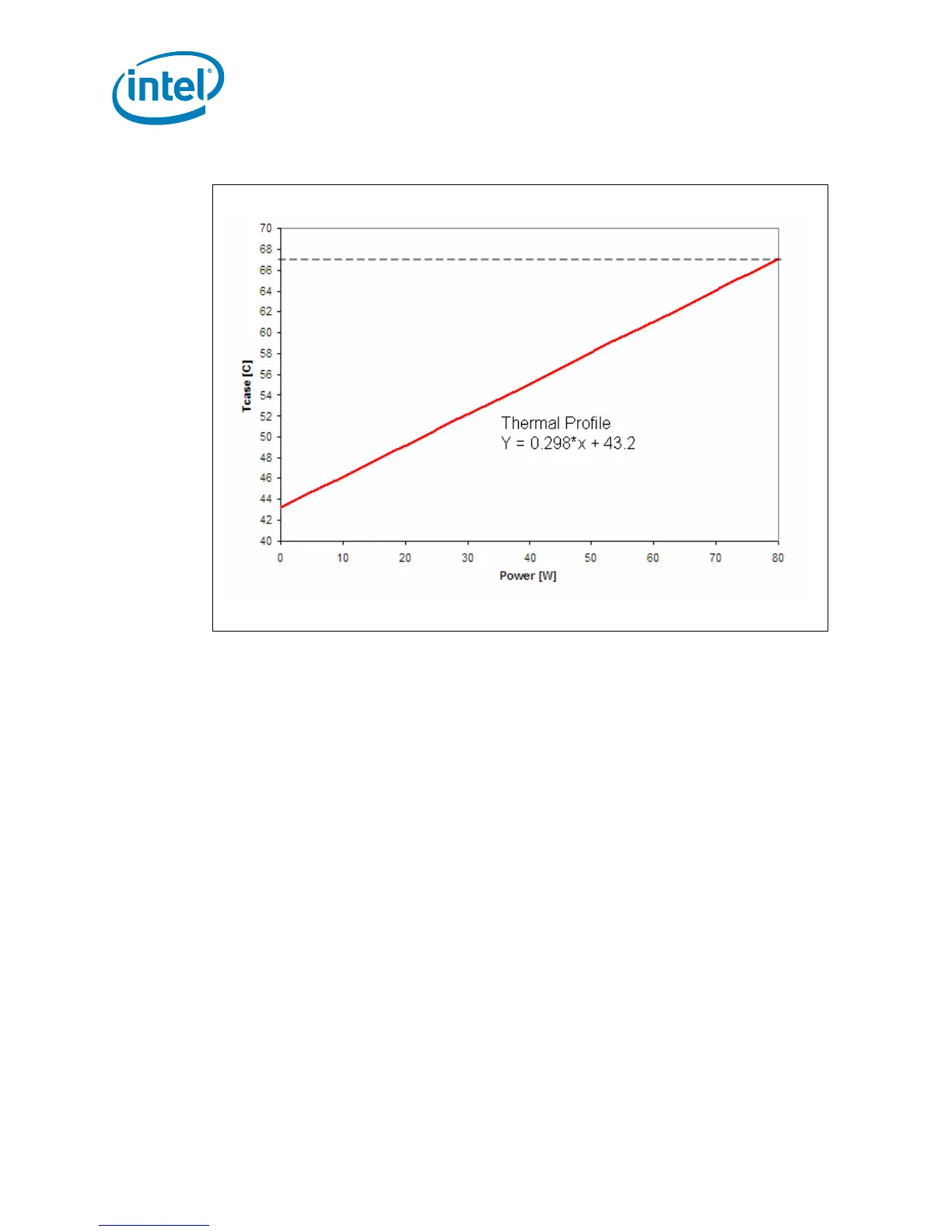

Figure 2-12. Thermal Profile for Quad-Core Intel® Xeon® Processor E5400 Series
