ARCHITECTURAL OVERVIEW

2.2.1 CPU

Figure 2-2 is a functional block diagram of the CPU (central processor unit). The 8XC251Sx

fetches instructions from on-chip code memory two bytes at a time, or from external memory in

single bytes. The instructions are sent over the 16-bit code bus to the execution unit. You can con-

figure the 8XC251Sx to operate in page mode for accelerated instruction fetches from external

memory. In page mode, if an instruction fetch is to the same 256-byte “page” as the previous

fetch, the fetch requires one state (two clocks) rather than two states (four clocks).

The 8XC251Sx register file has forty registers, which can be accessed as bytes, words, and double

words. As in the MCS 51 architecture, registers 0–7 consist of four banks of eight registers each,

where the active bank is selected by the program status word (PSW) for fast context switches.

The 8XC251Sx is a single-pipeline machine. When the pipeline is full and code is executing from

on-chip code memory, an instruction is completed every state time. When the pipeline is full and

code is executing from external memory (with no wait states and no extension of the ALE signal),

an instruction is completed every two state times.

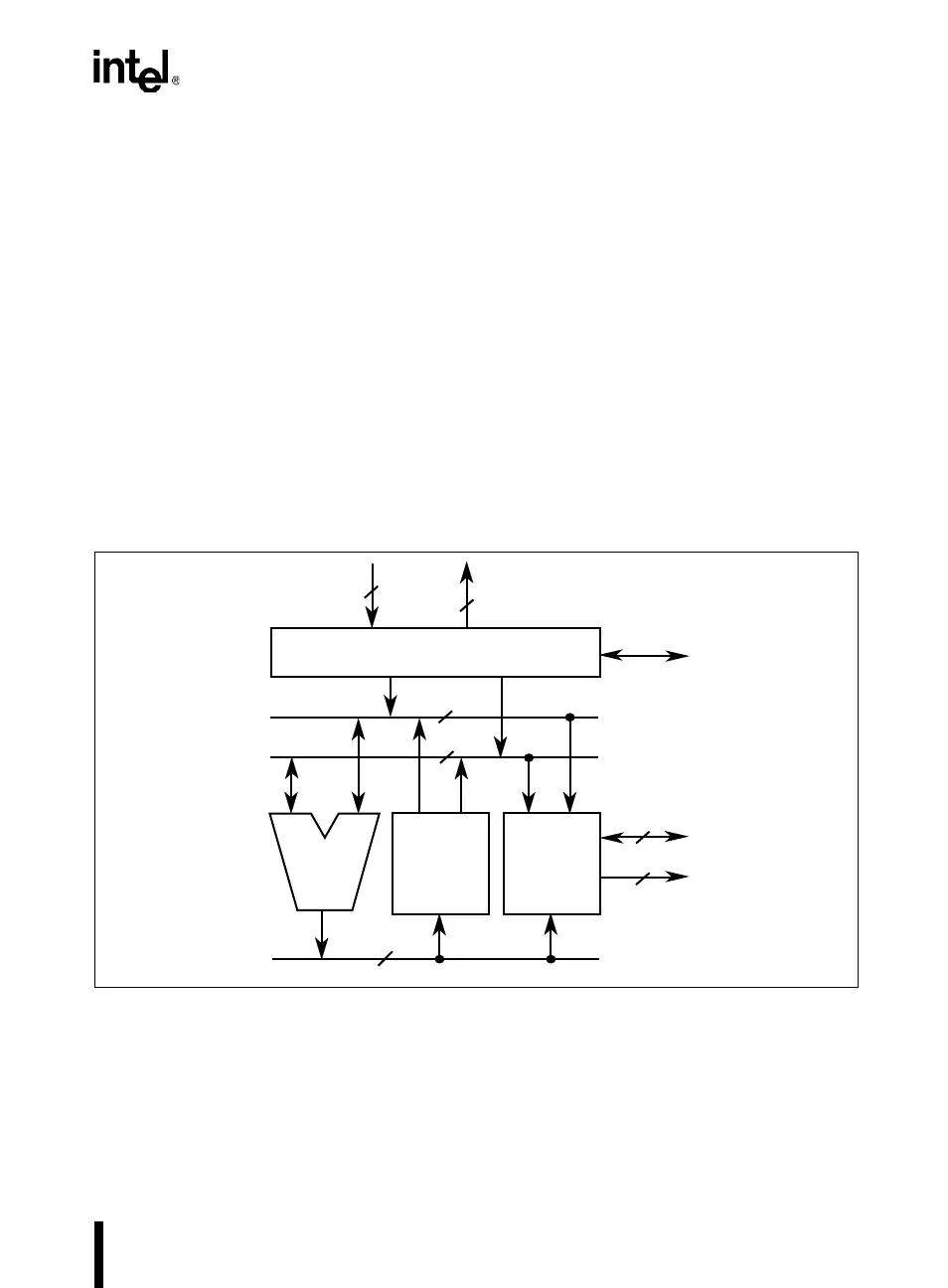

Figure 2-2. The CPU

Data

Memory

Interface

Data Bus

Instruction Sequencer

File

ALU

SRC2

SRC1

Code Address

Code Bus

DST

Data Address

Interrupt

Handler
