Intel Desktop Board D945GCCR Technical Product Specification
14
1.1.3 Block Diagram

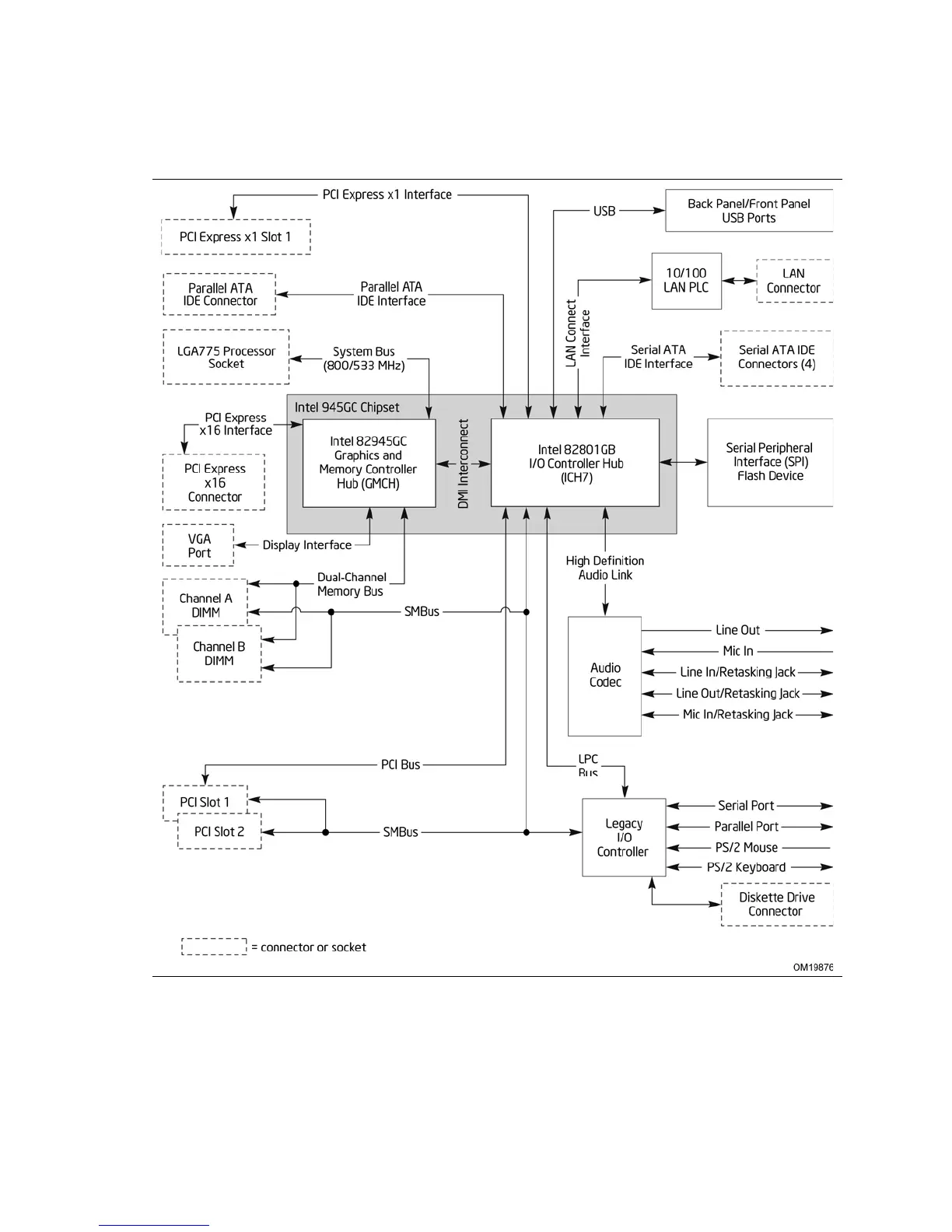

Figure 2 is a block diagram of the major functional areas.
Figure 2. Block Diagram
