Intel BLKD945GCCR - Detailed System Memory Address Map

Intel Desktop Board D945GCCR Technical Product Specification
42
The amount of installed memory that can be used will vary based on add-in cards and
BIOS settings.

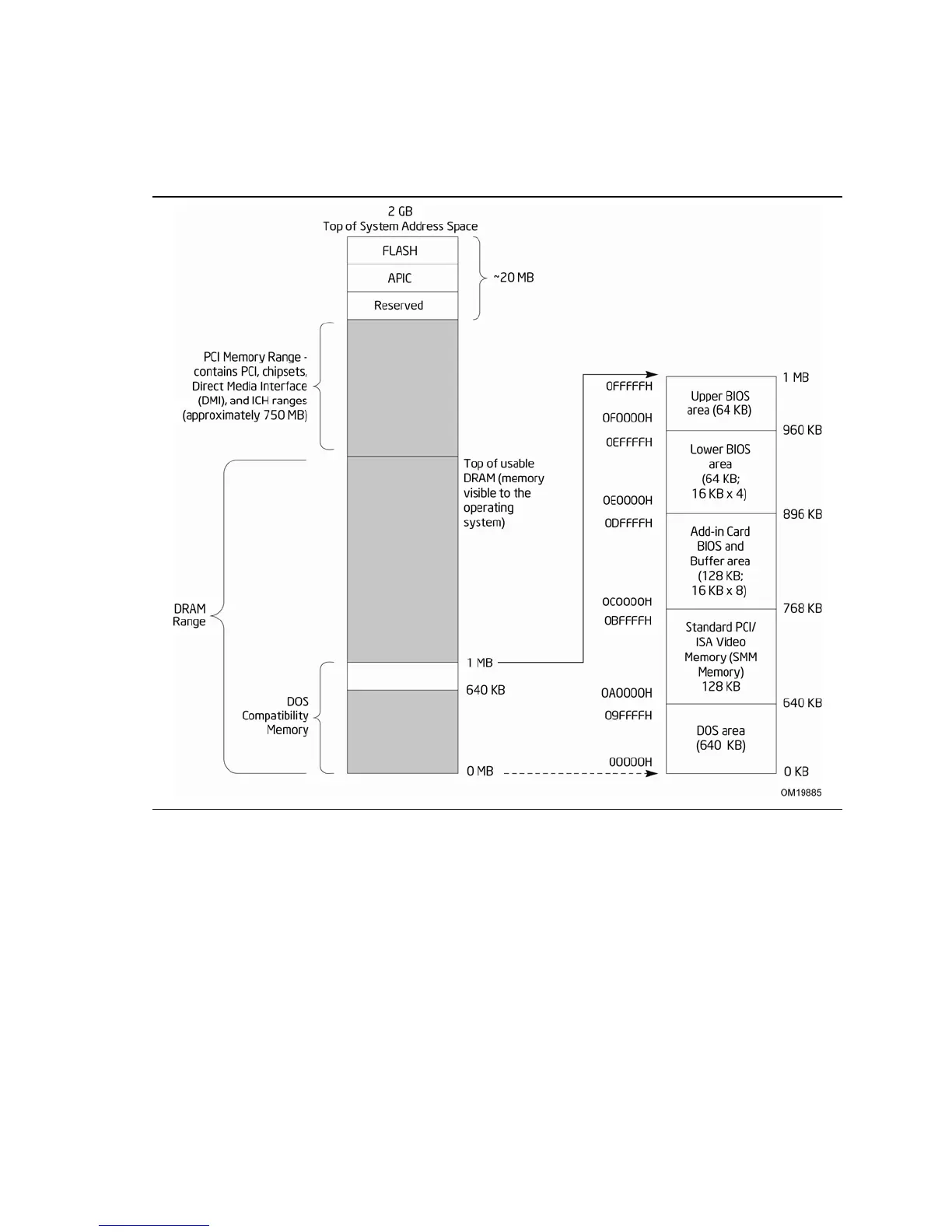

Figure 11 shows a schematic of the system memory map. All installed
system memory can be used when there is no overlap of system addresses.
Figure 11. Detailed System Memory Address Map
