Intel Desktop Board D945GCCR Technical Product Specification
20

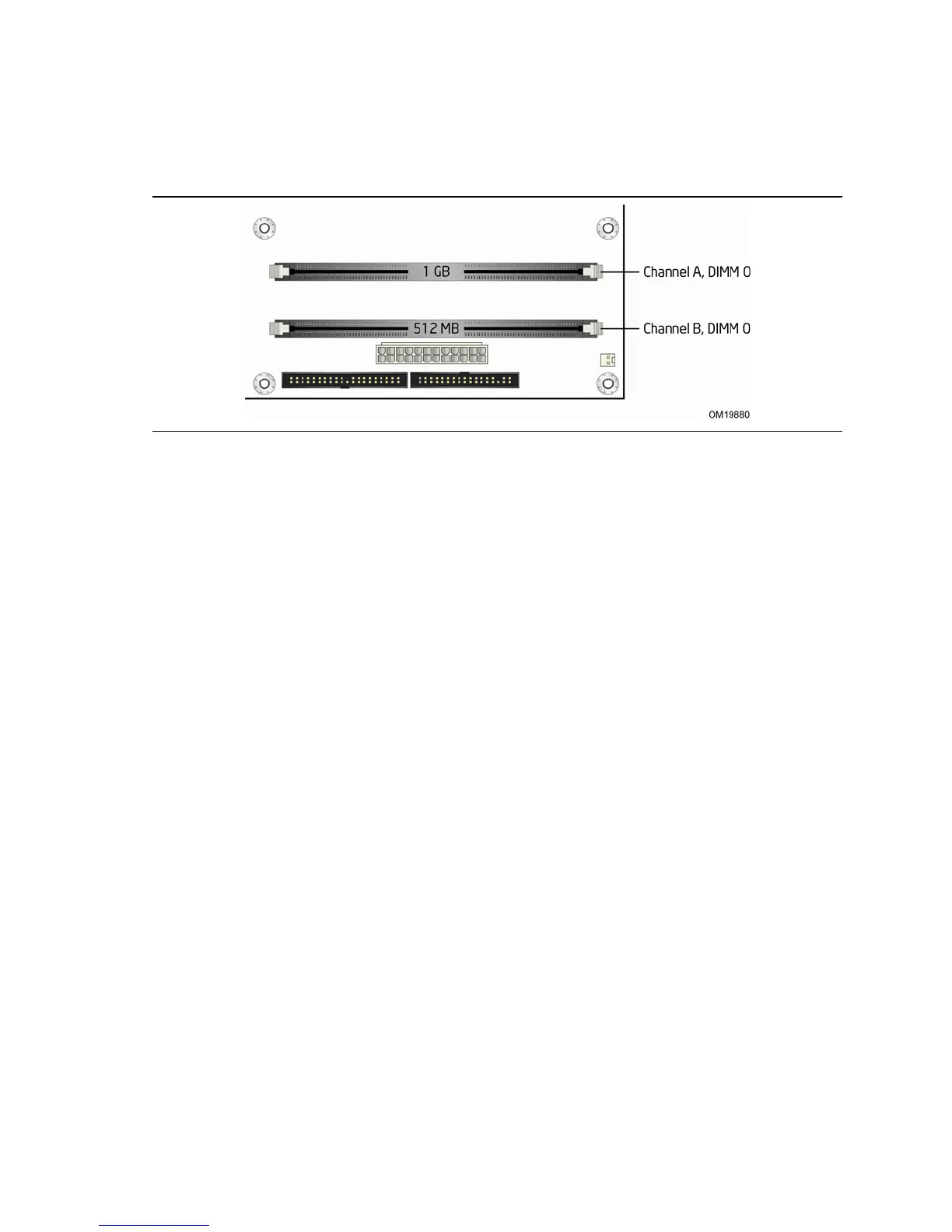

Figure 6 shows a single channel configuration using two DIMMs. In this example, the
capacity of the DIMM in Channel A does not equal the capacity of the DIMM in
Channel B.
Figure 6. Single Channel (Asymmetric) Mode Configuration with Two DIMMs
