2.7.1 Back Panel Connectors
Figure 12 shows the location of the back panel connectors.
Item Description
A PS/2 mouse port
B PS/2 keyboard port
C Parallel port
D Serial port
E VGA port
F LAN
G USB ports [4]
H Audio line in
I Mic in
J Audio line out

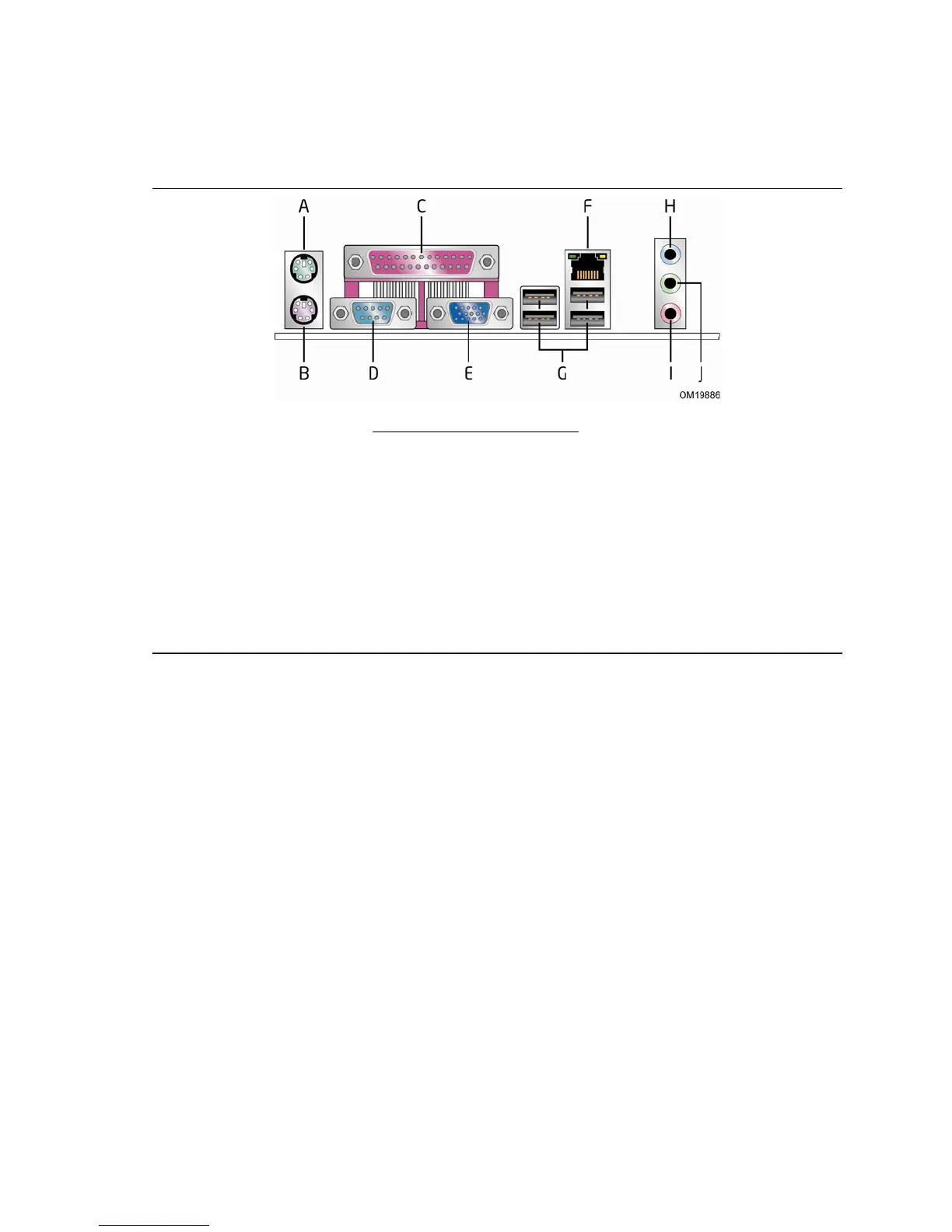

Figure 12. Back Panel Connectors
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.
