6. Attach the fan heatsink clips to the processor socket (see Figure 9).
PGA370
B
A
OM07798
A Fan Heatsink Clip
B Processor Socket

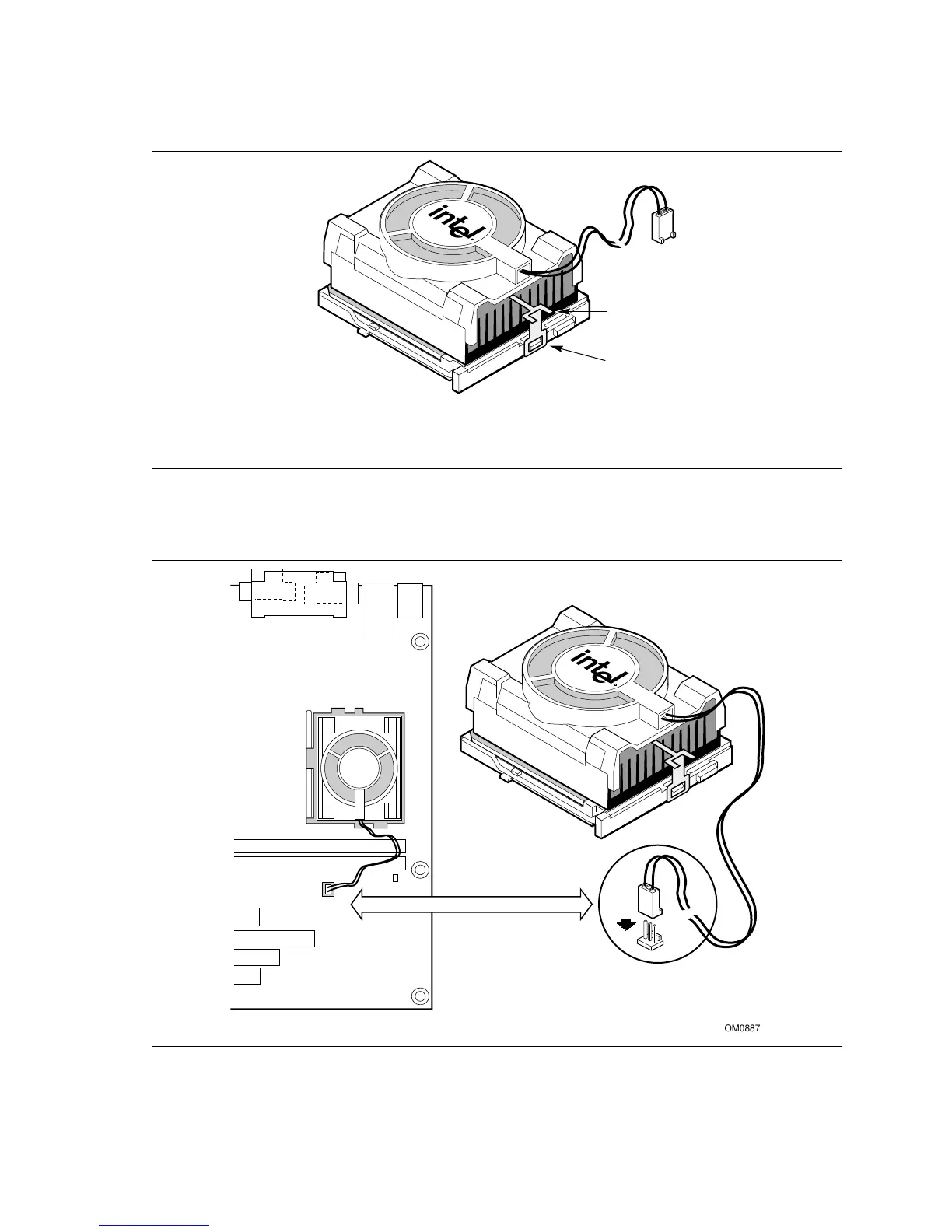

Figure 9. Attaching the Fan Heatsink Clip
7. Connect the processor fan cable to the processor fan connector (see Figure 10).
PGA370
OM08871
J7G1
J7G1
Figure 10. Connecting the Processor Fan Cable to the Processor Fan Connector
