D Processor in the 775-Land LGA Package Thermal Design Guide43
Order #303730
Heatsink Clip Load Metrology
These steps should preserve the original stack height of the heatsink assembly without affecting the
stiffness of the heatsink significantly.

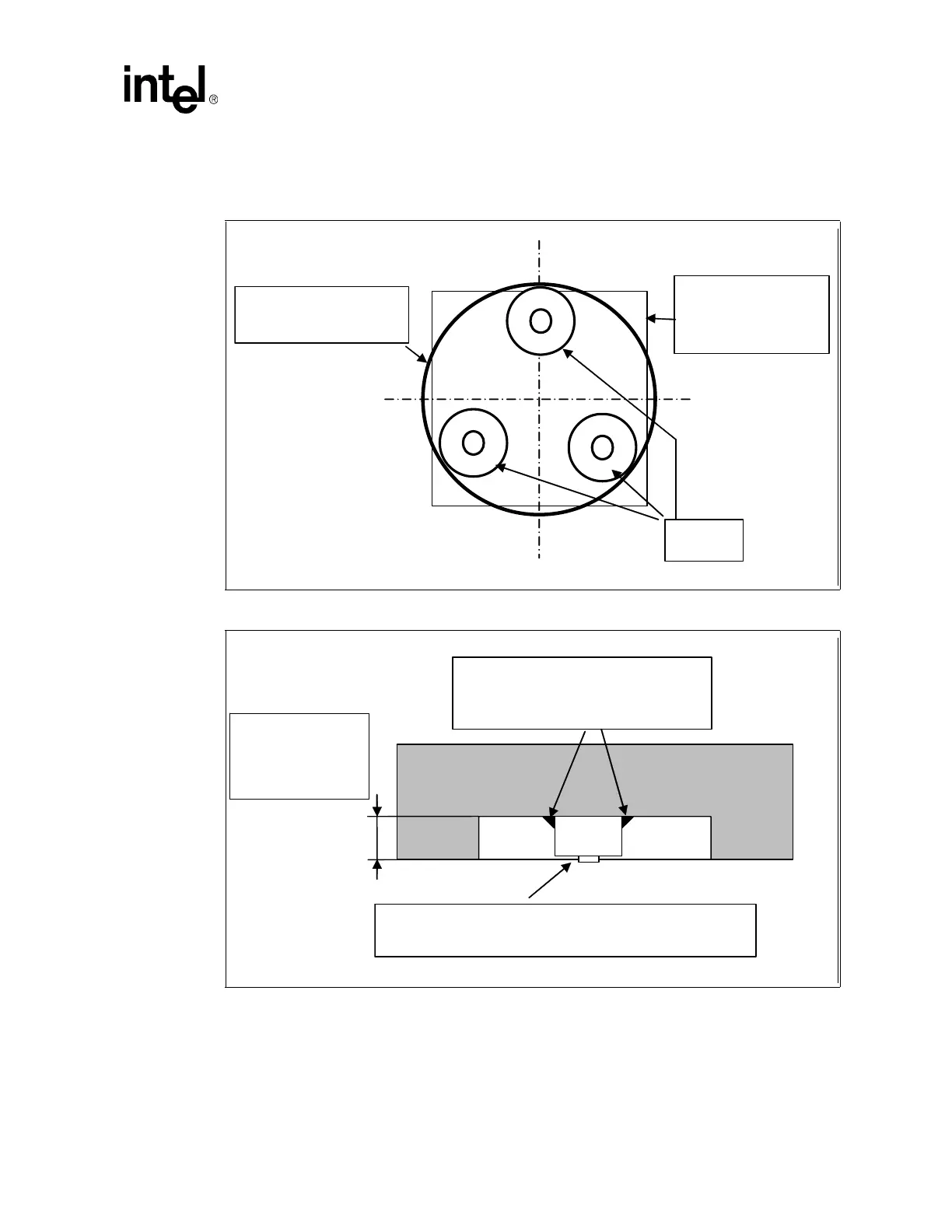

Figure 16. Load Cell Installation in Machined Heatsink Base Pocket – Bottom View
Figure 17. Load Cell Installation in Machined Heatsink Base Pocket – Side View
Package IHS Outline
(Top Surface)
Load Cells
Heatsink Base Pocket
~ 29 mm [~1.15”]
Wax to maintain load cell in position
during heatsink installation
Height of pocket ~
height of selected
load cell
Load cell protrusion
(Note: To be optimized depending on assembly stiffness)

Intel Celeron D Specifications

General

Processor Family	Intel Celeron D
Architecture	NetBurst
Number of Cores	1
Socket	LGA 775
FSB Speed	533 MHz
Operating Voltage	1.25V-1.4V
Virtualization Technology	No
Integrated Graphics	No
Core Name	Prescott
Core Stepping	D0
Clock Speed	3.6 GHz
L1 Cache	16 KB
Process Technology	90 nm
Instruction Set	SSE, SSE2, SSE3
L2 Cache	256 KB - 512 KB
