2.8.1 Back Panel Connectors

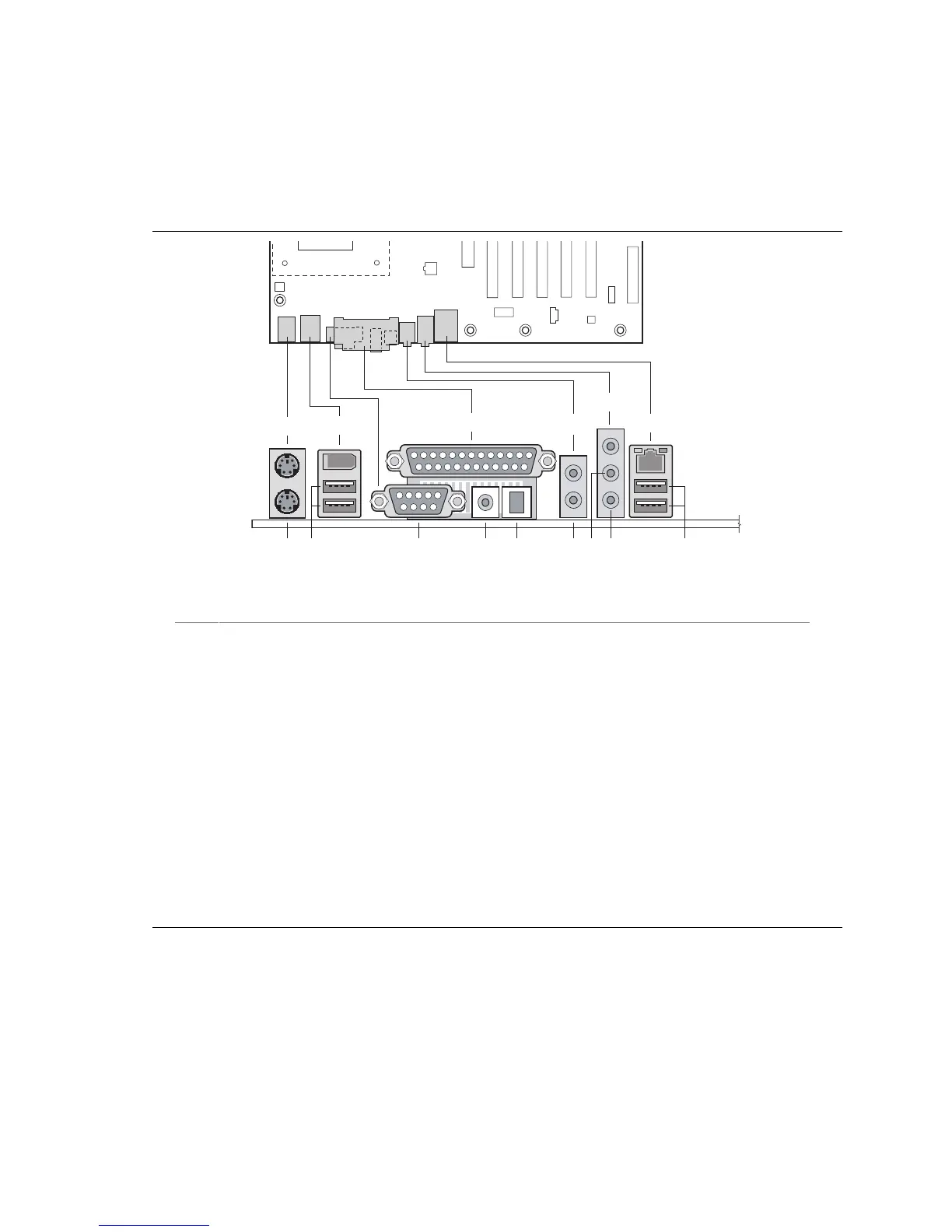

Figure 11 shows the location of the back panel connectors. The back panel connectors are
color-coded in compliance with PC 99 recommendations. The figure legend below lists the
colors used.
OM14842
A
N
F
C
D L OEB G H J M
K
I
Item Description Color
For more
information see:
A PS/2 mouse port Green Table 16
B PS/2 keyboard port Purple Table 16
C IEEE 1394a-2000 port (optional) Black Table 17
D USB ports Black Table 18
E Serial port A Teal Table 19
F Parallel port Burgundy Table 20
G Digital S/PDIF (optional) Orange Table 21
H Optical S/PDIF (optional) Black Table 22
I Audio rear left and right out (for 6-channel audio only) Black Table 23
J Audio center and LFE out (for 6-channel audio only) Black Table 24
K Audio line in Light blue Table 25
L Front left and right out (for 6-channel audio);
Audio line out (for 2-channel audio)
Lime green Table 26
M Mic in Pink Table 27
N LAN Black Table 28
O USB ports Black Table 18
Figure 11. Back Panel Connectors
✏
NOTE
The back panel audio line out connector is designed for headphones or amplified speakers only.
Poor audio quality occurs if passive (non-amplified) speakers are connected to this output.
