Intel Desktop Board D845PEBT2 Technical Product Specification
58
2.8.2.2 Power and Hardware Control Connectors
CAUTION
The processor fan must be connected to the processor fan connector, not to a chassis fan
connector. Connecting the processor fan to a chassis fan connector may result in onboard
component damage that will halt fan operation.

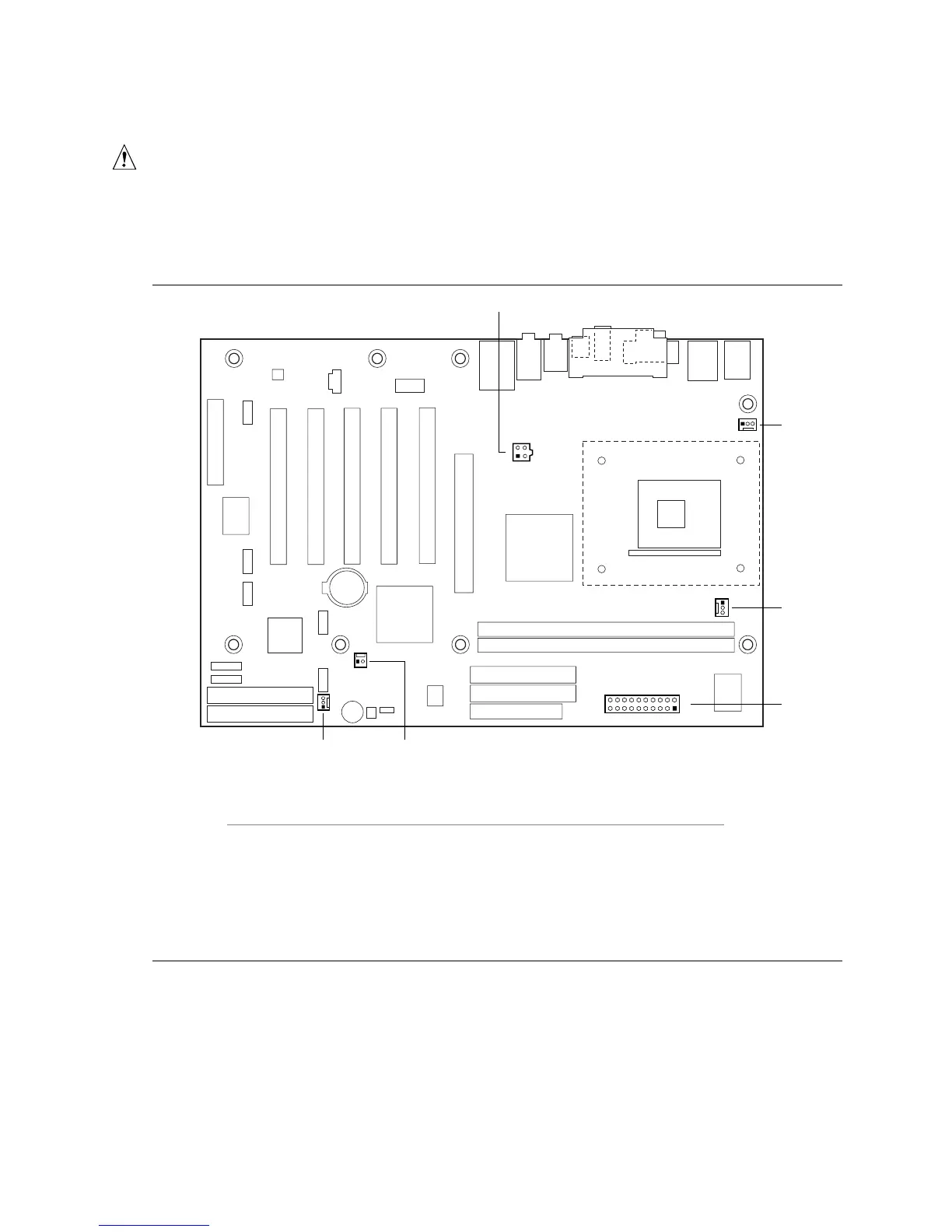

Figure 13 shows the location of the power and hardware control connectors.
OM15033
A
1
2
3
4
1
C
B
1
1
11
10
20
D
1
E
F
1
Item
Description
For more
information see:
A +12 V power connector (ATX12V) Table 30
B Rear chassis fan Table 31
C Processor fan Table 32
D Main power Table 33
E Chassis intrusion Table 34
F Front chassis fan Table 35
Figure 13. Power and Hardware Control Connectors
